Specifications
1) single screw barrel of gearbox2) 38Crmoala for screw barrel
3) high quality for screw barrel
4) bimetallic and nitriding
PRODUCT NAME:With single screw cooler gearbox for plastics processing ZLYJ
JINSHENG BRIEF:
1) Jinsheng Bimetallic Plastic Machnery Factory was established in 2004.
2) It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.
3) Include bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components
4) Apply for injection molding machine and extruder machine .
5) Sales to America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions
6) Based Material: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.

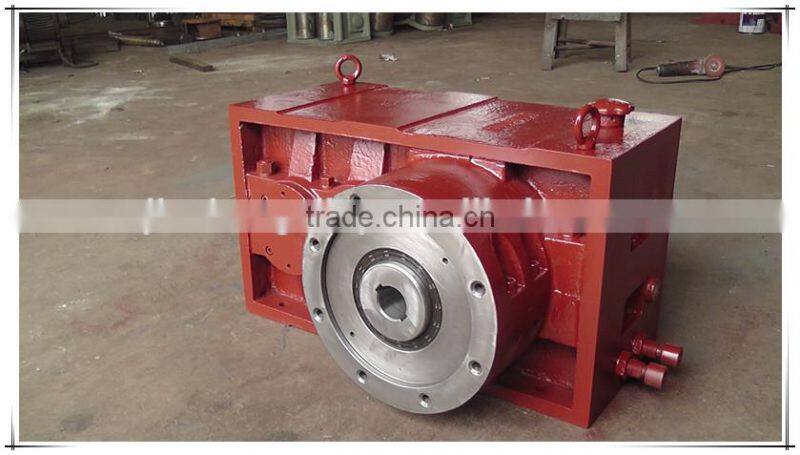

High efficiency extrusion speed reducer gearbox for single screw extruder
1) High in bearing capacity, stable in transmission, low noise, high efficiency etc.
2) The hardness of gear surface is HRC54~62.
3)The gear is processes by carburization, quenching and tooth grinding process.
Technical Parameter (For ZLYJ Series)
| Spec. | Ratio Range | Axial Thrust (KN) | Screw Diameter(MM) | Net Weight(KG) |
| 112 | 8/10/12.5 | 41 | Φ35 | 95 |
| 133 | 8/10/12.5/14/16/18/20 | 54 | Φ50 | 144 |
| 146 | 8/10/12.5/14/16/18/20 | 60 | Φ55 | 205 |
| 173 | 8/10/12.5/14/16/18/20 | 153 | Φ65 | 256 |
| 200 | 8/10/12.5/14/16/18/20 | 187 | Φ75 | 500 |
| 225 | 8/10/12.5/14/16/18/20 | 250 | Φ90 | 650 |
| 250 | 8/10/12.5/14/16/18/20 | 268 | Φ100 | 815 |
| 280 | 8/10/12.5/14/16/18/20 | 356 | Φ105.110 | 1020 |
| 315 | 8/10/12.5/14/16/18/20 | 403 | Φ120 | 1410 |
| 330 | 8/10/12.5/14/16/18/20 | 448 | Φ130.150 | 1520 |
| 375 | 8/10/12.5/14/16/18/20 | 495 | Φ150.160 | 1800 |
| 420 | 8/10/12.5/14/16/18/20 | 545 | Φ165 | 2750 |
| 450 | 8/10/12.5/14/16/18/20 | 590 | Φ165 | 3560 |

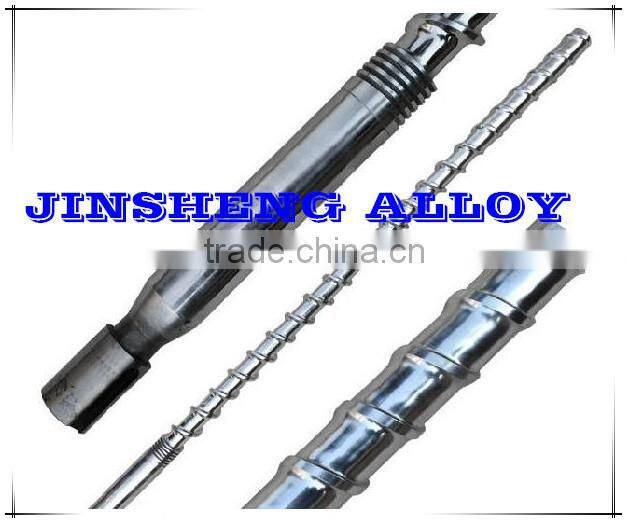

Apply for Single Screw Picture:
Apply for Material Picture:
Jinsheng are looking forward to your valuable comments and suggestions!!!
