Specifications
1) Material: 38Crmoala for parts2) Replacement for parts
3) Lowest price for parts
4) High quality for parts
Product Name: 25mm injection screw barrel spare parts for plastic PVC HDPE LDPE
1) Description:
Mould Clamping Force: 250-32000KN
Injection capacity: 15-50000g
Diameter of Screw: Diameter 15- 250mm
Screw can be mated with different heads
Barrel can be mated with different nozzle
The compression ratio of the screw can be designed according to different products and mixtures
2) Technical Parameter
| Depth of nitration | 0.5-0.8mm |
| Hardness of nitration | 950-1020HV |
| Straight of screw | 0.015MM |
| Fragility of nitration | Less than grade 1 |
| Roughness of surface | Ra 0.4um |
| Depth of alloy layer | 2-3mm |
| Hardness of alloy | HRC58-62 |
| Hardness after hardening and tempering | HB260-290 |
| Hard chrome plating thickness | 0.03-0.08mm |
| Hardness of hard chrome plating | ≥950HV |
3) Application material
*General Plastics
*ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
*PA + GF(Glass Fiber)
*Flame-resistant Reinforced Plastics
*Modified Engineering Plastics
*All kinds of Mixed Recycled Material(in Scrap or Granule),etc

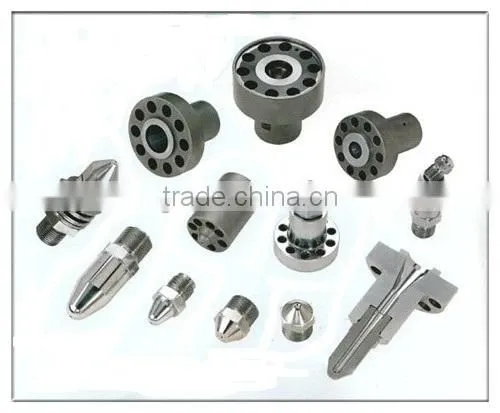

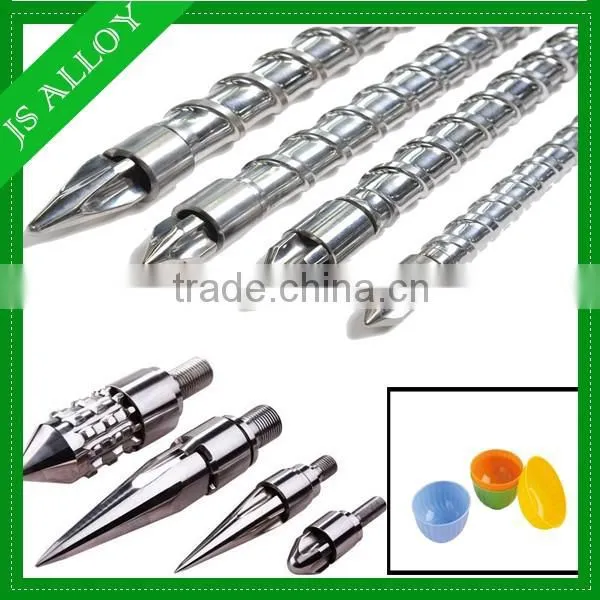

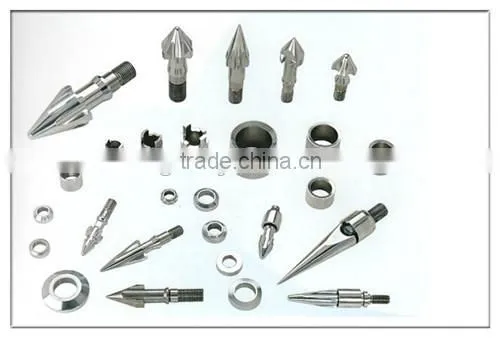

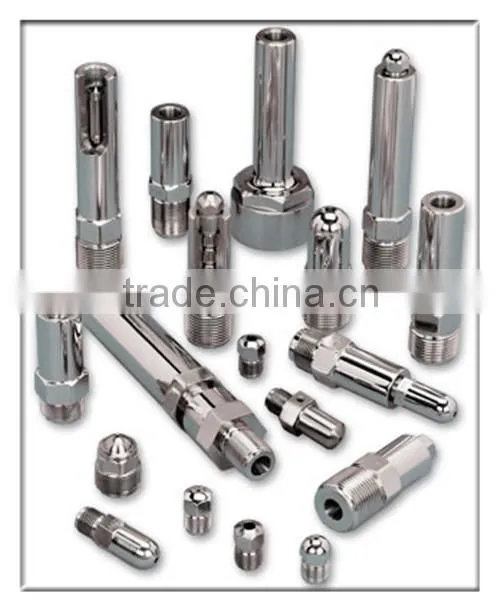

4) Screw nozzle/ components picture
5) Product Flow
Jinsheng Bimetallic is over 10 years to make the screw and barrel,our main product is Bimetallic screw and barrel,it is first company have this equipment to handle bimetallic in zhoushan.
also with conical twin screw and barrel ,parallel twin screw and barrel,single screw and barrel apply for injection molding machine and extrusion machine.
Working Shop
Jinsheng have strict system to manage the product,each one will be inspected by related inspector,all qualified can be shipment.
Packing for injection machine screw parts
1) Wooden case package
2) Plastic film package
3) Suitable to transportation
4) As buyer request
5) One piece into one package
6) Products weight and valume according to screw size
Services
1) Jinsheng can mapping the drawing to customer request
2) Screw structure and compression ratio can be designed according to different products & different clamping force requirement.
3) Jinsheng have more than 1 year guarantee
What is Jinsheng feature?
1) With high wear resistance and anti-corrosion
2) Through processing ,it can be prolong use life for screw and barrel
3) Cold and heat spraying for hard metal process
4) High-frequency quenching technology
5) Advanced nitriding technology
6) Processing and manufacturing process for Bimetallic
7) Lowest price, high quality, delivery on time
Now we export to South-east Asia, Europe, America, Middle east countries etc. At the same time, we provide the OE services for hundreds of customer for domestic market.
