Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Planer > DI-4006 Four Side Mouler

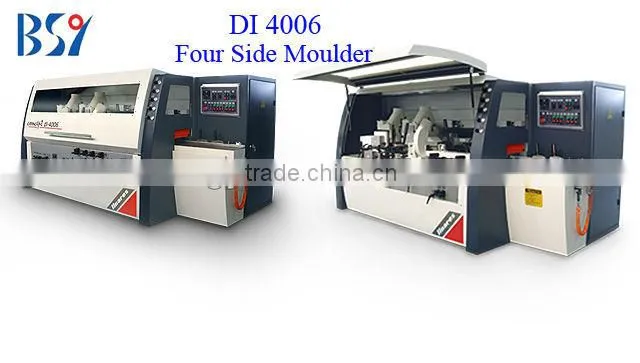

DI-4006 Four Side Mouler

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Four Side Moulder

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Four Side Moulder

Place of Origin Shandong, China

Brand Name BSY

Model Number DI-4006

Certification CE , ISO9001

Specifications

1. Processing width: 20-230mm
2. Processing thickness 6-125-150mm

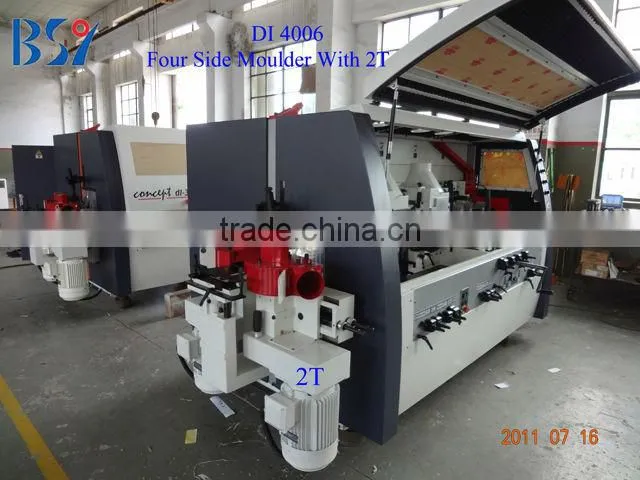

We have 5 spindles moulder , 6 spindles moulder and 7 spindlesmoulder to match different demands. You can also choose four sidesmoulder with 2T(rip saw).

Model	DI4006	DI4007
Working width (tool diameter 140mm)	20-230mm	20-230mm
Working thickness(tool diameter 140mm)	6-125-150mm	6-125-150mm
Spindle speed	6000rpm(reach to 8000)	6000rpm(reach to 8000)
Horizontal cutting diameter	125-200	125-200
Vertical cutting diameter	125-200	125-200
Blade axle diameter	40/50mm	40/50mm
Feeding speed range	5-60m/min	5-60m/min
Adjustable distance between feeding table and guide	10mm	10mm
Horizontal /vertical blade axle adjustable range	22mm	22mm
Feeding table length	1200mm	1200mm
Min. working length	228mm	228mm
Max. air pressure	6bar	6bar
Horizontal lower blade axle motor	7.5kw	7.5kw
Left vertical blade axle motor	7.5kw	7.5kw
Right vertical blade axle motor	7.5kw	7.5kw
2nd right vertical blade axle motor		7.5kw
Horizontal upper blade axle motor	15kw	15kw
2nd upper horizontal blade axle motor	11kw	11kw
2nd lower horizontal blade axle motor	7.5kw	7.5kw
Lifting motor	1.5kw	1.5kw
Feeding motor	5.5kw	5.5kw
Weight	4.2t	4.2t

Weihai Linares Machinery Co., ltd is a joint venture company of Shandong Baishengyuan Group Co., Ltd and Argentina Linares, focus on solid wood processing machines, main products Four Side Moulders, Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Bandsaw ets. With good quality and after sale services, these machines have been sale well on market, export to Asia Europe, America and other areas. If you are interested in our products ,please let me know.
