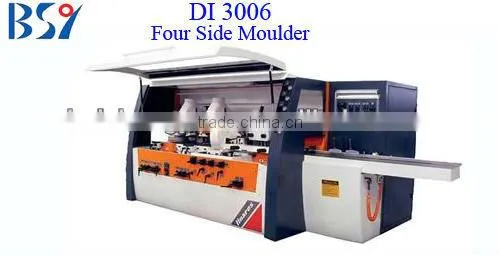

DI-3006 4 Side Moulder

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Four Side Moulder

Place of Origin:

Shandong, China

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Four Side Moulder

Place of Origin Shandong, China

Brand Name BSY

Model Number DI-3006

Voltage We can design according to your requirement

Power(W) 42.5kw

Weight 3.8T

Certification CE , ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Processing width: 20-230mm
2. Processing thickness 6-125-150mm

We have 5 spindles, 6 spindle and 7 spindles to match different demands.

Model	DI3005	DI3006	DI3007
Working width (tool diameter 140mm)	20-230mm	20-230mm	20-230mm
Working thickness(tool diameter 140mm)	6-125-150mm	6-125-150mm	6-125-150mm
Spindle speed	6000rpm(reach to 8000)	6000rpm(reach to 8000)	6000rpm(reach to 8000)
Horizontal cutting diameter	125-200	125-200	125-200
Vertical cutting diameter	125-200	125-200	125-200
Blade axle diameter	40/50mm	40/50mm	40/50mm
Feeding speed range	5-60m/min	5-60m/min	5-60m/min
Adjustable distance between feeding table and guide	10mm	10mm	10mm
Horizontal /vertical blade axle adjustable range	22mm	22mm	22mm
Feeding table length	1200mm	1200mm	1200mm
Min. working length	228mm	228mm	228mm
Max. air pressure	6bar	6bar	6bar
Horizontal lower blade axle motor	5.5kw	5.5kw	5.5kw
Left vertical blade axle motor	5.5kw	5.5kw	5.5kw
Right vertical blade axle motor	5.5kw	5.5kw	5.5kw
2nd right vertical blade axle motor			5.5kw
Horizontal upper blade axle motor	7.5kw	7.5kw	7.5kw
2nd upper horizontal blade axle motor		7.5kw	7.5kw
2nd lower horizontal blade axle motor	5.5kw	5.5kw	5.5kw
Lifting motor	1.5kw	1.5kw	1.5kw
Feeding motor	4kw	4kw	4kw
Weight	3.8 t	4.2t	4.4t
