Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Planer > Four Side Moulder Line

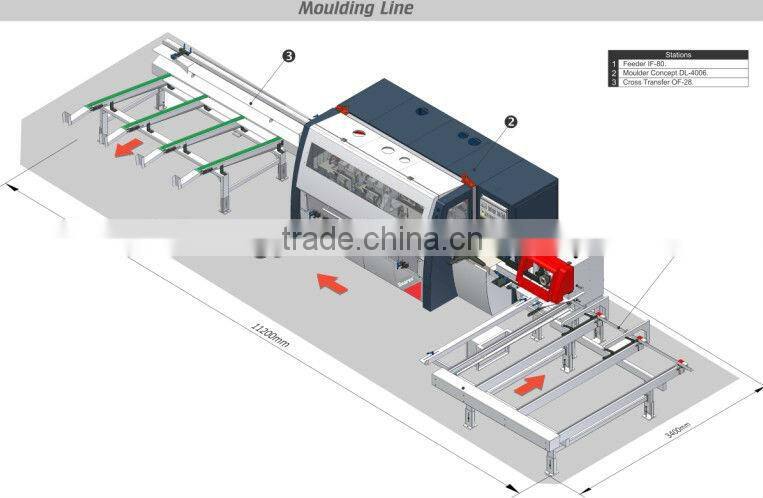

Four Side Moulder Line

Name: Four Side Moulder Line
Brand: Linares
SKU: 129154081
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Four Side Moulder

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Four Side Moulder

Place of Origin Shandong, China

Brand Name Linares

Model Number DL4006

Specifications

Since 2003 Linares brands Four Side Moulder produced here,export mainly to America areas,Europe,Austria,Janpan,etc.

TECHNICAL SPECIFICATIONS
Max. Width finished stock (tool diameter 140mm): 230mm
Min. Height finished sotck (tool diameter 200mm): 125mm
Min. /Max number of spindles: 5-10
Spindle rotation speed: 6000 rpm;8000rpm optional.
Min. Cutting circle (vertical): 110-200 mm
Feed speed range - electronically variable: 5-60 m/min
Adjustment range for bed plate and guide: 10mm

Axial movement for horizontal spindles: 22mm
Feed rolls diameter: 140mm
Max. Pneumatic pressure: 6bar
Entrance table length: 2m
Min. Stock length (with grooved bed plate): 228mm
Cardan drive system
Receding chipbreaker in front of top spidle
Upper and lower driven feed rolls at the entrance
Bed plates exchangeable and adjustable to tool
Central panel with contactors thermics protections
Automatic oil pump
Full sound and safety enclosure

more linares soild woodworking machine welcome visit web pages
POWER INSTALLED
Bottom horizontal: 7.5 HP
Left verticals: 7.5 HP
Right vertical: 7.5 HP
Top horizontal: 10 HP
2ND Top horizontal: 10 HP
2ND Bottom horizontal: 7.5 HP
Universal: 7.5 HP
Bridge movement (up/down): 2HP
Feed rolls: 5.5 HP

OPTIONALS
Extra top feedroll device
Pneumatic clutch
Increase Higher motor capacity
Double vertical splitter saw
