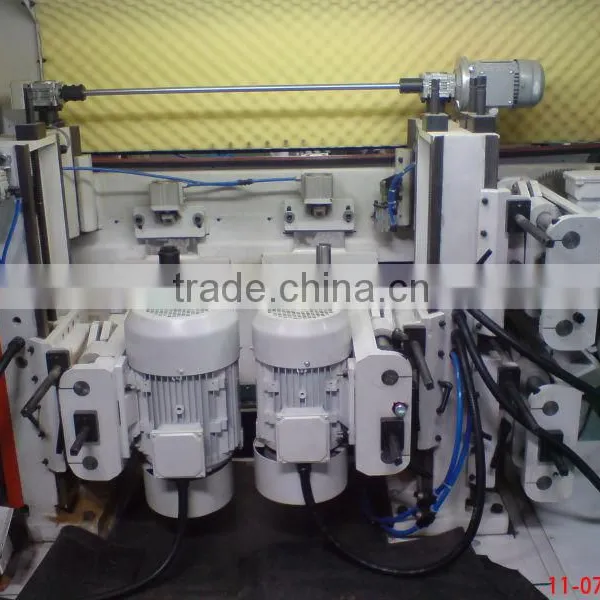

Name: double end tenoner/wood milling/double end milling
Type:FMD8830
Technical Data
Model
Working size
OD for tools
ID for tools
Length
Thickness
Scoring saw
Cut-off
saw
Milling cutters
Scoring saw
Cut-off
saw
Milling cutters
FMD8820
250~2000
6~80
Ø 200
Ø 305
Ø 125~ Ø 180
Ø25.4
Ø 35
Ø40
FMD8825
250~2500
FMD8830
250~3000
Motor power
Feeding speed
Weight( Tons approx)
Size (L×W×H) mm
Scoring
saw
Cut-off saw
1# Milling cutter
2# Milling cutter
2.2KW
4/5.5KW
4KW
5.5KW
5~25m/min
5.4T
3880×3300×1800
5.7T
4380×3300×1800
6T
4880×3300×1800
Options:
1. Lengthen convey belt extend machine cover 1100mm.
2. Adopted Digital controlled system, servo motor for feeding and widen.
3. Jumping device for scoring saw
4. Electrical centralized lubricant system.
5. Inverter motor for cut-off saw, rotation speed can up to 4500r/min.
6. CE norm
Advantage
1. Electrical movement for the pressure belt with the pneumatic locked and controlled by digital positioner.
2. Machine base is processed by big CNC machine, over 1300mm width. Two high precision linear orbits are assembled and with steel dusty proof to protect.
3. All the tools with protection cover. Under the saws, there has over 400mm width 90° dust collector, easy to clean.
4. With the special location locked system and the little fence against the work pieces just with the surface, so it will not leave pressed mark in the work pieces.
5. High speed spindle (8000r/min)
6. High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing
