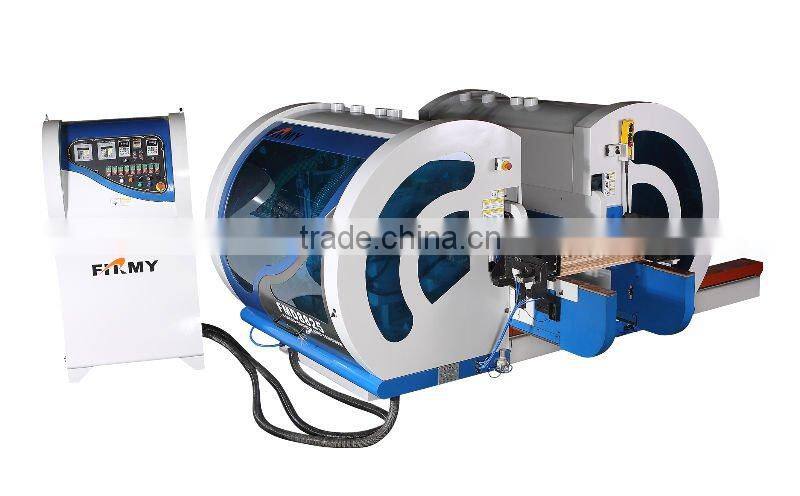

Help CenterPLC High Speed Double End Saw
Related Products
-
Double End TenonerNegotiableMOQ: 1 Set -
Wood Working Machine & CE Certification Double End TenonerUS$ 1,000 - 400,000MOQ: 1 Set
-
Flooring Process Machine Ouble End Tenoner FMM8820US$ 1,000 - 400,000MOQ: 1 Set
-
Double End Tenoner & Grooving Making MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
CE Norm FMM8825 Double End Tenoner MachineUS$ 1,000 - 350,000MOQ: 1 Set
Double end tenoner
We are the manufacture of this machine,can provide you good quality with good price,feel free to contact us.
If you need the video of this machine,feel free to contact it.
Double End Tenoner

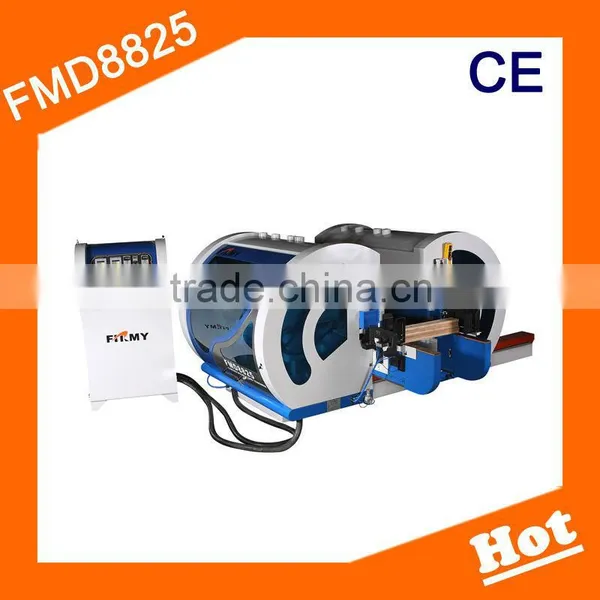

Model:FMD8825
Specification |
Model |
||
FMD8825 |
FMD8820 |
||
Working size |
Working Length |
250-2500 |
250-2000 |
Working Thickness |
6-80 |
||
OD for tools |
Scoring saw |
Φ200 |
|
Cut-off saw |
Φ305 |
||
1st Milling Cutter |
Φ125-Φ180 |
||
2nd Milling Cutter |
Φ125-Φ180 |
||
ID for tools |
Scoring saw |
Φ25.4 |
|
Cut-offer saw |
Φ30 |
||
Milling Cutter |
Φ40 |
||
Motor Power |
Scoring saw |
2.2kw |
|
Cut-offer saw |
7.5kw |
||
1st Milling Cutter |
7.5kw |
||
2nd Milling Cutter |
7.5kw |
||
Feed speed |
5-25m/min |
||
Milling Cutter speed |
8000r/min |
||
Saw speed |
3000r/min |
||
Total Motor |
38kw |
35kw |
|
Dust outlet diameter |
100mm*6pc |
||
Weight |
5.7T |
5.4T |
|
Size(L*W*H) |
4380*3300*1800 |
3880*3300*1800 |
|
Advantage
1)Machine base is processed by big CNC machine, over 1300mm width. Two high precision linear orbits are assembled and with steel dusty proof to protect.
2)High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing.
3)With the special location locked system and the little fence against the work pieces just with the surface, so it will not leave pressed mark in the work pieces.
OPTIONS
1.Lengthen convey belt extend machine cover 1000mm
2.Adoptde Digital controlled system,servo motor for feeding and widen.
3.Jumping device for soring saw
4.Electrical centralized lubricant system.
5.Inverter motor for cut-off saw,rotation speed can up to 4500r/mine.
6.CE norm
