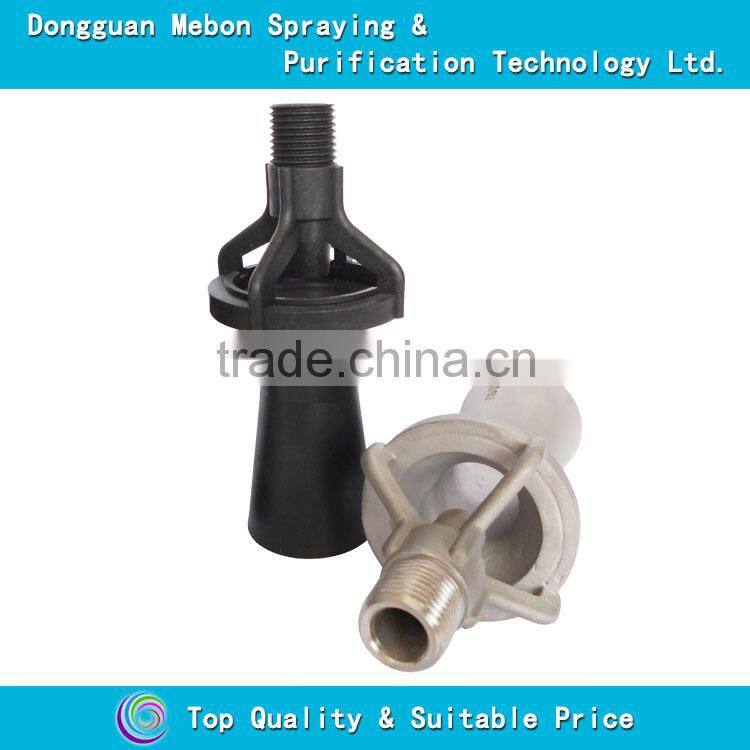

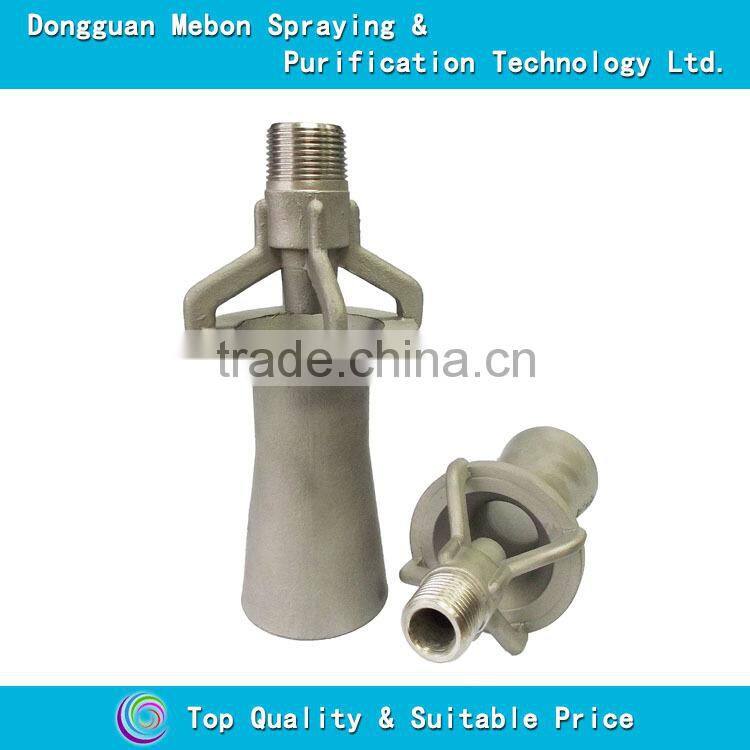

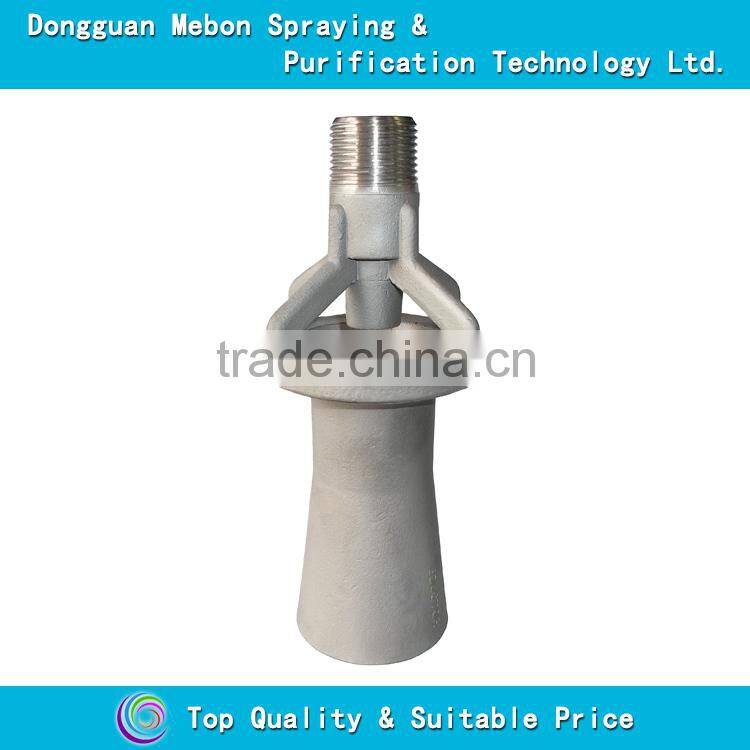

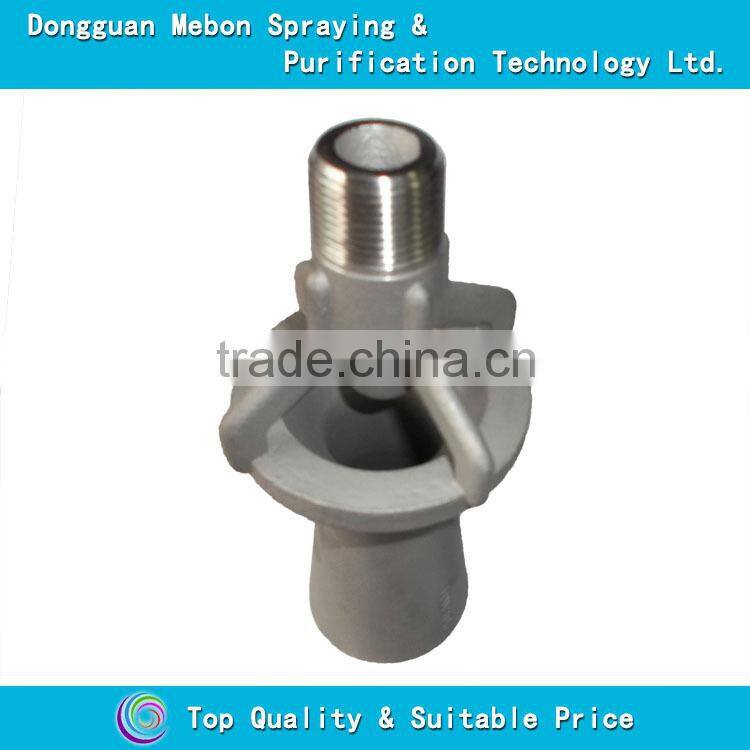

male thread tank eductor,316 stainless tank nozzle,mixing liquid eductor
Product description
* Nozzle Materials: Carbon fiber reinforced plastics or SS316.
* Nozzle Structure: one-piece construction without internal parts.
* Spray Patterns: Mixing liquid jet eductor.
* Pressure Range: 1 to 4 bar (20 to 127 L/min).
* Thread Size: 1/4", 3/8", 1/2", 3/4" BSPT.
Mixing liquid eductors are used to agitate or mix liquids stored in tanks, pits, or sumps.Mixing Eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution.Designed on the basis of the Bernoulli theory, fluid under pressure is pumped into the nozzle through its large flow opening.
Proformance data
| Entrance diameter | Flow properties | Entrance pressure | |||||||
| 0.5BAR | 1BAR | 1.5BAR | 2BAR | 2.5BAR | 3BAR | 3.5BAR | 4BAR | ||
| 1/4" | Storage flow (L / min) "A" | 11.3 | 16 | 19.5 | 23 | 25 | 28 | 30 | 32 |
| 3/8" | 29 | 42 | 51 | 59 | 65 | 70 | 77 | 82 | |
| 1/2" | 36 | 53 | 62 | 72 | 83 | 88 | 97 | 103 | |
| 3/4" | 43 | 64 | 74 | 85 | 97 | 106 | 116 | 124 | |
| 1/4" |
Supplementary volume (L / min) "B" |
42 | 59 | 72 | 84 | 93 | 102 | 110 | 118 |
| 3/8" | 116 | 168 | 204 | 236 | 260 | 280 | 308 | 328 | |
| 1/2" | 131 | 212 | 251 | 288 | 324 | 352 | 386 | 421 | |
| 3/4" | 172 | 256 | 298 | 340 | 388 | 424 | 464 | 496 | |
| 1/4" |
Cyclic Total (L / min) "A" + "B" |
53.3 | 75 | 91.5 | 107 | 118 | 130 | 140 | 150 |
| 3/8" | 145 | 210 | 255 | 295 | 325 | 350 | 385 | 410 | |
| 1/2" | 180 | 265 | 313 | 360 | 405 | 440 | 482 | 515 | |
| 3/4" | 215 | 320 | 370 | 425 | 485 | 530 | 580 | 620 | |
| 1/4" | Effective range (m) | 0.91 | 1.5 | 2.1 | 2.6 | 3 | 3.7 | 4.3 | 5.2 |
| 3/8" | 1.2 | 1.8 | 2.4 | 3 | 3.7 | 4.3 | 4.9 | 6.7 | |
| 1/2" | 1.3 | 2.1 | 3 | 3.6 | 4.5 | 5.2 | 6.4 | 8.6 | |
Factory
Workshop
Packaging
Why Mebon?
1. Sufficient support for our representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support
7. Nozzle solutions to your particular requirements.
8. Sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
