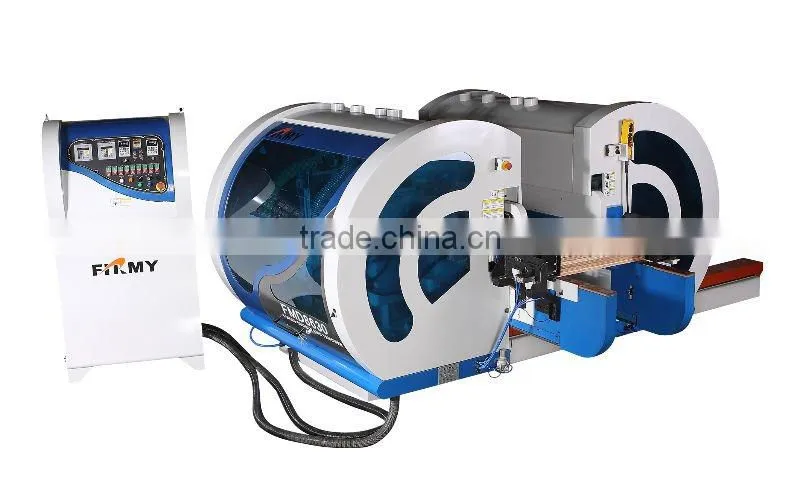

Help CenterFMD8630 6-spindle Double Ended Tenoner Machine
Related Products
-
PLC FMD8830 High Speed Double Side PlanerUS$ 1,000 - 400,000MOQ: 1 Set -
PLC Text Control FMD8825 Double Side Tenon MachineUS$ 1,000 - 400,000MOQ: 1 Set
-
Wood Working Machine & Double End TenonerUS$ 1,000 - 400,000MOQ: 1 Set
-
8 Spindle for 3m Double End TenonerNegotiableMOQ: 1 Set
-
FMD8825 Double End Tenoner MachineNegotiableMOQ: 1 Set
Specifications
1. FMD8630 6-spindle Double Ended grooving Machine2.wood working machine
3.PLC test and encoder controled system
Double end tenoner machine
Double end grooving machine
FMM8630
I. Description
For D86 series double end tenoner, it is suitable to process the cutting and grooving in flooring, doors, furniture etc fields. The machine base is processed in large CNC machine. Two high precision linear orbits are assembled to assure the stable movement as well. To keep good performance, machine is widened by servo motor system. All the electric components are adopted international brands to assure stable and excellence performance.
II. Specification:
Specification |
Model |
||
FMD8630 |
FMD8625 |
||
Working size |
Working Length |
250-3000 |
250-2500 |
Working Thickness |
6-80 |
||
OD for tools |
Scoring saw |
Φ200 |
|
Cut-off saw |
Φ305 |
||
1st Milling Cutter |
Φ125-Φ180 |
||
------------- |
----------------- |
||
ID for tools |
Scoring saw |
Φ25.4 |
|
Cut-offer saw |
Φ30 |
||
Milling Cutter |
Φ40 |
||
Motor Power |
Scoring saw |
2.2kw |
|
Cut-offer saw |
5.5kw |
||
1st Milling Cutter |
5.5kw |
||
-------------------- |
---------------------- |
||
Feed speed |
5-25m/min |
||
Milling Cutter speed |
8000r/min |
||
Saw speed |
3000r/min |
||
Total Motor |
30kw |
30kw |
|
Dust outlet diameter |
100mm*6pc |
||
Weight |
5.8T |
5.5T |
|
Size(L*W*H) |
4880*3300*1800 |
4380*3300*1800 |
|
III. Advantage
1. All the tools are with protection cover. Under the saws, there is over 400 width 90 degree dust collector, which is easy to clean.
2. Electrical movement for the pressure belt with the pneumatic locked and controlled by digital positioner.
3. Machine base is over 1300mm width with high precision linear orbits and with steel dusty proof to protect the orbits.
4. High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed precessing.
5. With the special location locked system and the little fence against the work pieces just with the surface, it will not leave pressed mark in the work pieces.
OPTIONS
1.Lengthen convey belt extend machine cover 1000mm
2.Adoptde Digital controlled system,servo motor for feeding and widen.
3.Jumping device for soring saw
4.Electrical centralized lubricant system.
5.Inverter motor for cut-off saw,rotation speed can up to 4500r/mine.
6.CE norm
Feel free to contact us if you need to video of this machine.
