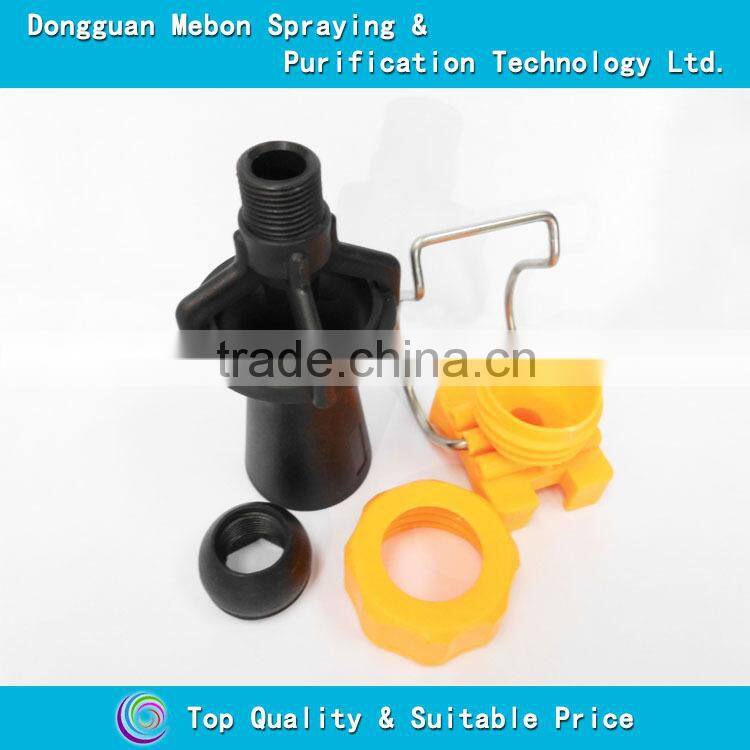

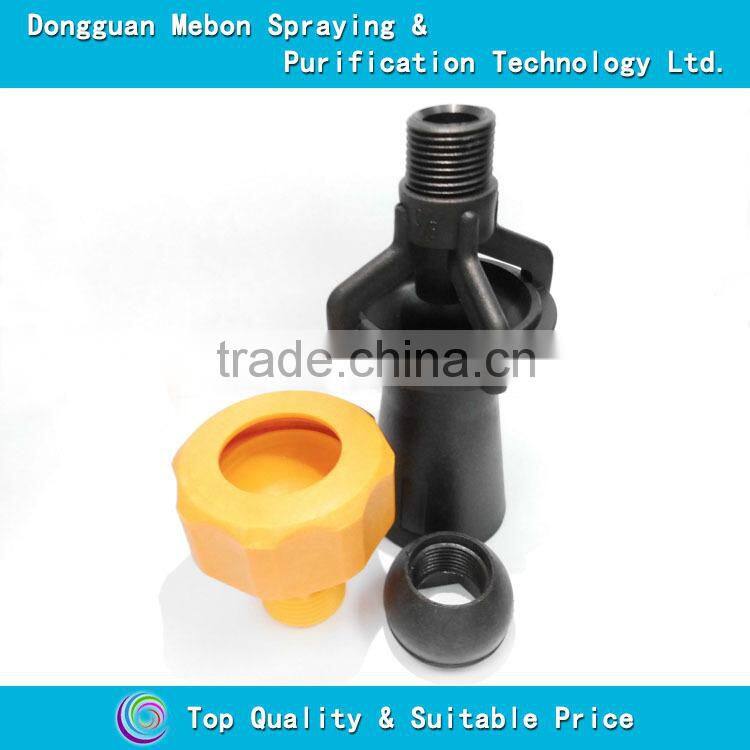

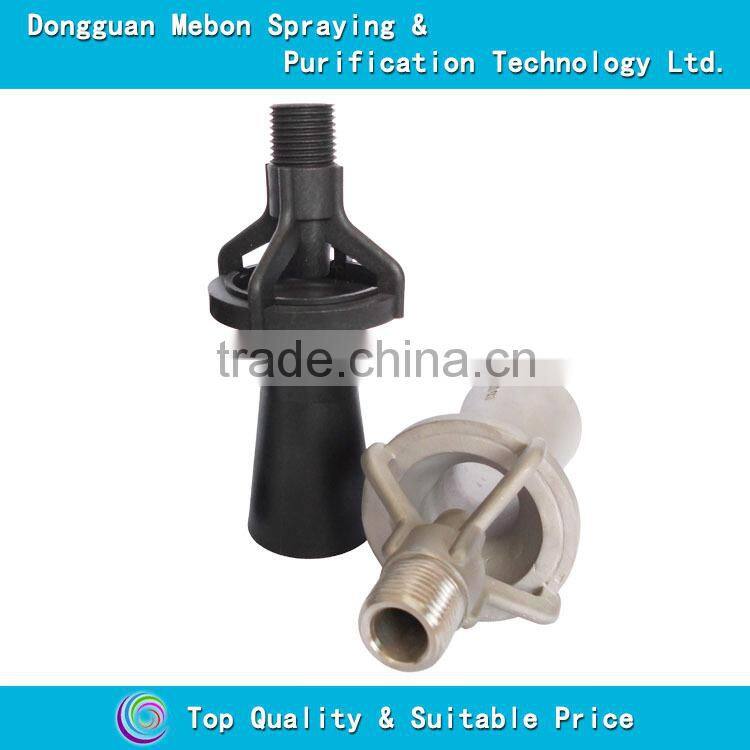

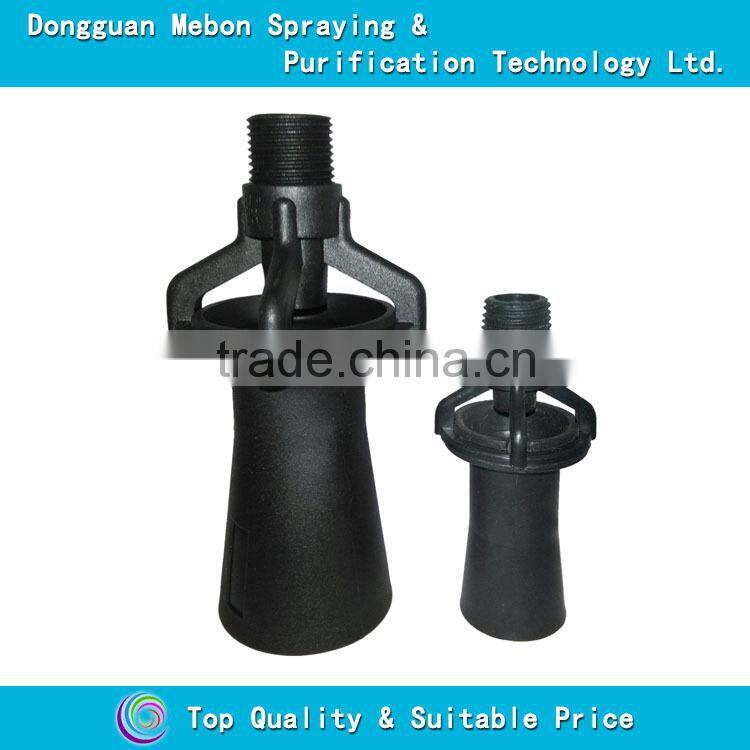

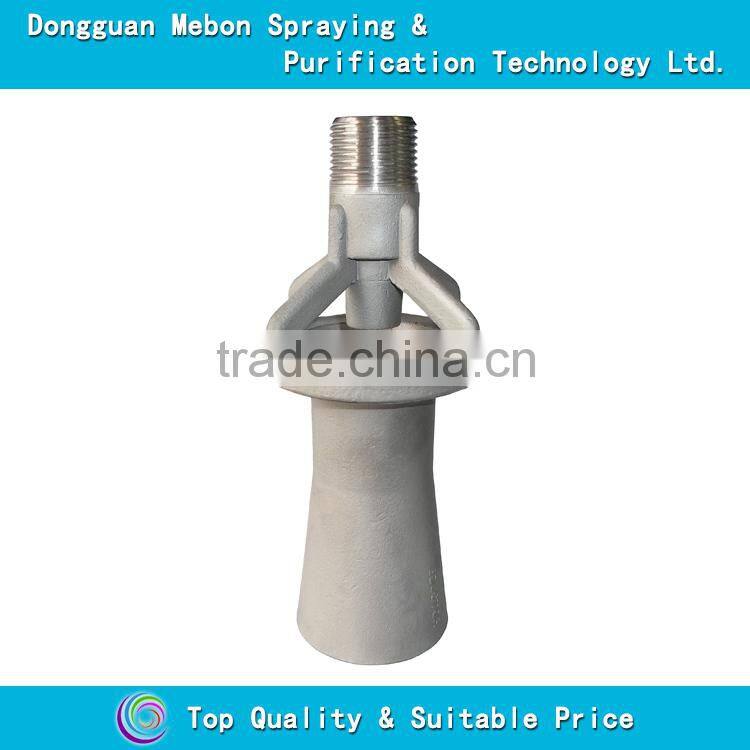

Venturi tank mixing jet eductor,agitation fluid mixing nozzle

Venturi tank mixing jet eductor,agitation fluid mixing nozzle

Design Features

• Large flow opening minimizes plugging

• A cost-effective method for optimizing liquid tand performance

• Allows small pumps to circulate large volumes of liquid

• Contains no moving parts to wear out or maintain
• Compact design simplifies mounting
• By keeping the particulate in suspension, filtration systerm clogging is prevented
• Material: PP (glass fiber polypropylene ), 316SS, other material on your request
• Connect size: 1/4", 3/8", 1/2", 3/4"

• Constructed of carbon fiber-reinforced polypropylene (fiber 20%) or SS316.

• Maximum operating temperature is 120°C for PP model,300°C for SS316 model.

• Corrosion resistance and aging resistance.

Functions
1.Improve circulation of the mixing flow and optimized mixture of the solutions.
2.Assures uniform mixture of solutions and improve product quality.

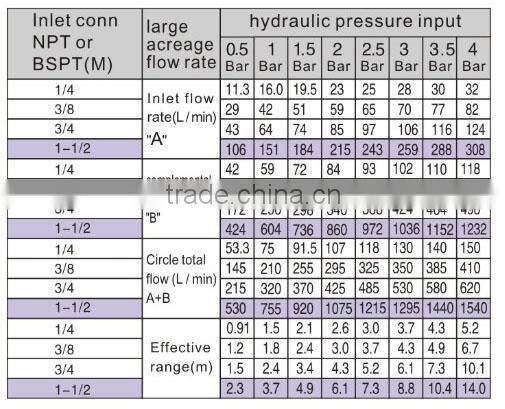

Proformance Data
