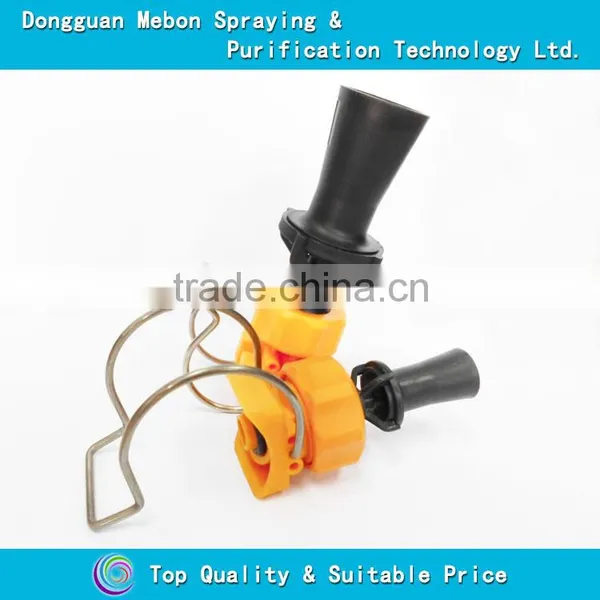

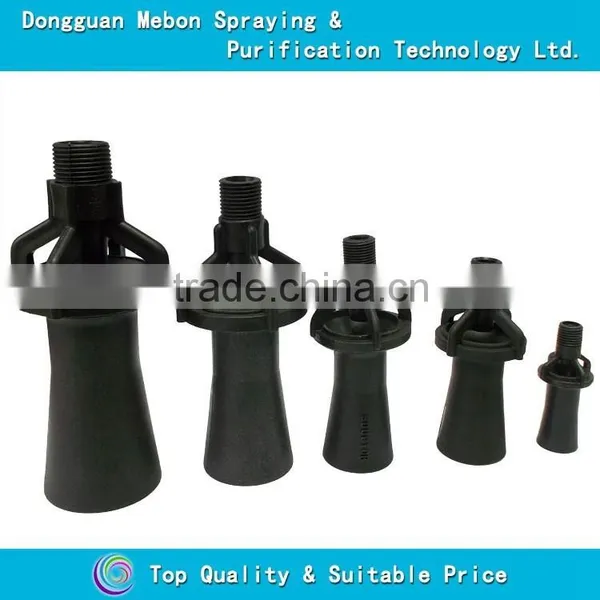

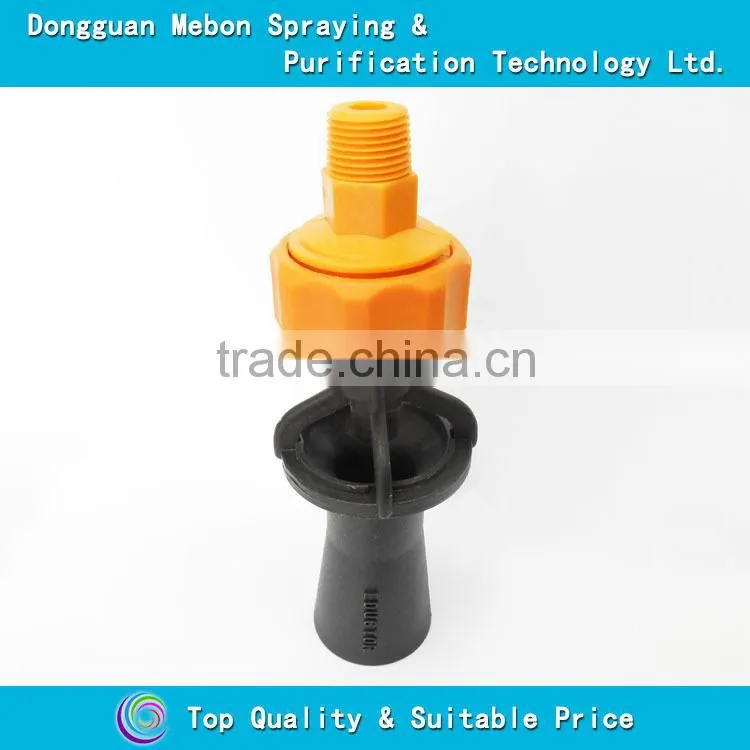

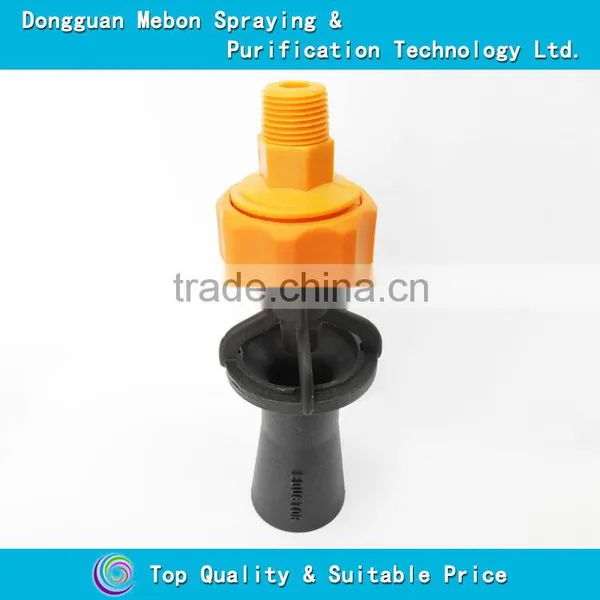

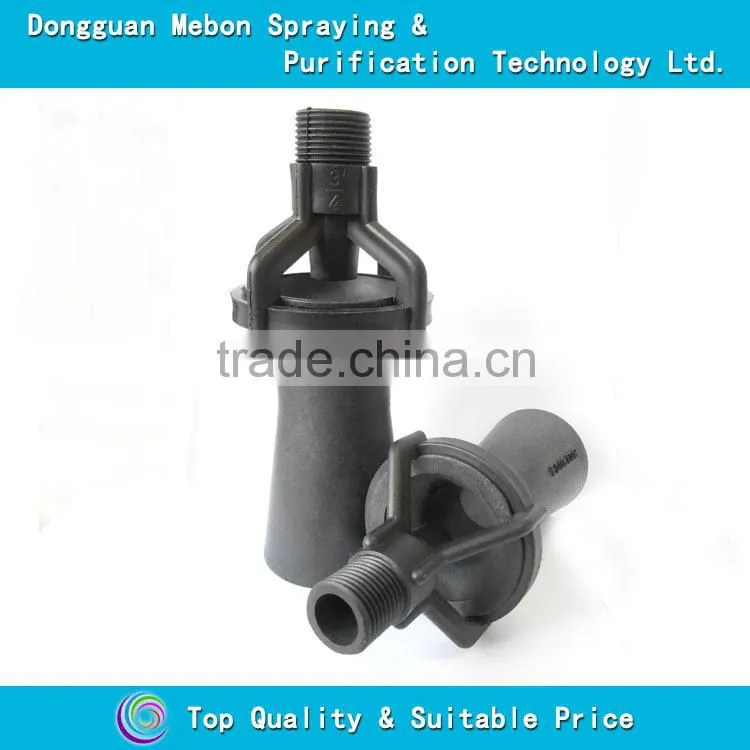

Help CenterVenturi Eductor Nozzle,mixing Fluid Eductor,3/8 BSPT Mixing Liquid Nozzle
Related Products
-
Plastic Tank Mixing Venturi Nozzle,tank Mixing Plastic Eductor NozzleUS$ 0.9 - 3.6MOQ: 20 Pieces -
3/4 Inch BSPT Mixing Venturi Eductor,plastic Eductor Venturi NozzleUS$ 0.9 - 3.6MOQ: 20 Pieces
-
PP Venturi Eductor Nozzle,plastic Mixing Liquid NozzleUS$ 2 - 5MOQ: 20 Pieces
-
High Quality Venturi Plastic Eductor NozzleUS$ 0.9 - 3.6MOQ: 20 Pieces
-
Container Eductor Nozzle,venturi Eductor Jet NozzleUS$ 2 - 5MOQ: 20 Pieces

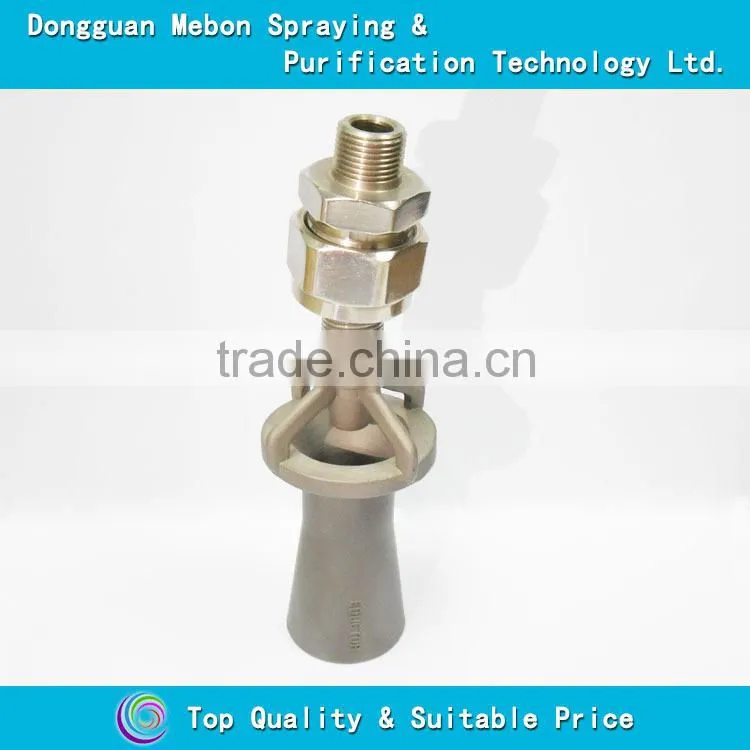

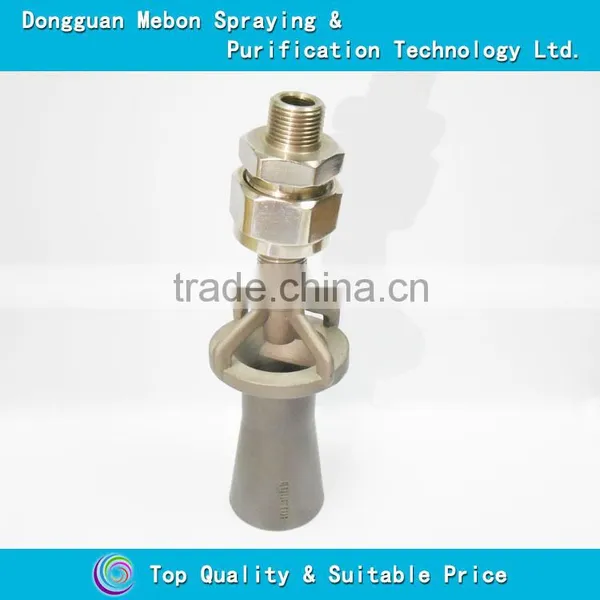

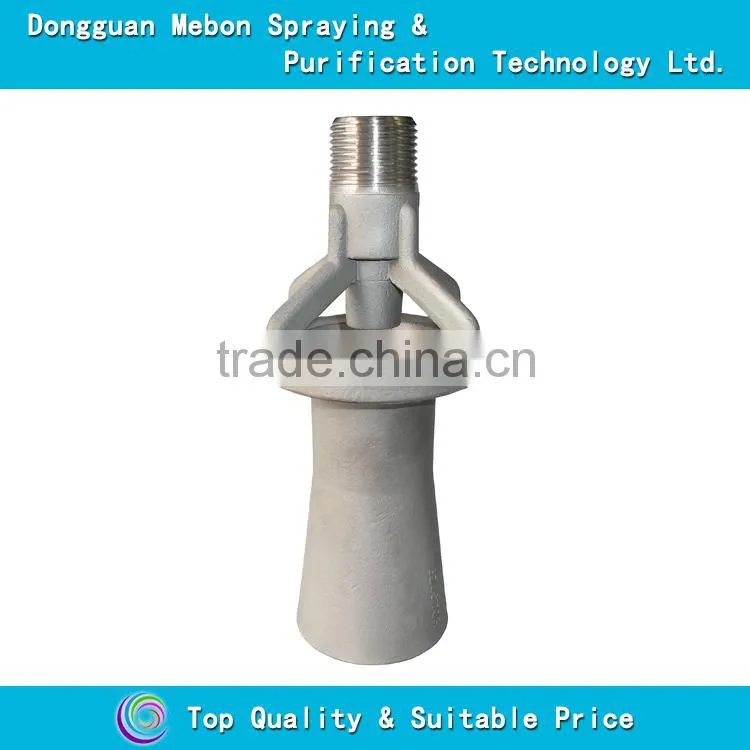

* Nozzle Materials: Carbon fiber reinforced plastics or SS316.
* Nozzle Structure: one-piece construction without internal parts.
* Spray Patterns: Mixing liquid jet eductor.
* Pressure Range: 1 to 4 bar (20 to 127 L/min).
* Thread Size: 1/4", 3/8", 1/2", 3/4" BSPT.
Mixing liquid eductors are used to agitate or mix liquids stored in tanks, pits, or sumps.
Mixing Eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution.
Designed on the basis of the Bernoulli theory, fluid under pressure is pumped into the nozzle through its large flow opening.
Proformance data:
| Entrance diameter | Flow properties | Entrance pressure | |||||||
| 0.5BAR | 1BAR | 1.5BAR | 2BAR | 2.5BAR | 3BAR | 3.5BAR | 4BAR | ||
| 1/4" | Storage flow (L / min) "A" | 11.3 | 16 | 19.5 | 23 | 25 | 28 | 30 | 32 |
| 3/8" | 29 | 42 | 51 | 59 | 65 | 70 | 77 | 82 | |
| 1/2" | 36 | 53 | 62 | 72 | 83 | 88 | 97 | 103 | |
| 3/4" | 43 | 64 | 74 | 85 | 97 | 106 | 116 | 124 | |
| 1/4" |
Supplementary volume (L / min) "B" |
42 | 59 | 72 | 84 | 93 | 102 | 110 | 118 |
| 3/8" | 116 | 168 | 204 | 236 | 260 | 280 | 308 | 328 | |
| 1/2" | 131 | 212 | 251 | 288 | 324 | 352 | 386 | 421 | |
| 3/4" | 172 | 256 | 298 | 340 | 388 | 424 | 464 | 496 | |
| 1/4" |
Cyclic Total (L / min) "A" + "B" |
53.3 | 75 | 91.5 | 107 | 118 | 130 | 140 | 150 |
| 3/8" | 145 | 210 | 255 | 295 | 325 | 350 | 385 | 410 | |
| 1/2" | 180 | 265 | 313 | 360 | 405 | 440 | 482 | 515 | |
| 3/4" | 215 | 320 | 370 | 425 | 485 | 530 | 580 | 620 | |
| 1/4" | Effective range (m) | 0.91 | 1.5 | 2.1 | 2.6 | 3 | 3.7 | 4.3 | 5.2 |
| 3/8" | 1.2 | 1.8 | 2.4 | 3 | 3.7 | 4.3 | 4.9 | 6.7 | |
| 1/2" | 1.3 | 2.1 | 3 | 3.6 | 4.5 | 5.2 | 6.4 | 8.6 | |
Strict export packaging for the goods.
1. Reply your inquiry within 8 hours.
2. Samples could be sent free.
3. Delivery time within 7 days.
4. Best after-sale service
5. Payment Term:T/T , Western Union, L/C
6. Delivery Term: DHL/ UPS/FEDEX Express; Air/ Sea Transportation
Dongguan Mebon Spraying & Purification Technology Ltd. was established in Dongguan in June, 2002. Our company is a professional manufacturer engaged in the design,development and sales of a variety of spray nozzles and filters.
Our company has professional technicians, complete production equipments and high qualified personnel, including 15 engineers, 60 technicians and 2 management staff members. Some of them have 10 years of industrial knowledge and experience about spray nozzles and filters.
Our factory is equipped with state-of-the-art equipment and related software, such as CAD/CAM system, EDM, 2.5D projector, spark machine, CNC, grinding machine, life test,and packaging machine.
We specialize in our main products such as full cone nozzles,flat fan nozzles,hollow cone nozzles,clamp eyelet nozzles,wind jet nozzles,air shower nozzles,oil burner nozzle,fog nozzles,air atomizing nozzles,etc.Today,our spray nozzles could be used in almost every field. We hope that our spray nozzles could bring everyone an easy and comfortable life. Your satisfaction is our highest pursuit!
Quality is our primary goal! Our factory has passed ISO9001:2000 certification, and strictly enforce IQC incoming inspection, IPQC production inspection, OQC and finished QA check at each level to ensure product quality.
To learn more about our products and services, please contact us. We will be happy to serve you!
