Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Fire Fighting Water Flow Switch and Contril Switch

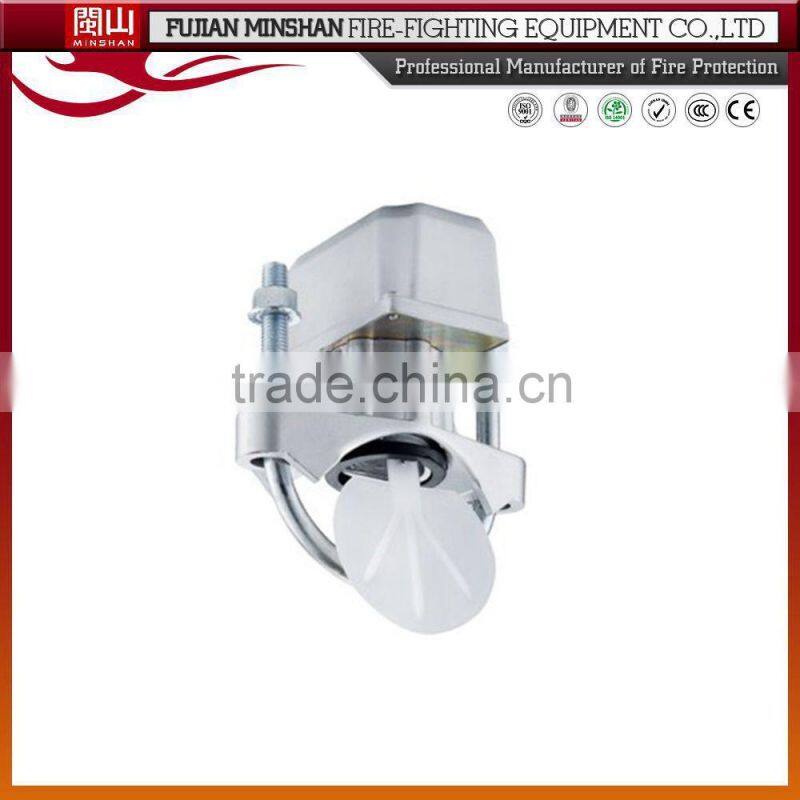

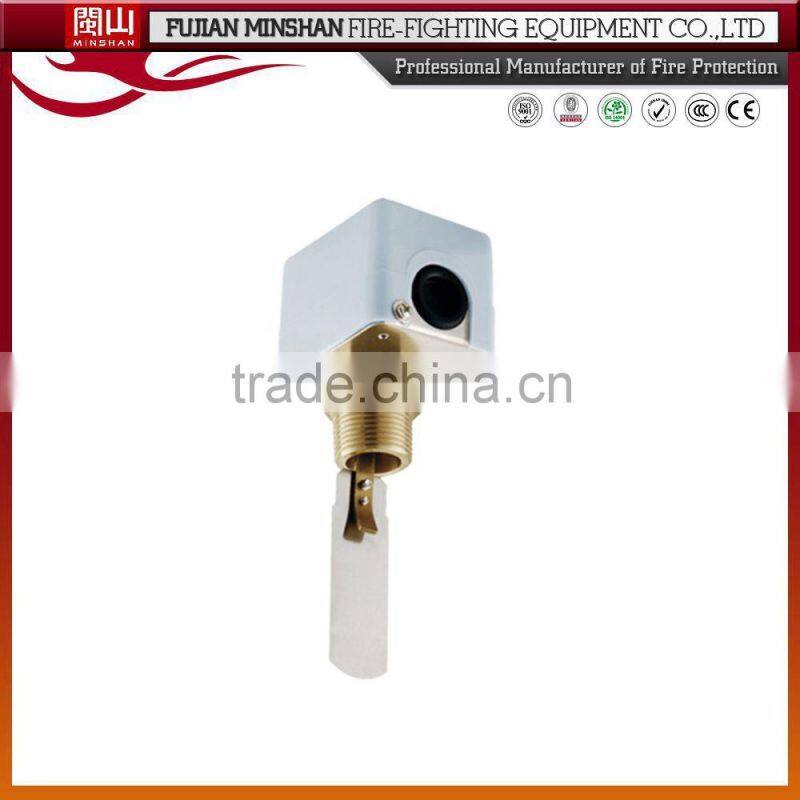

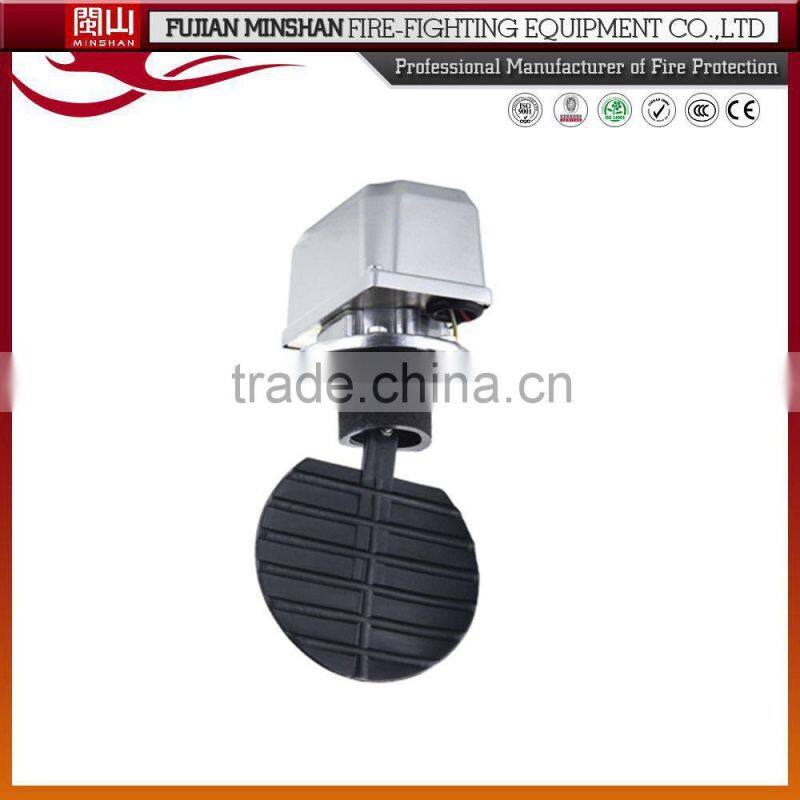

Fire Fighting Water Flow Switch and Contril Switch
US$ 10 - 15
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Minshan
Model Number:
ZSJA/A
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Saddle Type Water Flow Switch Use on Pipe SystemUS$ 10 - 15MOQ: 100 Sets -
Dual Use Foam Water Fire MonitorUS$ 10 - 11MOQ: 10 Units
-
Manufacture Supply Fire Monitor Marine Fire MonitorUS$ 10 - 11MOQ: 10 Units
-
Manual Fire Monitor With FlangeUS$ 10 - 11MOQ: 10 Units
-
Water Filter Fire Monitor Resistive Fire MonitorUS$ 10 - 11MOQ: 10 Units
Place of Origin
Fujian, China
Brand Name
Minshan
Model Number
ZSJA/A
Banner
Product Description
Water Flow Switch with ISO, CCC Certificates
1. Widely use in automatic fire extinguishing system;
2. Vairous types to choose;
3. Easy install and use.
4. 2"(50mm) to 8"(200mm) are available
| Characteristics and Functions | |
| Model | ZSJA/A |
| Type | Flow switch saddle water flow switch equipments |
| Material | Brass, Ductile Iron |
| Norminal diameter | DN50~DN200 |
| Norminal working pressure | 1.2Mpa |
| Time delay | 2 to 90s |
| Sensitivity | 15 to 37.5 L/min |
| Contacts capacity | AC220V/3A ,DC24V/1A |
| Seal test pressure | 2.4Mpa |
| Pressure | High Pressure water flow indicator controller |
| Basic Parameters of Water Flow Indicator | ||||
| Type | Saddle type | Flange type | Welded type | Thread type |
| Model | ZSJZ/A | ZSJZ/F | ZSJZ/H | ZSJZ/S |
| Norminal diameter | DN50, DN65, DN80, DN100, DN120, DN150, DN200 | |||
| Norminal working pressure | 1.2Mpa | |||
| Time delay | 2 to 90s | |||
| Sensitivity | 15 to 37.5 L/min | |||
| Contacts capacity | AC220V/3A ,DC24V/1A |
|||
Detailed Images
|
|
|
|
|
Factory view
