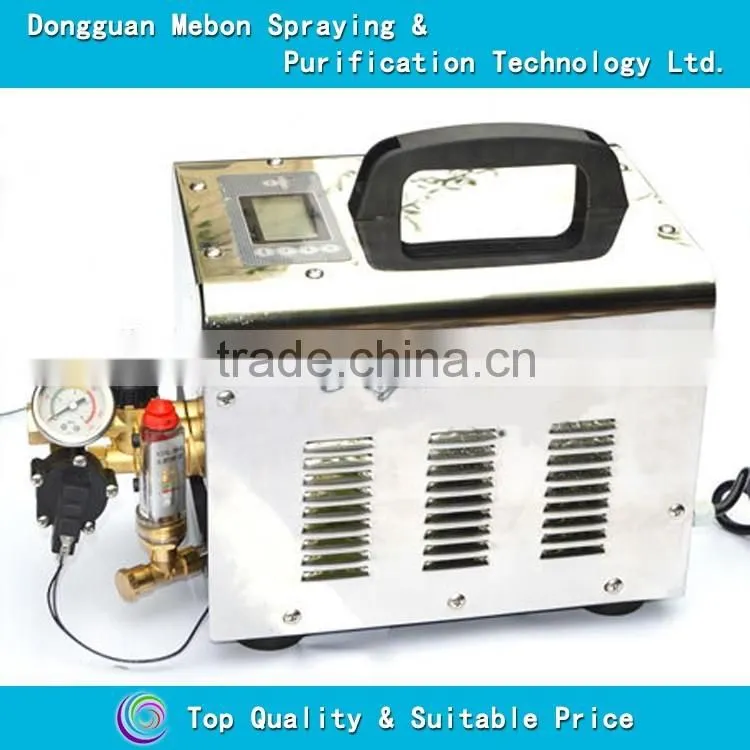

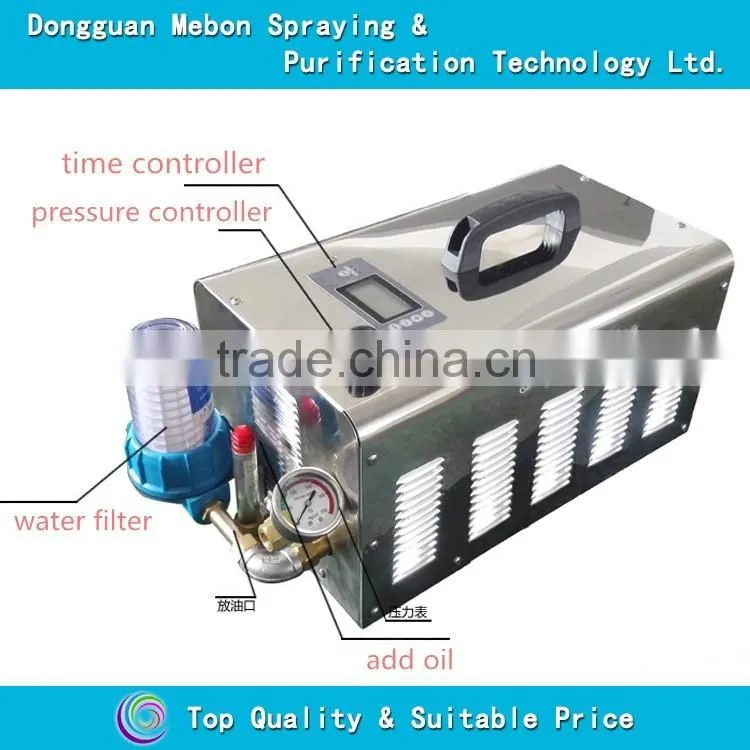

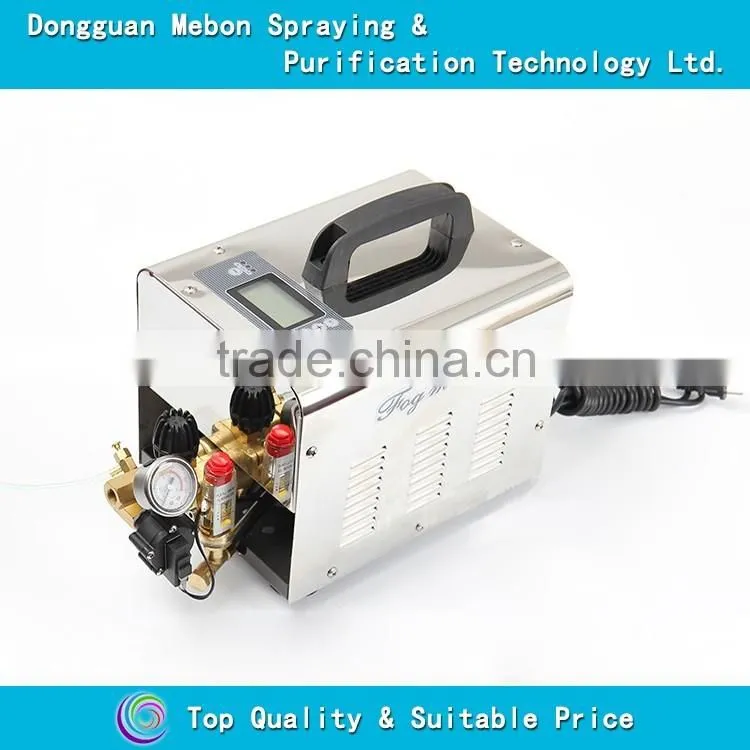

2L/min micro fog humidifying system,high pressure anti-drip mist machine
The misting pump can be applied for various functions, such as cooling ,humidfying, landscaping dedusting, lowering the temperature ,especiallly for chemical spraying and seed raising in the field of Agriculture. The following is the distinguishing feature of the misting system.
Moist fog: The high pressure misting system can produce 5 billion droplets. the thread of the drop is 3~10um,which looks like mist covering mountain, forming water vapor and targeting the excellent humidification and cooling effect .
Energy saving: Misting one kilogram water just need 6w electrical energy ,which consumes only 1/100 of the traditional electric steam humidifier or the 1/10 of the centrifugal humididfier.
Reliability: The high misting pump apply the newest technology into the process of producing . It can work for 24 hours sustainablely without destorying other parts like the misting nozzles ,fittings,and pipes,even in the air environment of high concentrations of dust.
Environment health: The high pressure misting system use the non-circulatiuon water so that there is no threat of the reproduction of bacteria.
Volume spraying: high sprayer distribution and easily adjustable.
Specification
| Item NO. | LPM | Power | Size | Working pressure | Voltage | The number of nozzles used | Frequency |
| MECO-03 | 0.3L | 120W | 40*20*27cm | 60bar | 220V/110V | 8 nozzles |
50/60HZ |
| MECO-10 | 1L | 300W | 43*22*29cm | 60bar | 220V/110V | 20 nozzles | 50/60HZ |
| MECO-20 | 2L | 550W | 47*25*32cm | 60bar | 220V/110V | 40 nozzles | 50/60HZ |
| MECO-30 | 3L | 750W | 47*25*32cm | 60bar | 220V/110V | 60 nozzles | 50/60HZ |
| MECO-70 | 7L | 1800W | 70*36*35cm | 60bar | 220V/110V | 120 nozzles | 50/60HZ |
| MECO-110 | 11L | 2200W | 69*35*33cm | 60bar | 220V/110V | 200 nozzles | 50/60HZ |
| MECO-154 | 15.4L | 3000W | 69*35*33cm | 60bar | 220V/110V | 260 nozzles | 50/60HZ |

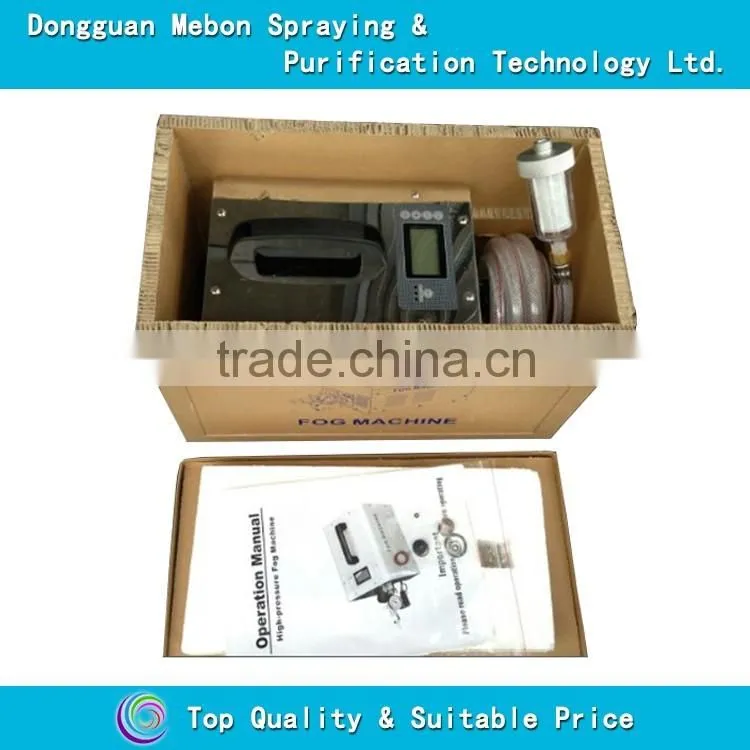

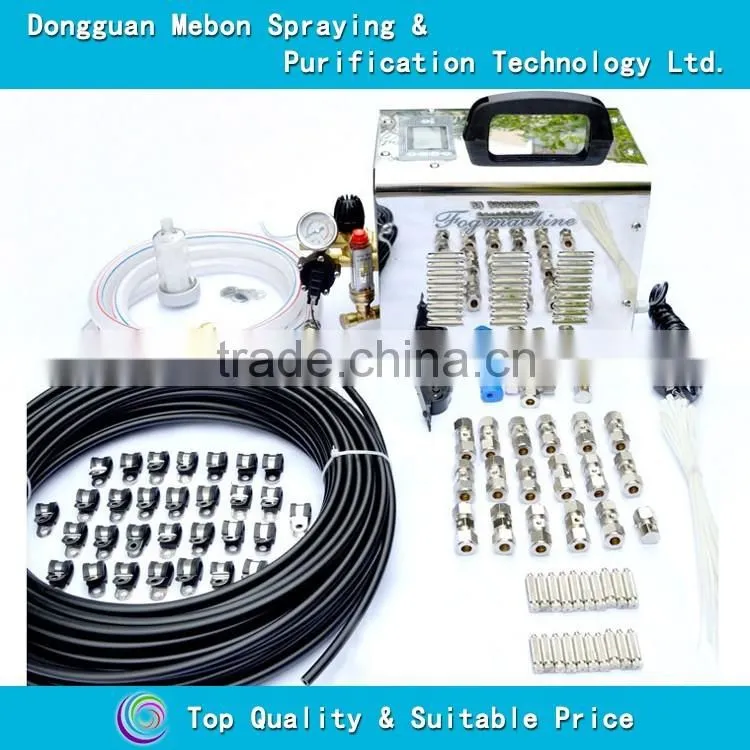

The whole set of the equipment includes

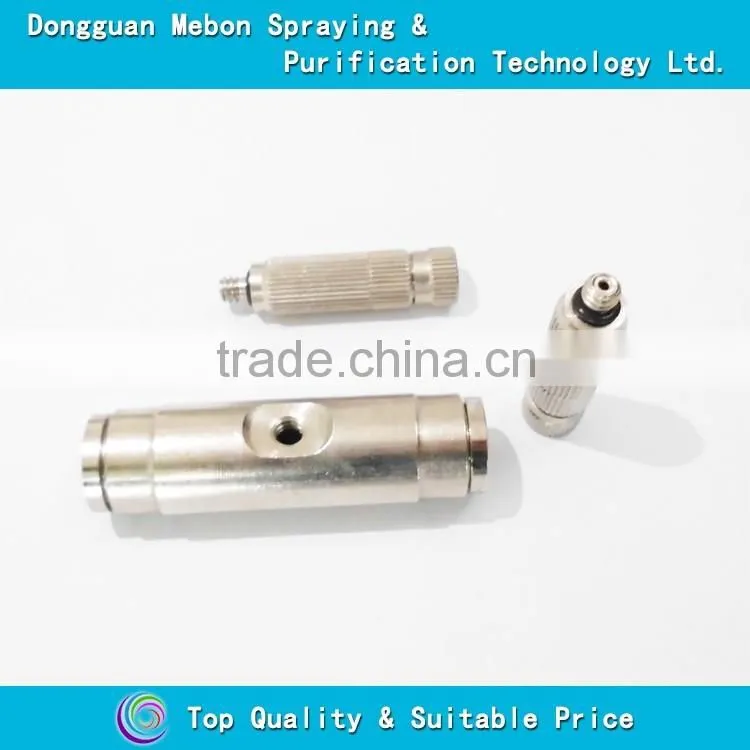

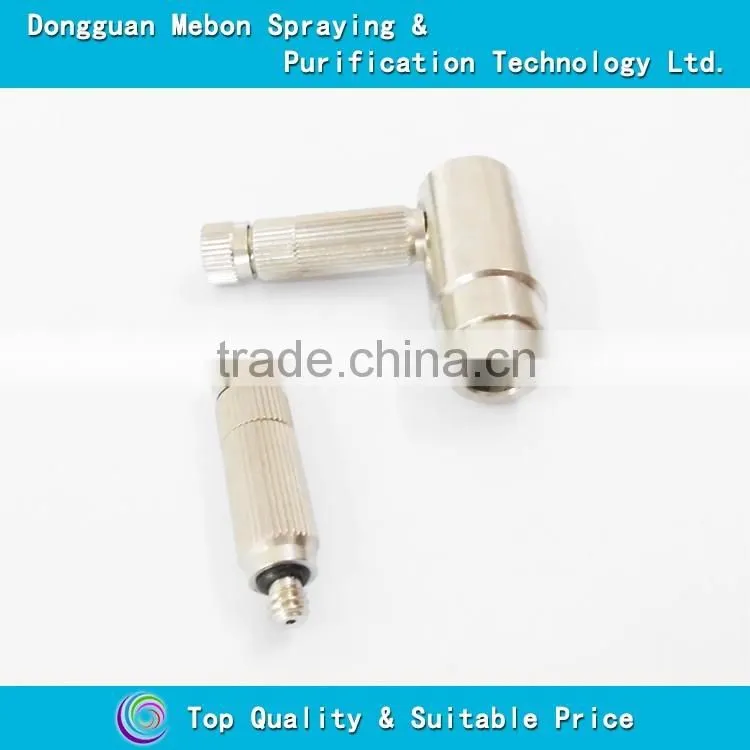

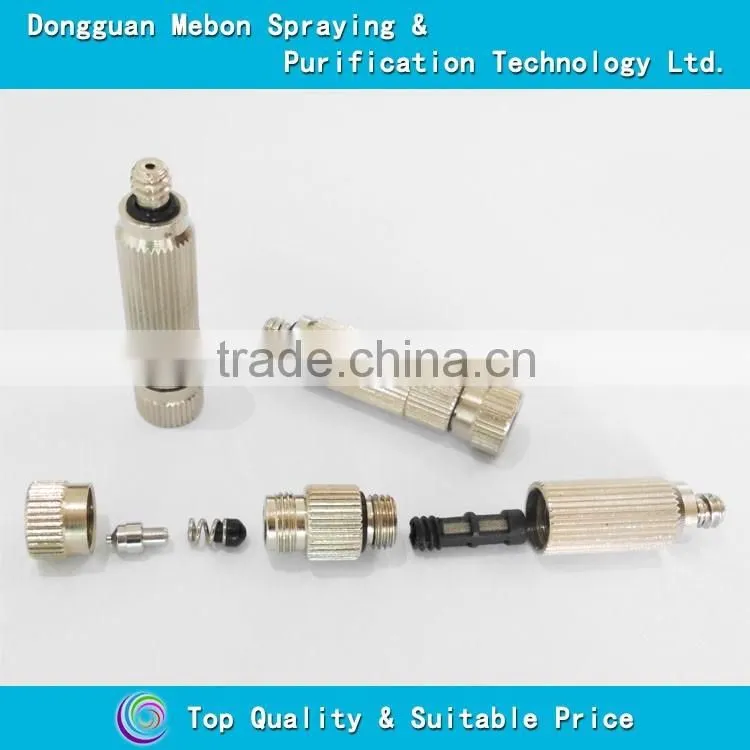

misting nozzle : 0.1mm,0.15mm,0.20mm,0.30mm,0.40mm,0.50mm
high pressure
Thread:10/24unc
washable filter
brasss with nickel plated
stainless steel orifice

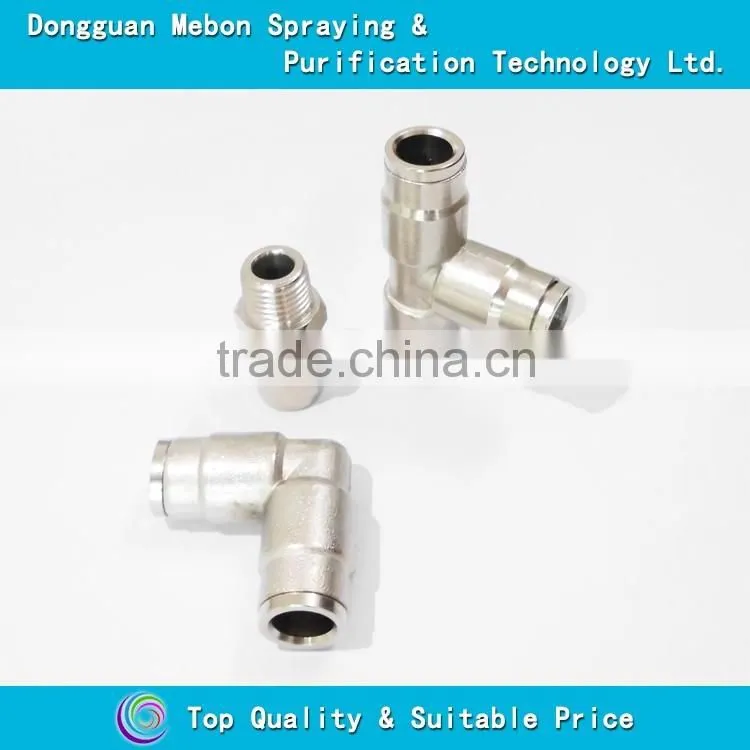

misting fitting:
cross connector,slip-lock union,slip-lock male connector,slip-lock Tee connector,elbow connector,etc( 1/4",3/8",10/24unc)
tubing: nylon tubing
tubing cutter,tubing clamp, filter
Application
This pump can be applied into farming usage,such as cooling,humidification,dedusting,deodorization,insect control etc. It can be operated easily and simplely. with such kind of pump machine, user can save lots of energy and time to manage their farming place .Beside, the pump can be used for other functions mentioned flike follows:
1. Cooling
Residential cooling, outdoor cooling, commercial place cooling
2. Humidification
Industrial, agricultural and horticultural: green house, garden, livestock farming
3. Dedusting and Deodorization
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
4. Insect Control
garden or agriculture , kill the insect effenciently.
Mist System

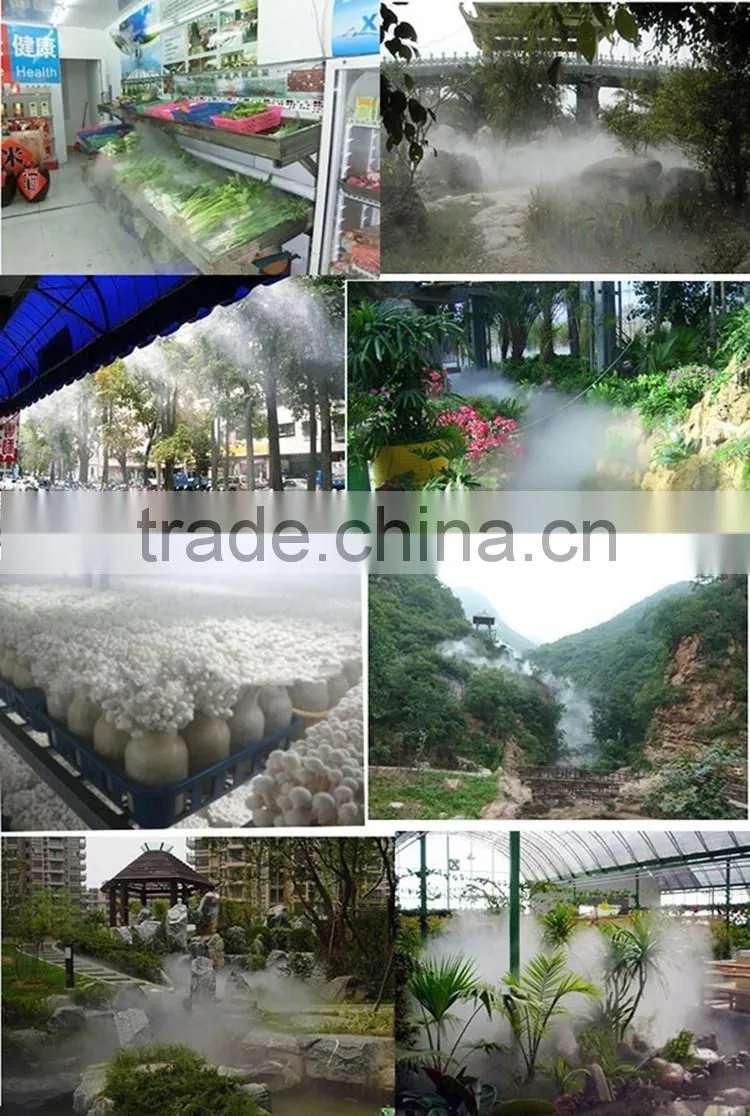

Fog Effect
