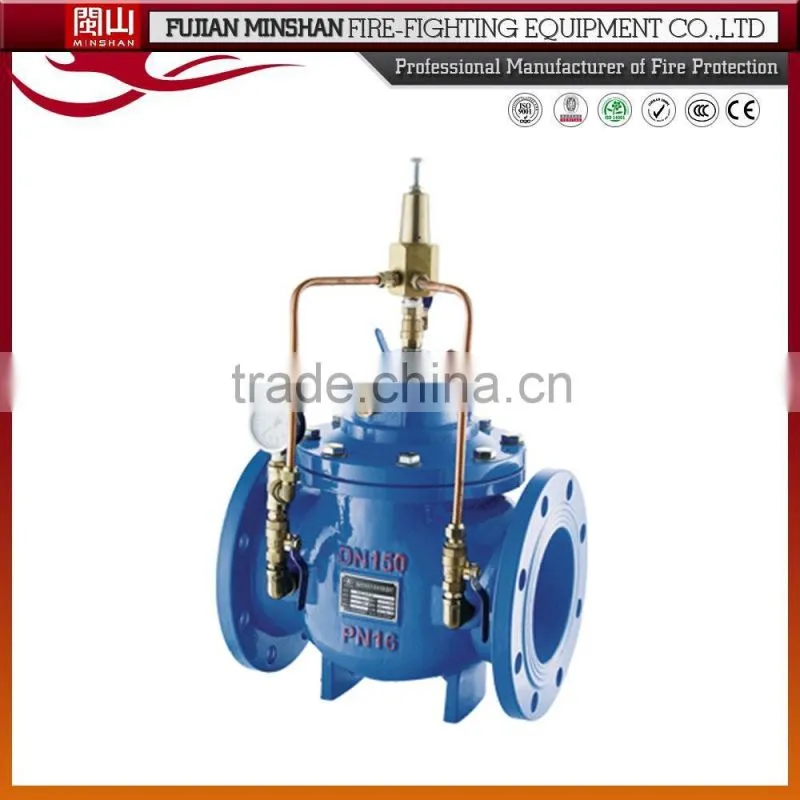

Fire Use to Reduce Pressure of Blue Pressure Reduce Valve

Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-1
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-2
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-3
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-4
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-5
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve thumbnail-6
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-1
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-2
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-3
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-4
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-5
Fire Use to Reduce Pressure of Blue Pressure Reduce Valve photo-6
US$ 50 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Fujian Minshan Fire-Fighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Control
Pressure Low Pressure
Power Hydraulic
Material Casting
Temperature of Media Medium Temperature
Media Water
Port Size DN50-DN300
Place of Origin Fujian, China
Model Number MS200X-10/16
Brand Name Minshan
Application General
Banner

fire use to reduce pressure of blue pressure reduce valve

Product Description

Fire use to reduce pressure of blue pressure reduce valvewith ISO, CCC Certificates



1.Main material



Body

 Fine iron

 Film

 Acrylic cord lining NBR

 Stem

 Stainless steel 2CR13

 Pad

 NBR

Spring

 Stainless steel 2CR13

 Pilot valve

 Brass



2.Technical parameters





40

50

65

80

100

125

150

200

250

300

Valve length L:

235

235

250

285

365

365

455

580

650

800

Valve height H:

395

395

415

455

485

495

555

670

725

755

Valve width K:

235

235

235

265

290

300

340

460

500

580

Temperature

≤80°C

For media

Water, corrosive fluid with low gas

Performance Testing

SealPN=1.1MPA/1.76MPA

StrengthPN=1.5MPA/2.4MPA

Working pressure

1/8-7/8Source pressure (the lowest 0.05MPA)



Connection Standard

GB4216-1992
