Product Description

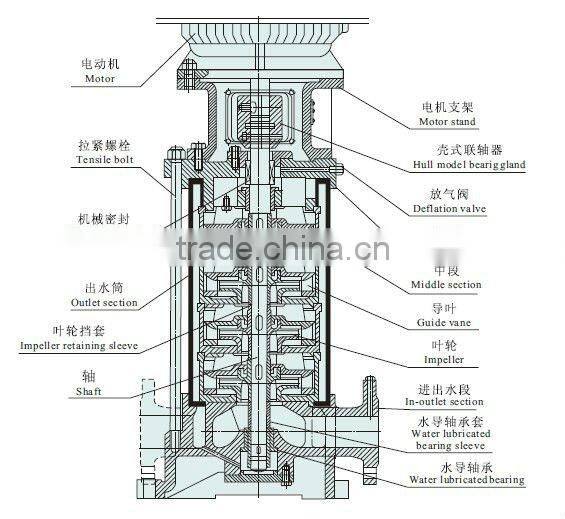

Light Vertical Multistage Pump diesel engine fire pump with ISO, CCC Certificates
Product Introduction:
XBD-L-type vertical suction sub-fire multi-stage pumping systems for non-delivery of water and solid particles of similar physical and chemical properties of liquid water use. Fire mainly used for pressurized water pipeline system, but also to industrial and urban water supply and drainage, high-rise building pressurized water, and transport from the water, heating, bathrooms, boilers and well-being of pressurized water cycle, air conditioning and refrigeration equipment for water systems and other occasions.
The Company produced the XBD-L-Series fire pump performance, technical requirements in line with the state promulgated the new GB6245-1998 "fire pump performance requirements and test methods," the requirements of the standard, products and equipment by the State Quality Supervision and fire detection centre tested, access Shanghai fire products recognized certificates.
The Company produced the XBD-L-Series fire pump performance, technical requirements in line with the state promulgated the new GB6245-1998 "fire pump performance requirements and test methods," the requirements of the standard, products and equipment by the State Quality Supervision and fire detection centre tested, access Shanghai fire products recognized certificates.
Performance and advantages:
High efficiency and low energy consumption ,
Low noise
Small vibration
Reasonable structure
Long life
Type Designation:
XBD 5.7/25-100L
XBD – Fire pump code
5.7 – Design pressure (1/10MPa)
25 – Design flow (L/S)
100 – Diameter of pump outlet and inlet (mm)
L – Vertical structure
Technology Parameters:
Flow:5-100L/S;
Pressure:0.16-2.25Mpa;
power:3-200KW;
Rotary speed:1450r/min;
Calibre:50-200mm;
Temperature range:≤80°C.
