Home > Products > Valves Series > GL41H-10/16 Y type filter flange connection
GL41H-10/16 Y type filter flange connection
- xiamen
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Normal Temperature | |
| Media | Water | Place of Origin | Fujian, China | |
| Model Number | GL41H-10/16 Y type filter | Brand Name | Minshan | |
| Application | Other, to remove the impurity in the medium |
Product Description
Specifications
1.CCC/ISO99012.Professional Manufacturer
3.The filter Size:is DN65 to DN500
4.Y type filter flange connection
GL41H-10/16 Y type filter flange connection
1.Description
Y filter is indispensable conveyance medium in pipe system,usually fit on reducing valve ,decompression valve and the inlet of other system ,it used to purge in the medium's impurity. Generally through the water network for the 18-30 mesh, 40-100 mesh ventilation network, through the oil to 100-480 mesh network, users can request manufacture filters, medium temperature: ≤ 225 ° C
2.Features |
Major Dimensions | |||
| DN | SIZE | ||
| L | H | H1 | |
| 65 | 250 | 198 | 270 |
| 80 | 280 | 210 | 295 |
| 100 | 350 | 250 | 344 |
| 125 | 400 | 305 | 422 |
| 150 | 440 | 358 | 485 |
| 200 | 500 | 450 | 602 |
| 250 | 580 | 503 | 710 |
| 300 | 670 | 578 | 815 |
| 350 | 780 | 598 | 844 |
| 400 | 850 | 618 | 872 |
| 450 | 850 | 693 | 987 |
| 500 | 1000 | 765 | 1080 |
3.Main materials
Shell material | Filter | Mesh size |
Grey cast iron | Stainless steel | 3-4DN |
Ductile Iron | ||
Carbon Steel |

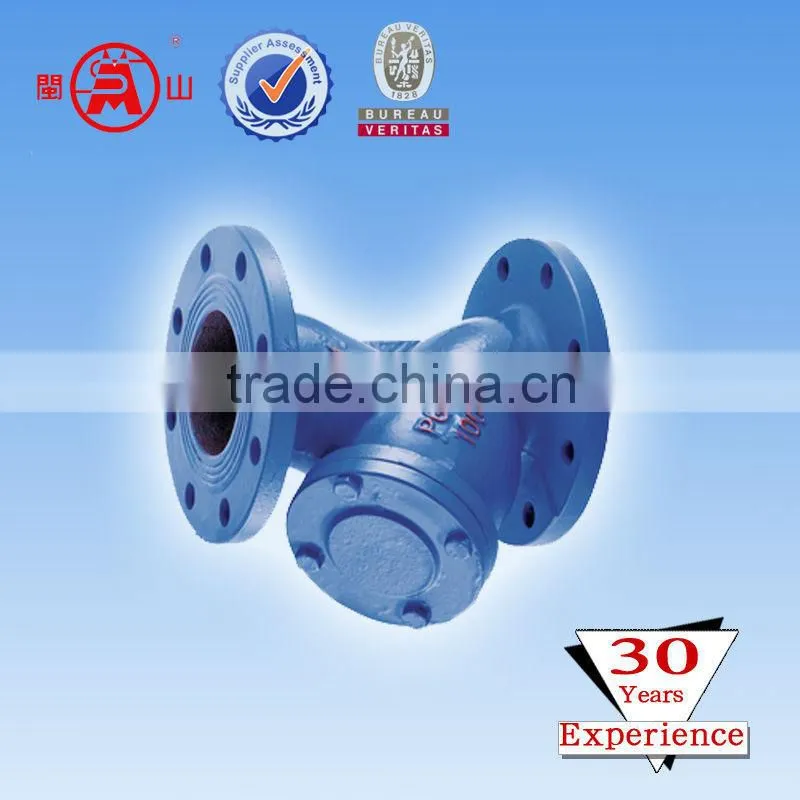

4.Image
5.Producing process
6.Testing process
7.Packing
