Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZSDF Fire Signal Stem Gate Valve Dn100 Pressure PN16US$ 30 - 500MOQ: 200 Pieces -
Adjustable Water Stainless Steel Pressure Reducing ValveUS$ 20 - 20MOQ: 100 Pieces
-
8000 Type Water Hammer ArresterNegotiableMOQ: 200 Sets
-
8000 Type Gas Rang Type Water Hammer EliminatorNegotiableMOQ: 200 Sets
-
8000 Type Gas Rang Type Water Hammer ArresterNegotiableMOQ: 200 Sets
Standard or Nonstandard
Standard
Structure
Gate
Pressure
Medium Pressure
Power
Manual
Material
Casting
Temperature of Media
Normal Temperature
Media
Water
Place of Origin
Fujian, China
Model Number
GL41H-10/16 Y type leach
Brand Name
Minshan
Application
Other, to remove the impurity in the medium
Specifications
1.CCC/ISO99012.Professional Manufacturer
3.The filter Size:is DN65 to DN500
4.Y type leach cast iron
Y type leach cast iron
1.Description
Y filter is indispensable conveyance medium in pipe system,usually fit on reducing valve ,decompression valve and the inlet of other system ,it used to purge in the medium's impurity. Generally through the water network for the 18-30 mesh, 40-100 mesh ventilation network, through the oil to 100-480 mesh network, users can request manufacture filters, medium temperature: ≤ 225 ° C
2.Features |
Major Dimensions | |||
| DN | SIZE | ||
| L | H | H1 | |
| 65 | 250 | 198 | 270 |
| 80 | 280 | 210 | 295 |
| 100 | 350 | 250 | 344 |
| 125 | 400 | 305 | 422 |
| 150 | 440 | 358 | 485 |
| 200 | 500 | 450 | 602 |
| 250 | 580 | 503 | 710 |
| 300 | 670 | 578 | 815 |
| 350 | 780 | 598 | 844 |
| 400 | 850 | 618 | 872 |
| 450 | 850 | 693 | 987 |
| 500 | 1000 | 765 | 1080 |
3.Main materials
Shell material | Filter | Mesh size |
Grey cast iron | Stainless steel | 3-4DN |
Ductile Iron | ||
Carbon Steel |

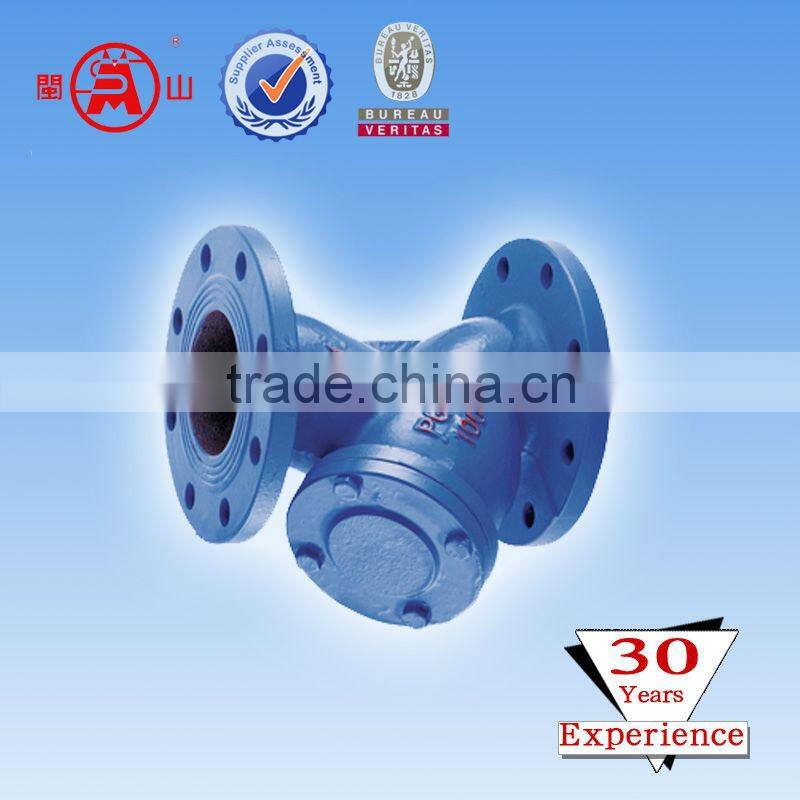

4.Image

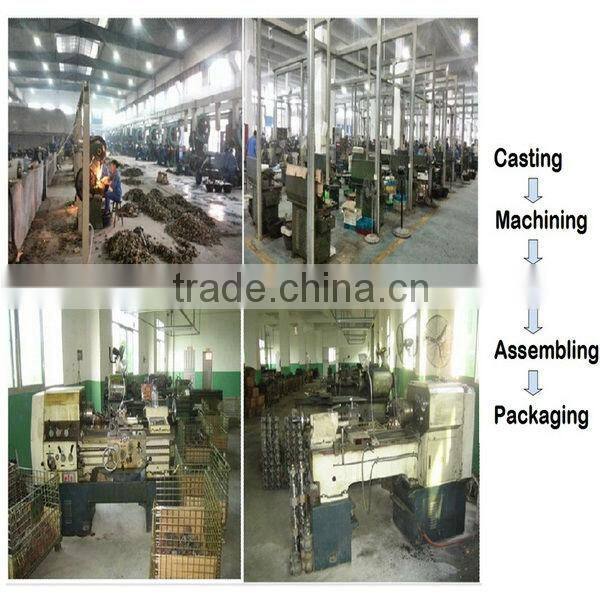

5.Producing process

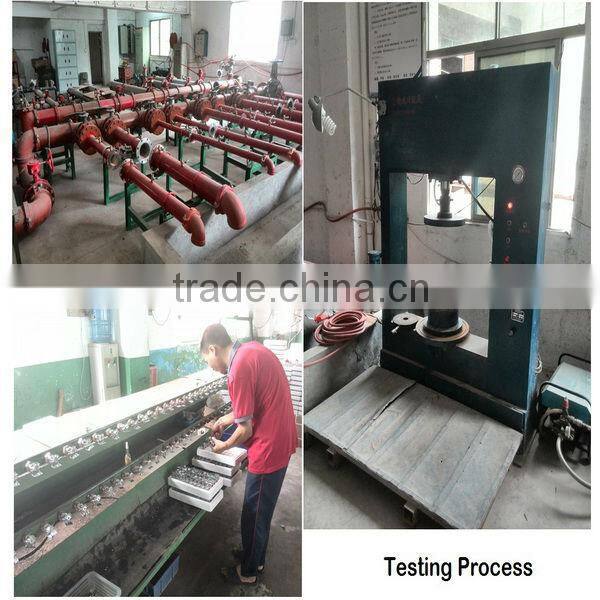

6.Testing process
7.Packing
