20 bar stainless fog spray nozzle,high pressure misting system nozzle
Product Description

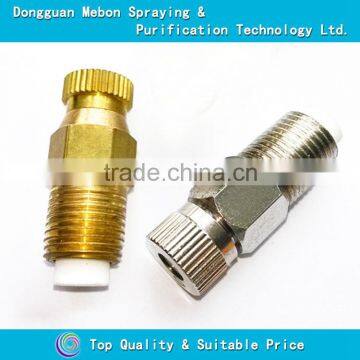

- Metal fog spray nozzle consists of brass/SS body with internal SS/ceramic core and stainless steel guide vane (with a leak-proof device).
- The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
- It is equipped with TEFLON strainer and the fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The imported US punching machine punches orifice about 0.15 to 0.5mm in size.
- The nozzle saves 10 times or above cost than that of moistening by air.
| Performance Data | |||
| Fog Nozzle | Orifice Diameter | Operation Pressure | Flow Rate |
| FD1 | 0.15mm | 20-70kg/cm | 20-46ml/min |
| FD2 | 0.20mm | 49-89ml/min | |
| FD3 | 0.30mm | 80-145ml/min | |
| FD4 | 0.40mm | 95-178ml/min | |
| FD5 | 0.50mm |
130-243ml/min |
|
Commen Application
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
Product Show
Dongguan Mebon Spraying & Purification Technology Ltd. was established in Dongguan in June, 2002. Our company is a professional manufacturer engaged in the design,development and sales of a variety of spray nozzles and filters.
Our company has professional technicians, complete production equipments and high qualified personnel, including 15 engineers, 60 technicians and 2 management staff members. Some of them have 10 years of industrial knowledge and experience about spray nozzles and filters.
Factory Building
Workshop
Packaging
