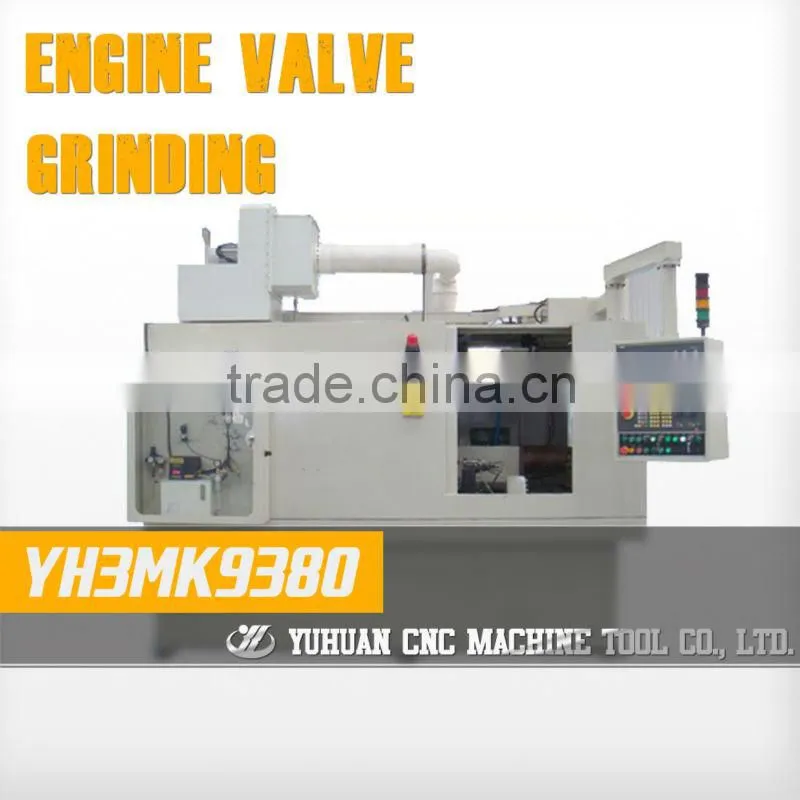

Technical characters:
1. Germany's Siemens (SIEMENS) 840D CNC system.
2. Wheel spindle adopts high rigidity and precision electrical spindle which is supported by hydro-dynamic-static bearings. The built-in synchronous motor is inside the spindle.
3. The headstock spindle is equipped with self-developed electrical spindle supported by the hydro-dynamic-static bearing, with the Siemens servo motor.
4 .The flange disc can be installed both CBN wheel and ordinary grinding wheel.
Specifications:
Item | Unit | Spec. |
Parts diameter | mm | Φ20 - Φ80 |
Parts length | mm | 80-250 |
CBN Wheel size | mm | Φ500 × 203.2 × 30 |
Conventional wheel size | mm | Φ610 × 203.2 × 25-50 |
CBN wheel linear velocity | m/s | ≤100 |
Conventional wheel linear velocity | m/s | ≤60 Constant linear velocity |
Parts spindle rotate speed | rpm | 200-3000 |
Wheel and parts spindles feed speed | m/min | ≤36 |
Slide stroke of wheel and parts spindles feed | mm | 300 |
Total weight | Kg | 10000 |
Overall dimension | mm | 2900×2700×1900 |
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers

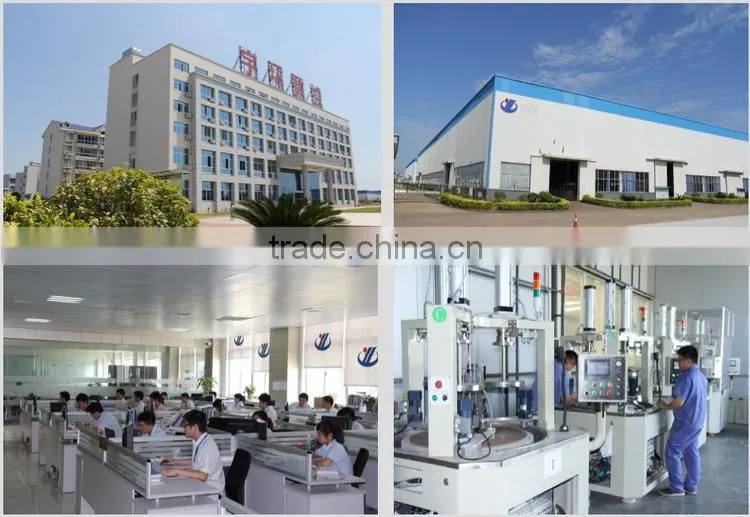

- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
