Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 120mm | |
| Max. Grinding Length | 40mm | Place of Origin | Hunan, China | |
| Brand Name | YUHUAN | Model Number | YHDM580B | |
| Voltage | 380V 50Hz | Power(W) | 22Kw x 2 | |
| Dimension(L*W*H) | 2700x2620x2650mm | Weight | 10000kg | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main purpose

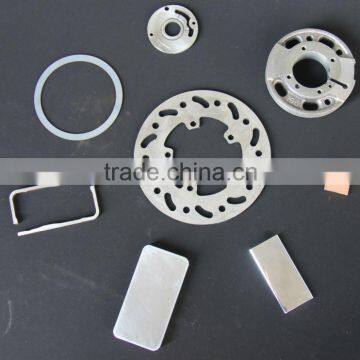

It's designd for grinding parts with two parallel grinding wheels simultaneously. Various high precision and thin parts with parallel side surfaces, no matter they are made in metal or nonmetal material, can be processed. Such as bearing, valve,seal, oil pump vane, piston ring,ceramics,etc.
Technical characters:
1. CNC system chooses Mitsubishi E60 withfriendly interactive interface and reliable performance.
2. The parts’ processingfor the upper and lower surfaces is simultaneous with high precision, and without assisted positioning ( such as disks )
3. The program about the double disc grinding and wheel dressing control makes itto get high precision grinding.
4. Wheel head feed adopts precise ball screwunit. Feeding scale value: 0.001 mm.
5. Wheel head spindle is driven byconverter, 150-950r/min.
6. The motor of the feeding carrier adoptsconverter control; the speed is 1-10rpm.
7. Filtered by magnetic and paper tapetwo steps, the coolant recycle after oil temperature controll er.
8. Adopt hinged carrier plate mechanism(Patent No:ZL200820052659.1), which is easy to open to make aconvenient change and dressing of the grinding wheel..
9. Themachine body adopts casting boxlike structure with good shock absorption andreliable rigidity and thermal stability; Wheel heads spindle are set byvertical configuration.
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
