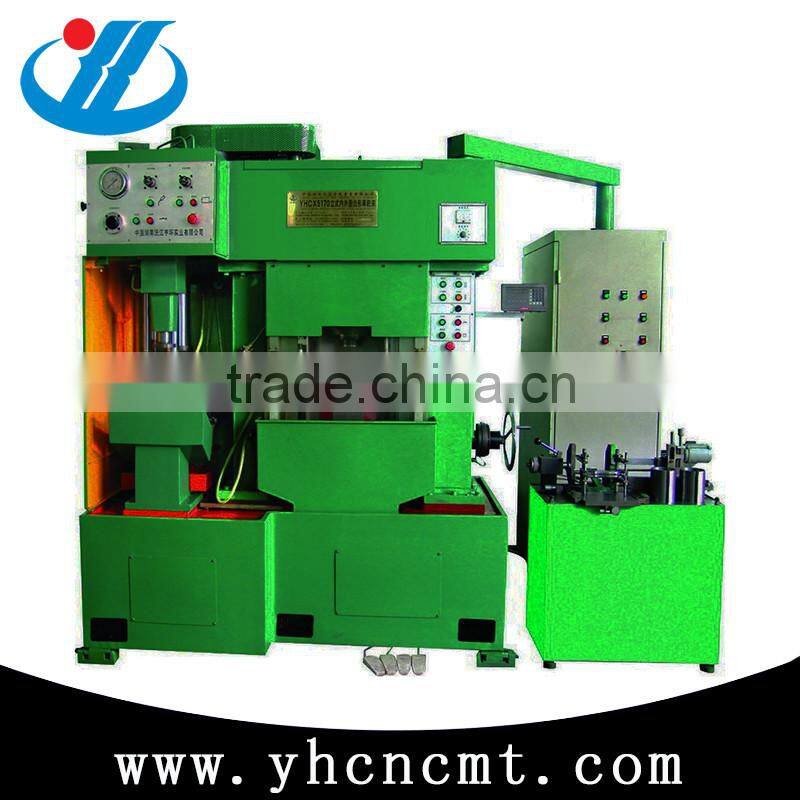

YHCX5-160 is a machine combine of two work stations which is introduced through advanced foreign technology , optimal design ,and carefully manufactured. It is customized for copy-turning inner and outer ellipses and milling the gap of the piston rings all in one machine.
Technical characters:
PLC control, main motor for the turning and milling stations adopts frequency converter for speed regulation, which showed through screen.
Adopt optical grating ruler indicating for horizontal, longitudinal feed and micro feeding of turning station.
The upward and downward feeding of turning and milling station are controlled by hydraulic system with stepless speed regulating.
90° stop-positioning is precisely controlled by hydraulic system and servo motor together.
Specifications:
Item | Unit | Specifications |
Processing dia. range | mm | 55—160 |
Height of stacked parts | mm | 150(125) |
Rotate speed of turning spindle | rpm | 5-350 (stepless regulating) |
Power of main converter motor | kw | 15 |
Radial thickness deviation of single parts | mm | ≤0.02 |
Radial thickness deviation of whole stacked rings on same position | mm | ≤0.05 |
Taper of peripheral surface for whole stacked rings | mm | ≤0.015/150 |
Linearity of gaps for wholestacked rings | mm | ≤0.02/150 |
Gap clearance deviation for whole stacked rings | mm | ≤0.10/150 |
Overall dimensions (L×W×H) | mm | 1950×1110×2450 |

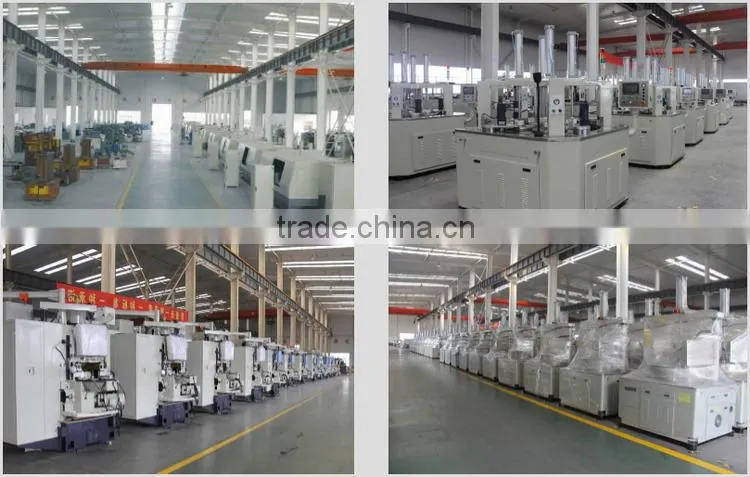

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
We want to know:
How much the laser power you need
What materials do you need to process
The Cutting size and thickness
