Home > Transportation > Truck Parts > Truck Transmission > SINOTRUK HOWO Gearbox Parts for HW19710

SINOTRUK HOWO Gearbox Parts for HW19710

Name: SINOTRUK HOWO Gearbox Parts for HW19710
Brand: Sinotruk
SKU: 129117491
Availability: InStock

SINOTRUK HOWO Gearbox Parts for HW19710 thumbnail-1

SINOTRUK HOWO Gearbox Parts for HW19710 thumbnail-2

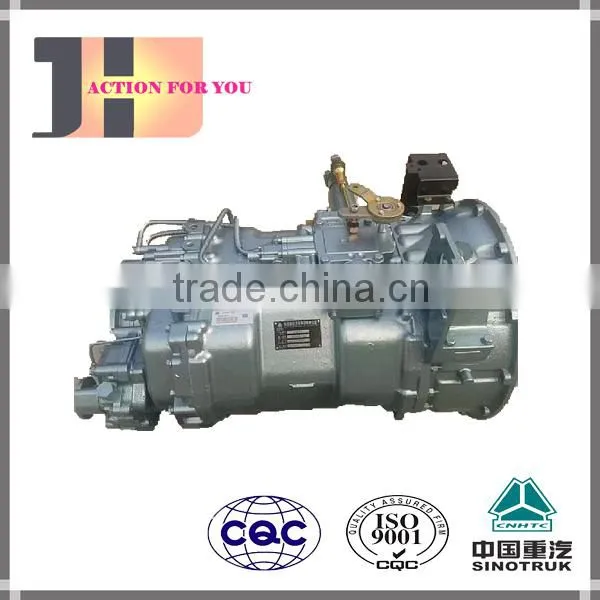

SINOTRUK HOWO Gearbox Parts for HW19710 photo-1

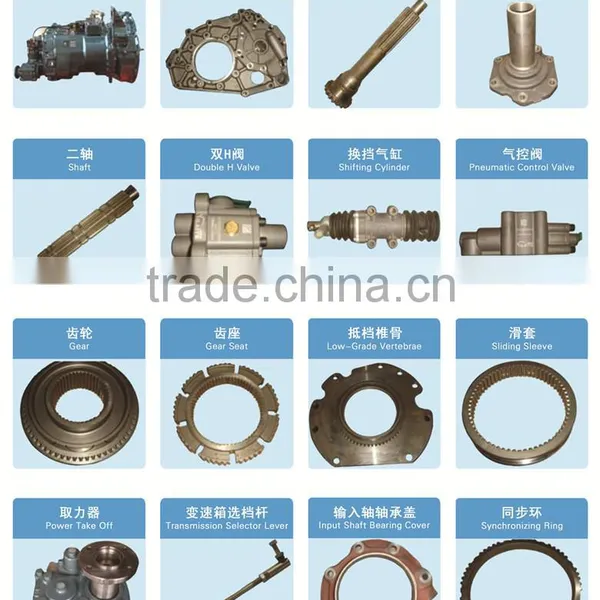

SINOTRUK HOWO Gearbox Parts for HW19710 photo-2

US$ 1 - 150 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Gear Box

Truck Model:

Other, sinotruck

OEM No.:

HW19710090402

Contact Supplier Request Quote Chat Now

Liuzhou Joyhood Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qindao Port Guangzhou Port Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Gear Box

Truck Model Other, sinotruck

OEM No. HW19710090402

Brand Name Sinotruk

Model Number HW19710

Product Description

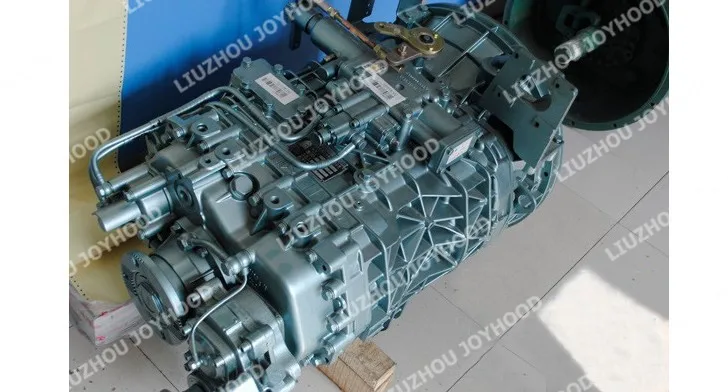

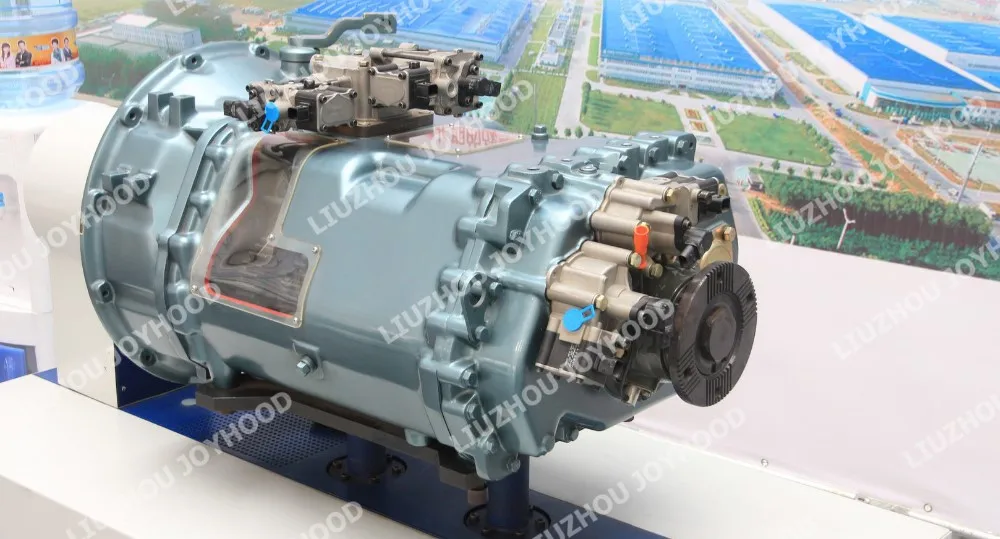

SPECIFICATIONS FOR HW19710 TRANSMISSION

Transmissiom Model	HW19710	Installation Length		843
Type	10 forward gears, 1 reverse gear (Three section shell)
Max Input Torque	1900N.m	Maximum Output Speed		2600rpm
Gearbox Ratios	Gears	Speed Ratio	Gears	Speed Ratio
	1	14.28	6	3.26
	2	10.62	7	2.43
	3	7.87	8	1.80
	4	5.87	9	1.34
	5	4.375	10	1
	Reverse Gear		13.91
Lubrication	Splash lubrication of main tank, forced lubrication of secondary tank
Lubricant Grade	85W/90GL-4 or 85W/90GL-5
Fuel Quantity	12L (12.5L if including the PTO)

Main Features

1)Main tank adopts twin-layshaft configuration, secondary tank adpots planetary transmission structure, improve assembly reliability.

2) Shell adopts vertical subdivision structure, easy to assembly and maintenance.

3) Samll cover design to make the structure more compact

4) Adpot active lubrication can adapt large slope working condition

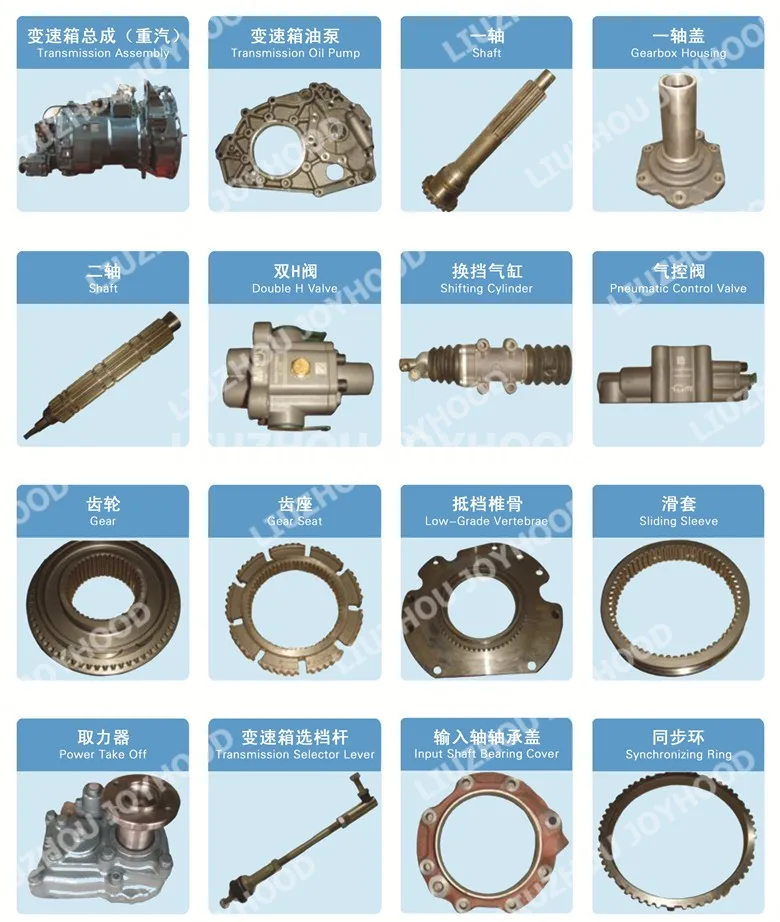

PARTS LIST FOR HW19710 TRANSMISSION

No.	Product Name	Parts Number
1	Gear Range Synchronizer	HW10
2	Gear Shift Fork	AZ2214100001
3	Fork Shaft	AZ2214100002
4	Fork Pendulum Block	WG2229100042
5	Planetary Gear Assembly	AZ2203100001+001
6	Bearing	AZ90033261820
7	Output Shaft Cover	AZ2222100023
8	Speed Sensor	WG2209280010
9	Output Flange	WG2210100018
10	Reverse Shift Fork	AZ2203220101
11	1st and 2nd shift fork assembly	AZ2203220010
12	3rd and 4th shift fork assembly	AZ2203220103
13	Main Axle Sliding Bushing	AZ2210040210
14	Washer	AZ2210040012
15	Main Shaft Stop Washer	AZ2210040002
16	Adjusting Gasket	AZ2210040024
17	Hex Key	AZ2229040211
18	Small Cover	AZ2203210040+001
19	Input Shaft	WG2210020105
20	Synchronizer Block	WG2229020001
21	Main Shaft	AZ2203040009
22	Main Axle Transmission 1st Gear	AZ2210040230
23	Main Axle Transmission 2nd Gear	AZ2210040206
24	Main Axle Transmission 3rd Gear	AZ2210040225
25	Main Axle Transmission 4th Gear	AZ2210040224
26	One Shaft Gear	AZ2210020222
27	Countershaft (right)	AZ2210030215
28	Countershaft (left)	AZ2210030220
29	Countershaft 2nd Gear	AZ2210030203
30	Countershaft 3rd Gear	AZ2210030224
31	Countershaft 4th Gear	AZ2210030226
32	Countershaft Driven Gear	AZ2210030227

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Delivery Service

1. Internation Express: Below 150kg Fast and convenient such as UPS, DHL,TNT, EMS etc.
2. Air transportation: 150kg-500kg Save the transportation time
3. Sea transportation: Above 500kg Save the transportation cost

Quality Guanrantee

1. If the quality issue occurs due to manufacturing defects or materials defects(except for man-made reason) within a certain use period, our company should respond within 3 working days after receiving notification, and our company should cover losses and costs.

2. The General parts warranty period is 90 days, Major parts warranty period is 180 days.

Packing & Delivery

Packaging
Packaging Details	The normal package is Waterproof membrane, plywood box or Carton.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
