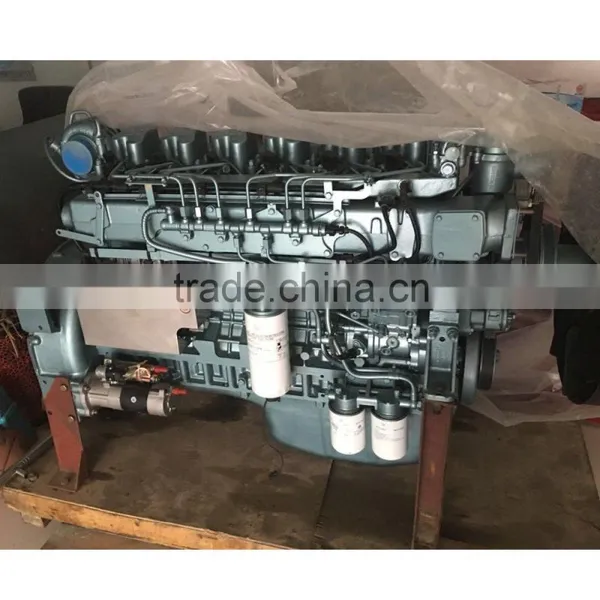

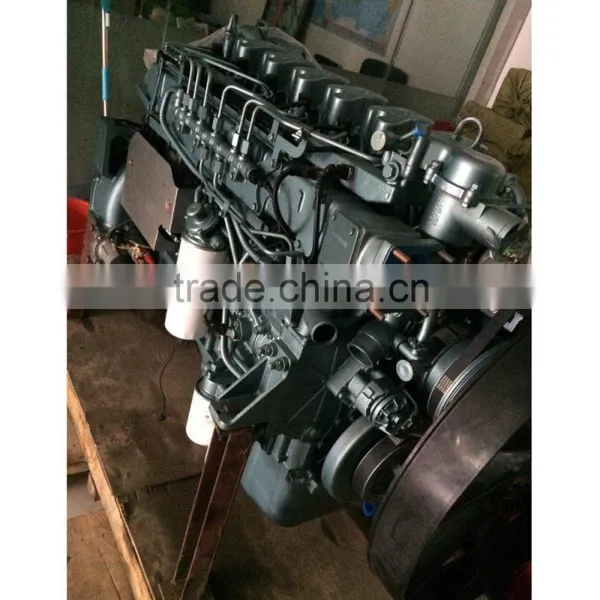

SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane

SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane thumbnail-1
SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane thumbnail-2
SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane thumbnail-3
SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane photo-1
SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane photo-2
SINOTRUK D10 Special Diesel Engine 300HP 310HP 320HP 420HP 340HP 380HP 6 Cylinders for Crane photo-3
US$ 5,000 - 25,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, crane
Cylinder:
Multi-cylinder
Contact Supplier Request Quote Chat Now
Liuzhou Joyhood Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao Port Guangzhou Port Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, crane
Cylinder Multi-cylinder
Start Electric Start
Brand Name sinotruk
Model Number D10
Weight 900KG
Certification CCS IMO
Warranty 1 Year
Product Description

                                                             SPECIFICATIONS FOR D10 ENGINE

Model
D10.27
D10.29
D10.30
D10.31
D10.32
D10.34
D10.38
Type
Inline 6 cylinder, water cooled, supercharged inter cooler and high pressure commom
Valve/ Cylinder
                                                                        2
Cylinder Bore x
Stroke (mm)

                                                                  126x130
Displacement(L)
                                                                     9.726
Pressure Ratio
(mm)

                                                                    17.5：1
Rate Power Kw
(PS）
198/270
213/290
219/300
226/310
235/320
249/340
279/380
Rate Speed
(r/min)

                                                                      2200
Max.Torque N.m
1190
1290
1190
1240
1250
1350
1500
Max.Torque
Speed r/min

                                                                 1200~1600
Minfuel Consumption Ratio g/kw.h

                                                                       ≤192
Net Weight (KG)
                                                                        900
Emission Level
                                                                      EUR03

Main Features

1) Achieve the road National standard IV - V, and the non-road National standard III emission regulations

2) Reliable and cost-effective high-power diesel engine

3) Original engine. Quality guarantee, Excellence performance.Through more than a lot of working condition of work spectrum collection research, optimization of the whole machine is frequent workspace fuel consumption, fuel consumption levels greatly reduced


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1600(L) * 600 (W) * 1500 (D)
Weight
1.0T



Packaging Details
The normal package is plywood box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.
