SINOTRUK Special Diesel Engine Brand New and Hotsale Howo D10 Series Engine

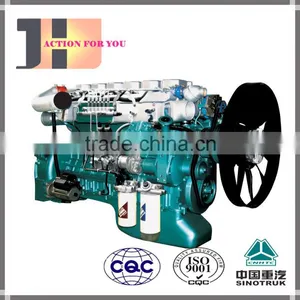

SINOTRUK Special Diesel Engine Brand New and Hotsale Howo D10 Series Engine thumbnail-1
SINOTRUK Special Diesel Engine Brand New and Hotsale Howo D10 Series Engine thumbnail-2
SINOTRUK Special Diesel Engine Brand New and Hotsale Howo D10 Series Engine photo-1

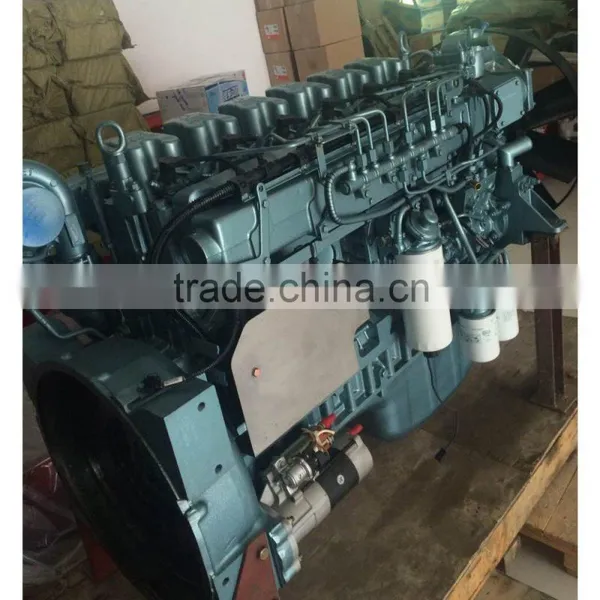

SINOTRUK Special Diesel Engine Brand New and Hotsale Howo D10 Series Engine photo-2
US$ 5,000 - 25,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, crane
Cylinder:
Multi-cylinder
Contact Supplier Request Quote Chat Now
Liuzhou Joyhood Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao Port Guangzhou Port Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, crane
Cylinder Multi-cylinder
Start Electric Start
Brand Name sinotruk
Model Number D10
Weight 900KG
Certification CCS IMO
Warranty 1 Year
After-sales Service Provided Overseas third-party support available
products name

SINOTRUK special diesel engine Brand New and hotsale Howo D10 series engine

Applied to Crane Heavy truck, and so on .

Product Description

                                                             SPECIFICATIONS FOR D10 ENGINE

Model
D10.27
D10.29
D10.30
D10.31
D10.32
D10.34
D10.38
Type
Inline 6 cylinder, water cooled, supercharged inter cooler and high pressure commom
Valve/ Cylinder
                                                                        2
Cylinder Bore x
Stroke (mm)

                                                                  126x130
Displacement(L)
                                                                     9.726
Pressure Ratio
(mm)

                                                                    17.5：1
Rate Power Kw
(PS）
198/270
213/290
219/300
226/310
235/320
249/340
279/380
Rate Speed
(r/min)

                                                                      2200
Max.Torque N.m
1190
1290
1190
1240
1250
1350
1500
Max.Torque
Speed r/min

                                                                 1200~1600
Minfuel Consumption Ratio g/kw.h

                                                                       ≤192
Net Weight (KG)
                                                                        900
Emission Level
                                                                      EUR03

Main Features

1) Achieve the road National standard IV - V, and the non-road National standard III emission regulations

2) Reliable and cost-effective high-power diesel engine

3) Original engine. Quality guarantee, Excellence performance.Through more than a lot of working condition of work spectrum collection research, optimization of the whole machine is frequent workspace fuel consumption, fuel consumption levels greatly reduced


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1600(L) * 600 (W) * 1500 (D)
Weight
1.0T



Packaging Details
The normal package is plywood box(Size: L*W*H).If container is too tighter,we will use PE film for packing or pack it according to customers special request.
FAQ
Contact Us

Q1. How about the quality of SINOTRUK Howo products?


A:All our spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the TS16949 qualification certification, the quality is 100% guaranteed.

Q2. How about your delivery time?


A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q3. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q4. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery
