Specifications

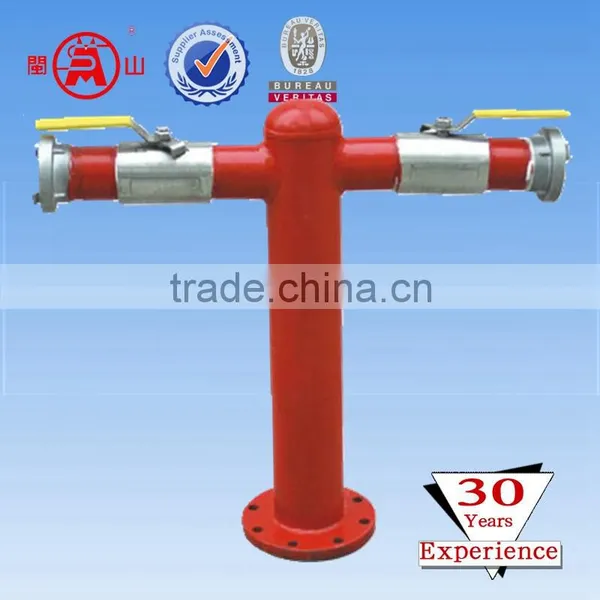

1.Foam hydrant landing fire hydrant2.Outlet:2*DN65 internal lug pin coupling
3.Test pressure:1.6MPa
4.Nominal Pressure:2.4MP
1.Description
1.Material: ductile cast iron for outlet cap,brass for double outlet, stainless steel for ball valve, seamless steel for body
2.Liquid Material: Water and foam
3.Operation: Fire fighting, fire protection, fire suppression
4.Diameter:50/65
5. Inlet :100mm
6. 2*DN65 internal lug pin coupling
7.Test pressure : 1.6MPa
8. Nominal Pressure : 2.4MPa

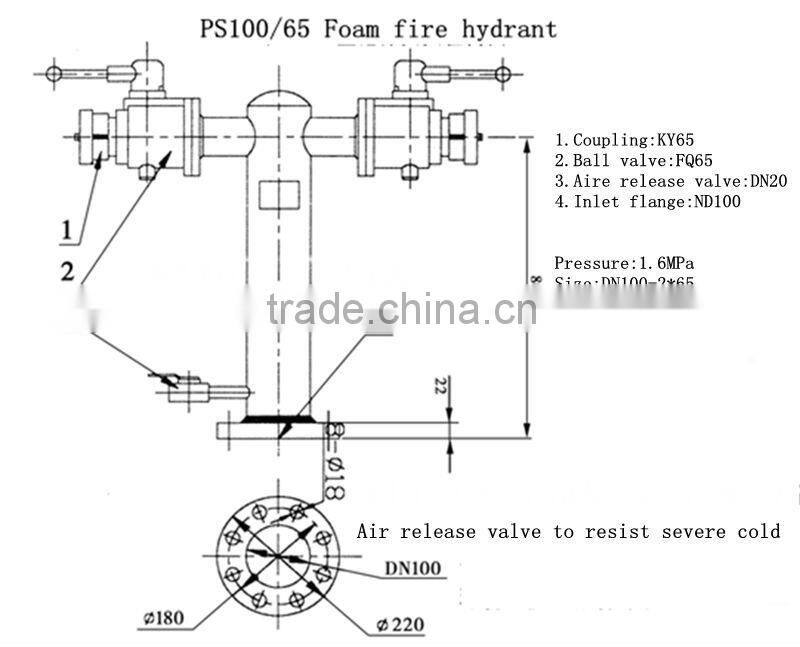

2.Sizes and parameters
Model | Nominal Pressure | Outside dimension | Water inlet | Water outlet | ||||||
length | width | height | type | diameter | quantity | type | diameter(mm) | quantity | ||
PS100-1.6 | 1.6 MPa | 300 | 350 | 1525 | Flange pipe | 100 | 1 | buckle | 65 | 2 |
external thread | 100 | 1 | ||||||||
PS100-1.0 | 1.0 MPa | 300 | 350 | 1515 | Socket pipe | 100 | 1 | buckle | 65 | 2 |
external thread | 100 | 1 | ||||||||
SX65-1.6 | 1.6 MPa | 475 | 300 | 1050 | Flange pipe | 100 | 1 | buckle | 65 | 2 |
SX65-1.0 | 1.0 MPa | 475 | 300 | 1040 | Socket pipe | 100 | 1 | external thread | 100 | 1 |

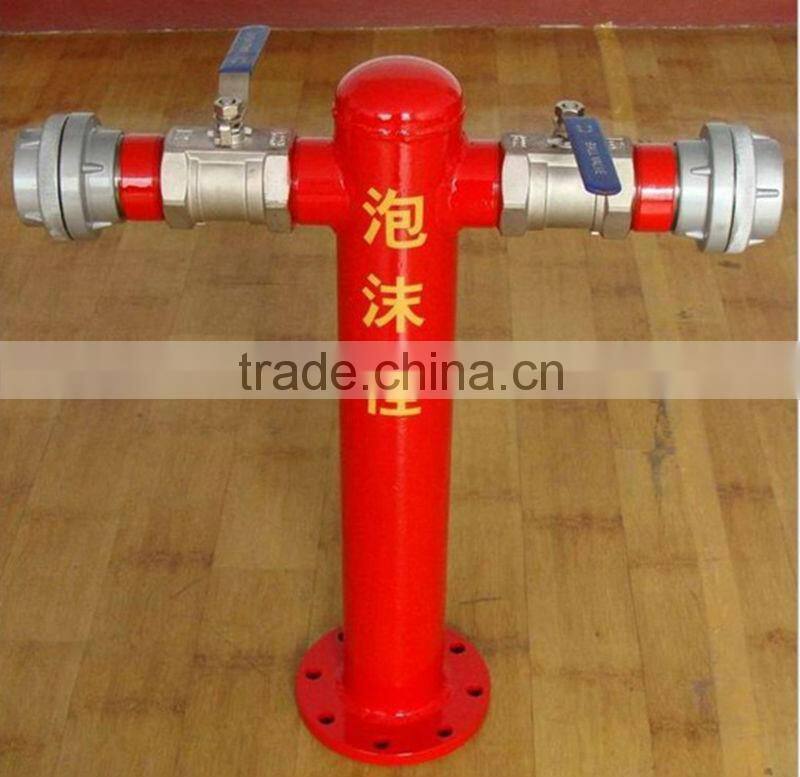

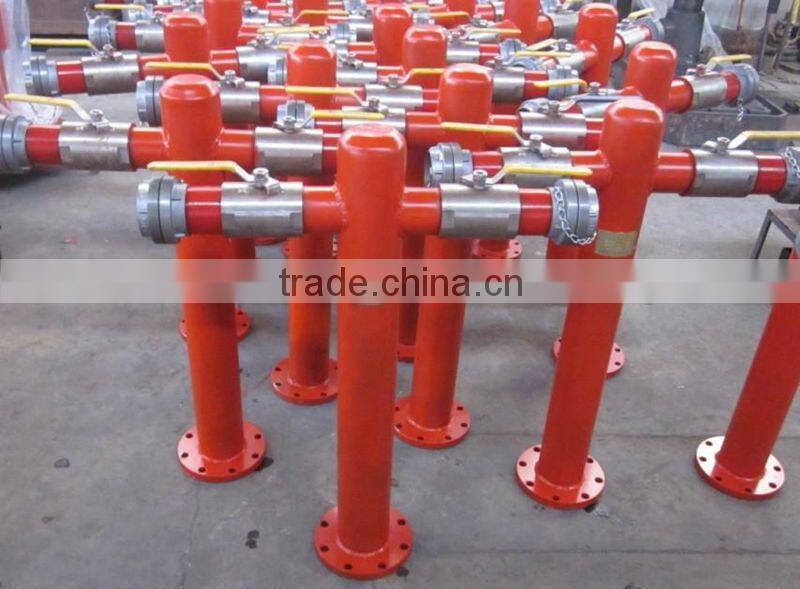

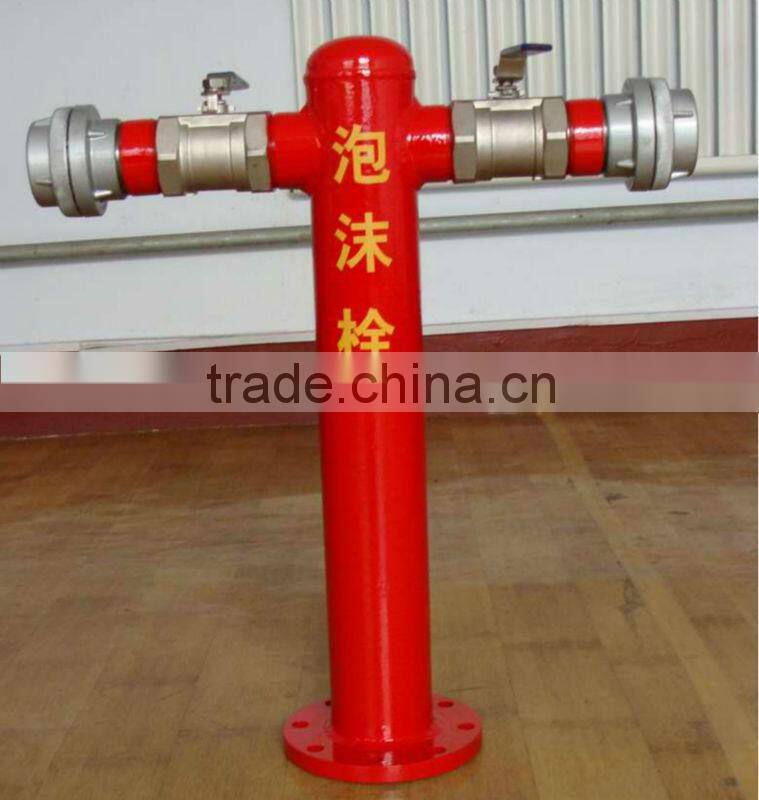

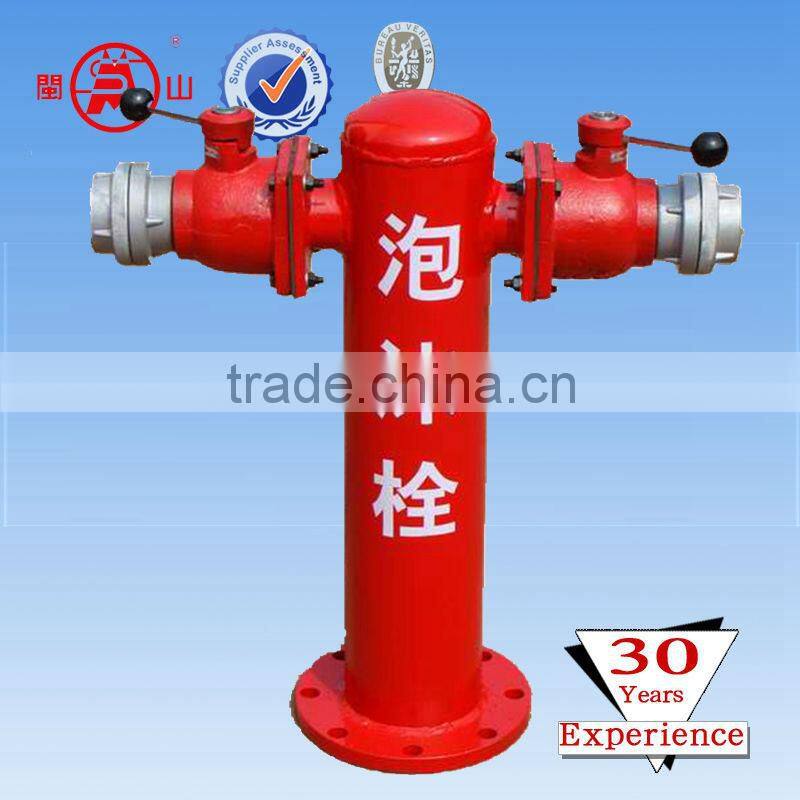

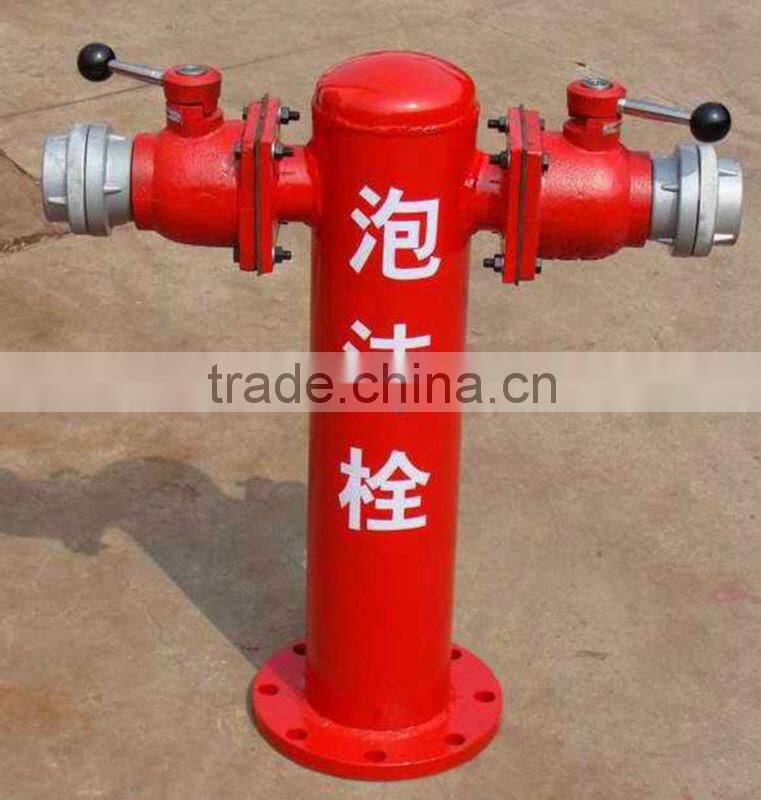

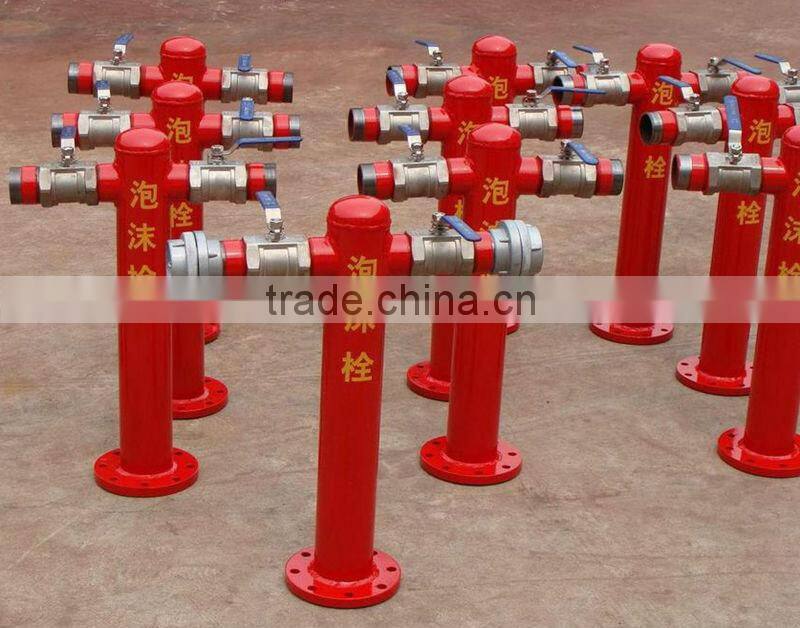

3.Images
4.Workshop process
5.Packings
