Specifications

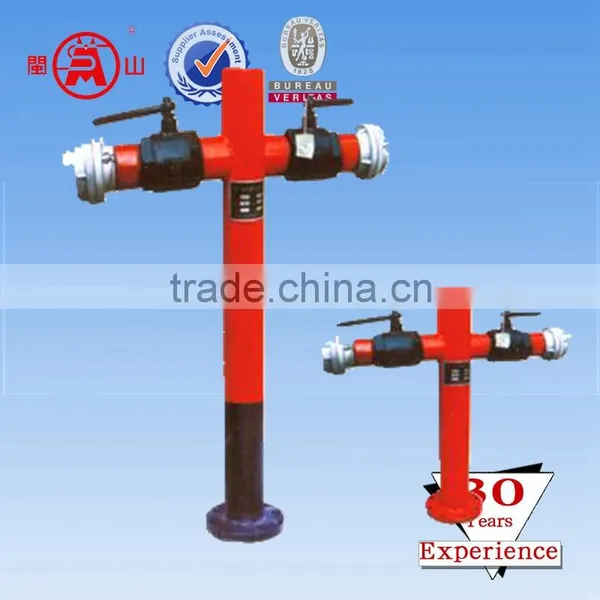

1.Foam hydrant landing fire hydrant2.Outlet:2*DN65 internal lug pin coupling
3.Test pressure:1.6MPa
4.Nominal Pressure:2.4MP
1.Description
1.Material: ductile cast iron for outlet cap,brass for double outlet, stainless steel for ball valve, seamless steel for body
2.Liquid Material: Water and foam
3.Operation: Fire fighting, fire protection, fire suppression
4.Diameter:50/65
5. Inlet :100mm
6. 2*DN65 internal lug pin coupling
7.Test pressure : 1.6MPa
8. Nominal Pressure : 2.4MPa
2.Sizes and parameters
Model |
Nominal Pressure |
Outside dimension |
Water inlet |
Water outlet |
||||||
length |
width |
height |
type |
diameter |
quantity |
type |
diameter(mm) |
quantity |
||
PS100-1.6 |
1.6 MPa |
300 |
350 |
1525 |
Flange pipe |
100 |
1 |
buckle |
65 |
2 |
external thread |
100 |
1 |
||||||||
PS100-1.0 |
1.0 MPa |
300 |
350 |
1515 |
Socket pipe |
100 |
1 |
buckle |
65 |
2 |
external thread |
100 |
1 |
||||||||
SX65-1.6 |
1.6 MPa |
475 |
300 |
1050 |
Flange pipe |
100 |
1 |
buckle |
65 |
2 |
SX65-1.0 |
1.0 MPa |
475 |
300 |
1040 |
Socket pipe |
100 |
1 |
external thread |
100 |
1 |
3.Images
4.Workshop process
5.Packings
