70 SMD LED Waterproof Work Light (rechargeable Li-ion Battery)

Specifications

1.The waterproof grade is IP66 and the work light can be washed with water;
2.This work light can be dropped from 1 meter high;

70 SMD LED waterproof work light (rechargeable Li-ion battery)

1.The waterproof grade is IP66 and the work light can be washed with water;

2.This work light can be dropped from 1 meter high;

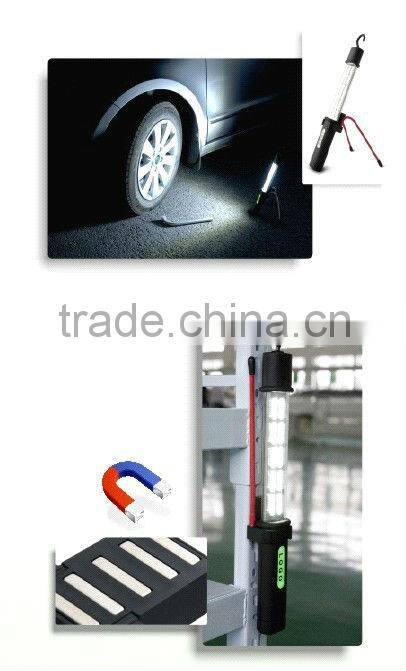

3. Strong magnetic bipod(we have patent for it);

4. Long-life rechargeable Li-ion battery(4200mAH),more than 800 times charging and discharging cycles and it would remain all the functions even if being stored properly for 2 years from the manufacture date;

5.Six layers of lithium battery charge and discharge protection;

6.3.5 hours working time(be fully charged) and the charger is powerful enough to operate light while charging;

7.70 SME-LED, white warm LED with 440 Lm light intensity and 6500K colo(u)r temperature;

8.Unique optical path design, make the light distribution more reasonable;

9.Artistic way of battery level indicator;

10.Gradually bright lights can effectively protect eyes from the harm of sudden bright beam.

Product Manual

--------------------------------------

1. 1.     Product Name:70 SMD LED waterproof work light

                  (rechargeable Li-ion battery)

Model: CPT-LA03

1. 2.    Basic Parameters

Battery:	Rechargeable Li-ion battery
Battery Voltage:	3.6V
Battery Capacitance:	4.2AH
Grade of  Waterproof:	IP66
Full Charge Time:	3.5H
Working Time:	3.5H
Light Intensity:	380Lm(max)
Charging Voltage:	DC 5.5V
Charging Current:	2A(Max)
Charge and Discharge Cycles:	>800Times
Number of LED Bulbs:	70(white)
LED Life Time:	100,000H
Colo(u)r Temperature:	6500K(white LED)
Charging Temperature:	-5°C -- 45°C
Discharging Temperature:	-20°C -- 50°C
Storage Temperature:	-20°C -- 80°C
The longest time keep in idle :	2 Years
Dimensions(L*W*D):	415mm x 57mm x 41mm
Net Weight:	0.35KG





























































Remarks:

Ingress protection: Protected against strong jests of water(e.g. For using on ship decks) and totally protected against dust;

6 layers of lithium battery charge and discharge protection;

It would remain all the functions even if being stored properly for 2 years from the manufacture date.





1. 3.    Instruction of Basic Operation

3.1. Operation of Light Switch

Press the light switch button on the end of handle to turn on/off the light.

Remarks: Press keypad once to turn on and again to switch off.

3.2. Operation of Charging

Plug the wire head of adapter into φ5.5DC jack at the end of handle to charge the battery. The indicator on the handle will show the charging condition.

Remarks:

The indicator light turns red while charging;
The indicator light turns green when the battery is fully charged;

The indicator light would remain red if it is working during the process of charging;

Charger is powerful enough to operate light while charging.

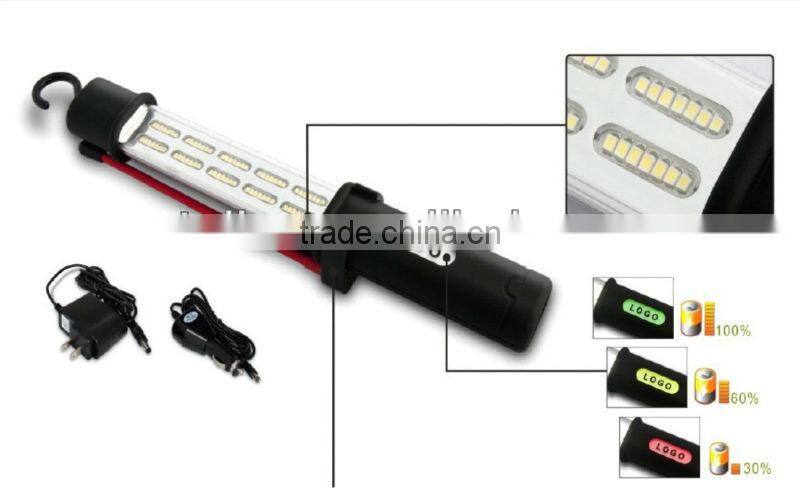

3.3.Battery Level Indicator:

    The back light on the indicator provides the condition of the battery state, please refer to the detail instructions below.

  Ø 100% battery voltage the color of the back light is green

--Working time: 2.5Hrs-3.5Hrs

   Ø60% battery voltage the color turns to yellow

-- Working time: 1.5Hrs-2.5Hrs

   Ø 30% battery voltage the color is red.

-- Red light: low capacity(Working time: 0.5Hrs-1.5Hrs )

-- Red strobe light: little capacity(Working time: ≤0.5Hrs)

-- Red strobe light indicates a low battery that needs charging.





!!!Caution:

1. Once the charging voltage reaches  ≥6.5V and ≤14V, the battery stops charging and the indicator will show a green strobe light!This battery also can be recharged under the suitable charging voltages.(This guarantees to protect the battery to be rechargeable and safe.).

2. Once the charging voltage reaches >14V and ≤30V, the battery will stop charging and still safe , but the work light may lose it’s rechargeable function(the battery can not be charged).

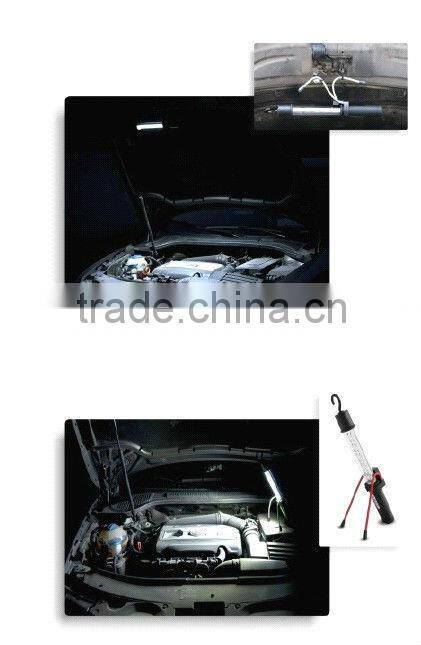

                                                             Detail Pictrue
