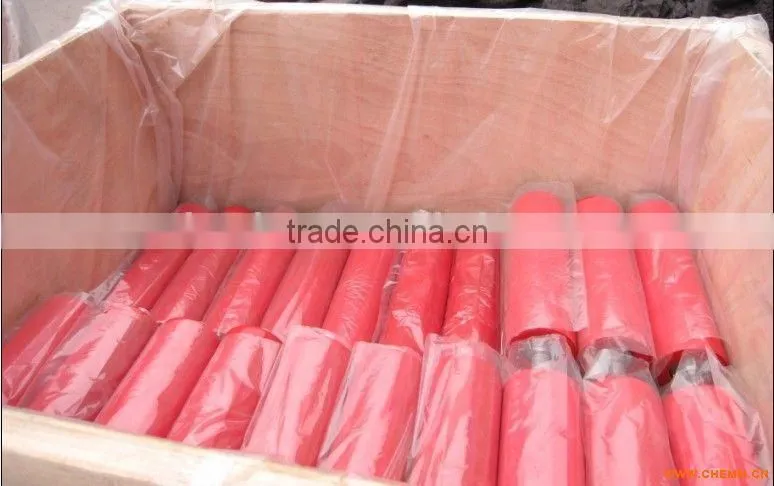

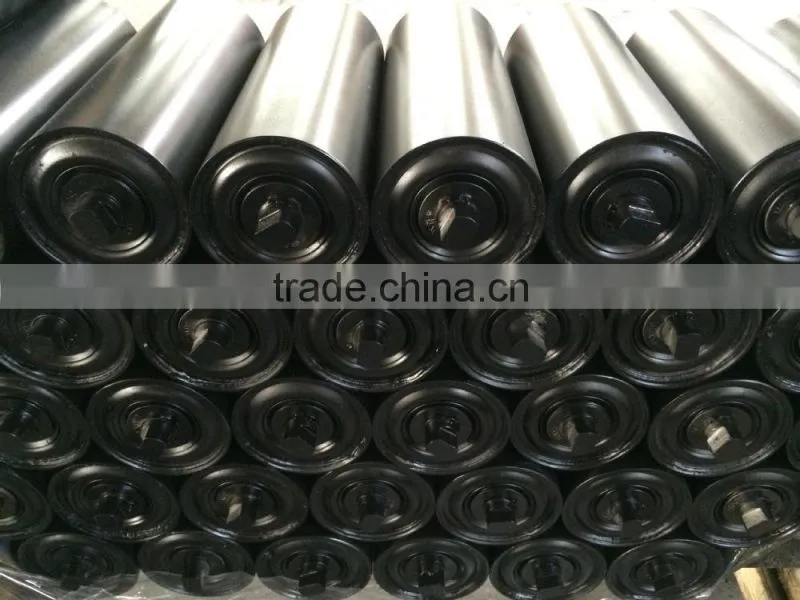

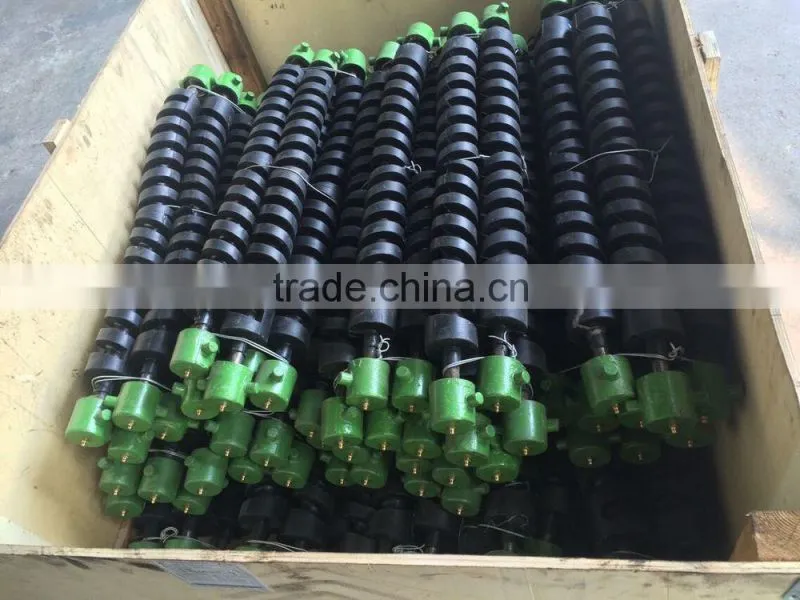

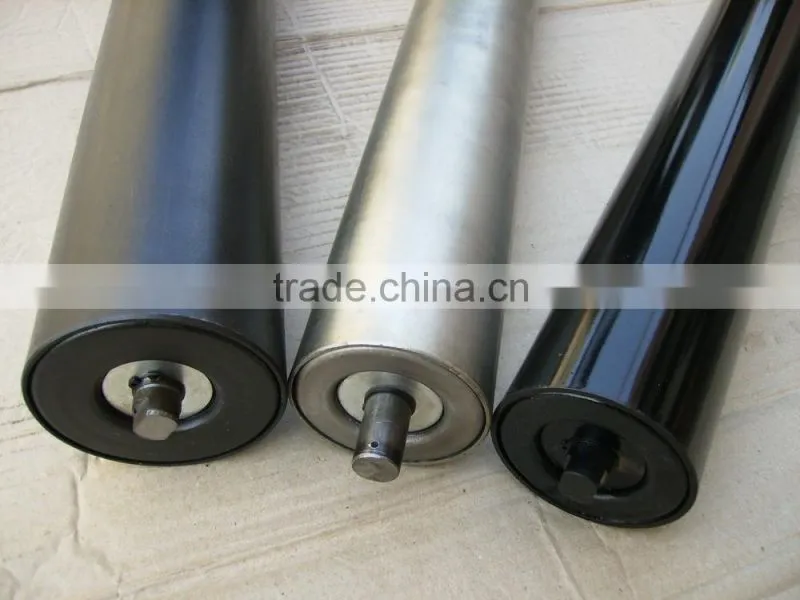

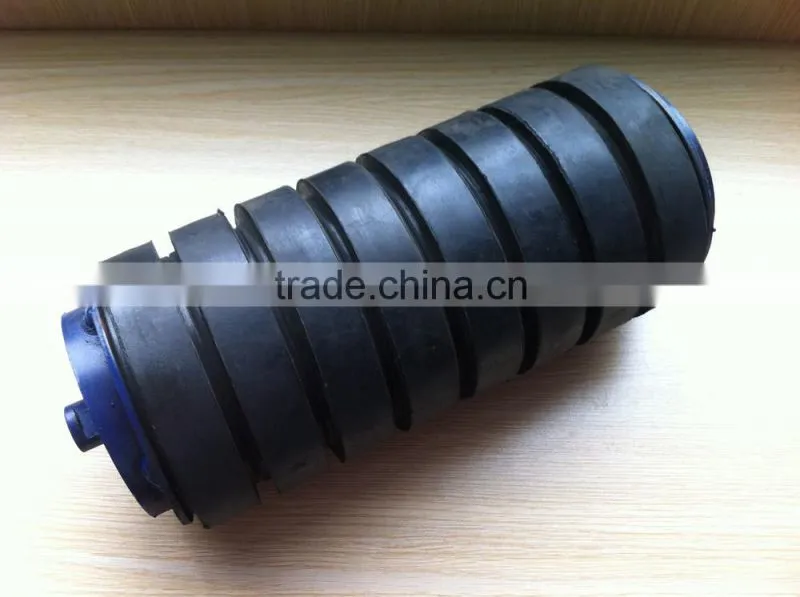

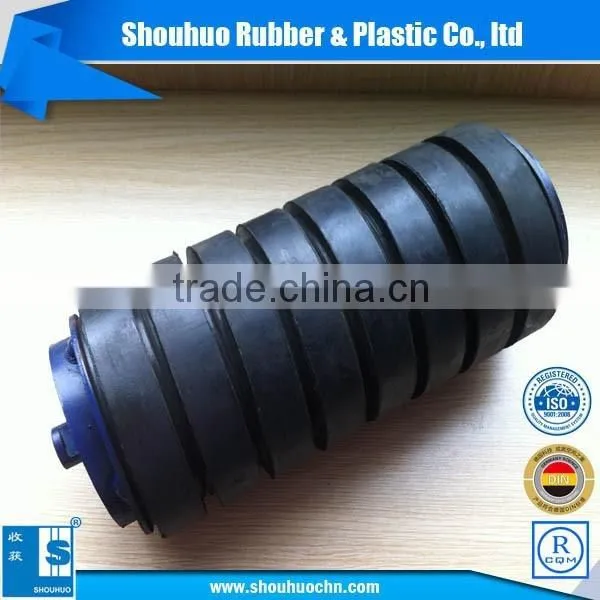

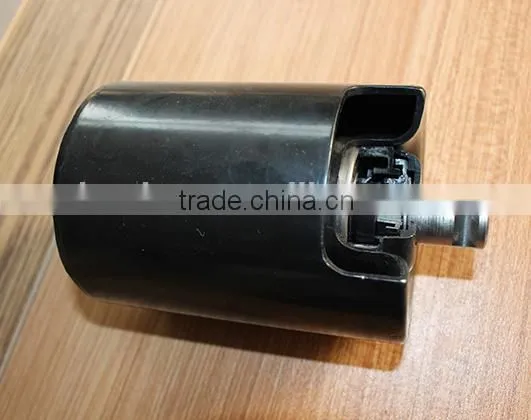

impact idler
Advantages of our conveyor roller:
(1)Easy installation and nice flexibility;
(2)Low friction coefficient;
(3)Dust- and water-proof;
(4)Fine welding technique ensure roller with low vibration and noise;
(5)Electrostatic spraying technic makes the roller more durable and good-looking;
6)Strict inspection standard ensures our high quality product.
Roller Major technical parameters:
Roller resistance to rotation
Diameter of carrier roller mm |
Length of carrier roller mm |
Resistance to rotation N |
|
φ76 |
non-contact seal |
≤460 |
2.0 |
>460 |
2.5 |
||
φ89 |
non-contact seal |
≤460 |
2.5 |
>460 |
3.0 |
||
φ108 |
non-contact seal |
≤800 |
3.0 |
>800 |
3.5 |
||
φ133 |
non-contact seal |
≤800 |
3.0 |
>800 |
3.5 |
||
φ159 |
non-contact seal |
≤800 |
3.0 |
>800 |
3.5 |
||
The amount of radial run-out
Diameter of carrier roller mm |
Length of carrier roller mm |
||
<460 |
460-950 |
>950-1600 |
|
φ76—φ108 |
0.5 |
0.7 |
1.30 |
φ133—φ159 |
0.7 |
1.00 |
1.50 |
Roller Axial load
Diameter of axle of carrier roller |
Imposed axial load KN |
≤20 |
10 |
≥25 |
15 |
Roller'S Axial float
Under the impact of axial load of 500N,the axial float figure≤1.2mm
Roller Dropping intensity
After experiments of horizontal and vertical drop of carrier roller,the following requirements should be met:
- All components and welded joints cannot be damaged or taken apart;
- Axial displacement of roller carrier after falling should be not more than1.2mm;
- The body and bearing of carrier roller should never be loosing;
- The resistance to rotation should be not more than1.5 times of the figure stipulated in table 1.
Roller Sealability in water
After revolving at the rate of 1450t/min for 24 hours in water,the water inflow of the carrier roller with non-contact seal device is not more than150g.
Roller Life span
When reinforced service life of carrier roller is converted into the actual service life,the time span is no less than 20000h.The damage rate of carrier roller is no larger than 10%.
Roller Range of application
Our product is widely used in such surrounding as underground coal mine and that with severe open-air dust and high corrosivity.These places include mines,power plants,steel mills,stone factory,cement plant,coking plant,coal washing plant,saltworks,soda ash factory,chemical fertilizer plant and wharfs.
1.About us:
1. Company Name: Taizhou Shouhuo Rubber & Plastic Co., Ltd.
2. Years in the line: Since the year 1985,30 years history with 15 years export experience.
3. Location: Taizhou-the city of RUBBER PRODUCTS, 120km away from Ningbo Port.
4. Employee: 238 staff, including 18 engineers.
5. Scale: one of the three biggest manufactuers for conveyor belt in Taizhou.
6. Production Capacity: 900,000 meters per year.
7. Main Market: Europe,North America,South Americe,Southeast Asia, Russia, Middle East.
2.Our Certificate:
3.Exhibitions and E-Business:
Why choose us?
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory manufacturing rubber conveyor belt, best production capability ,strict quality control, Best Service .
3.We are a manufacturer with 30 years history with 15 years export experience. .
4.100% QC inspection Before Shippment.
5. ISO certificate listed,competitve price.
