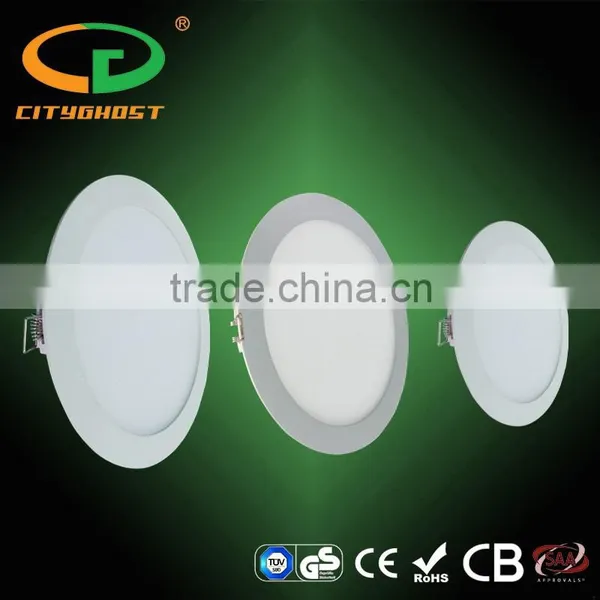

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-1
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-2
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-3
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-4
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-5
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White thumbnail-6
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-1
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-2
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-3
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-4
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-5
9W 12W 15W 18W Dim or Non Dim LED Down Light Warm White, Daylight or Cool White photo-6
US$ 25 - 26 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
0.2W SMD3014
Warranty(Years):
3
Input Voltage(V):
90-265
Contact Supplier Request Quote Chat Now
Shenzhen Cityghost Lighting Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 0.2W SMD3014
Warranty(Years) 3
Input Voltage(V) 90-265
Lamp Power(W) 15
Lamp Luminous Flux(lm) 1125
Lamp Luminous Efficiency(lm/w) 75
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification BV, CE, EMC, GS, LVD, SAA
Place of Origin Guangdong, China
Brand Name CITYGHOST
Model Number R24-15A



§ 9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

Product Description



Specifications:

Specification / Model R22-15A R24-15A R30-18A
Lighting source 0.2W SMD3014 LED
Dimension ( mm) dia220*H13 dia240*H13 dia300*H13
Cut hole(mm) 200 220 280
Power consumption 15W 15W 18W
LED QTY 75pcs 75 pcs 90 pcs
Input voltage (Driver) 90-265VAC/50-60HZ
Output voltage (Driver)

24-42V DC

24-42V DC

16-28V DC
Constant current 350mA 350mA 840mA
Efficiency ≥90%
PF ≥0.9
CCT 3000K, 4000K,5000K,6000K
Luminous 900 lm 1125 lm 1530 lm
Luminescence efficiency 75 lm/w 75 lm/w 85 lm/w
Bean-angle  120 °
Ra  Ra ≥ 80
Temperature rising < 20 °C
Net Weight (includes driver) 0.5KG 0.6KG 1.0KG
Protection grade  IP44
Insulation class  CLASS II
Certificate CE, CB, GS, RoHS

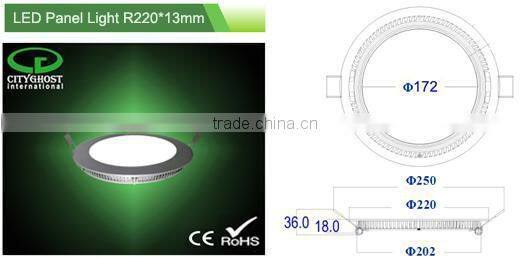

 Technical drawing

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

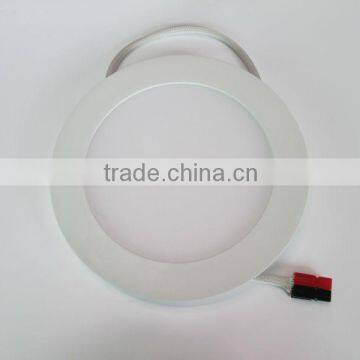

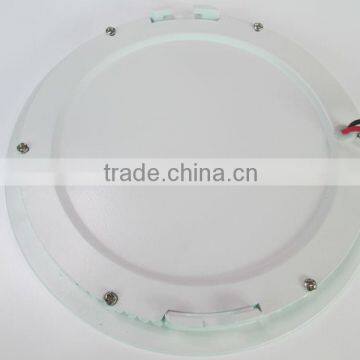

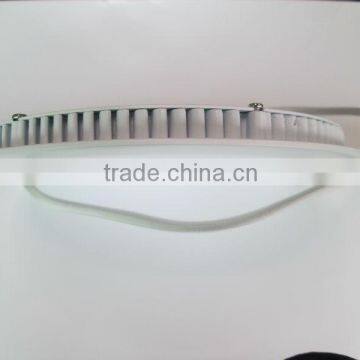

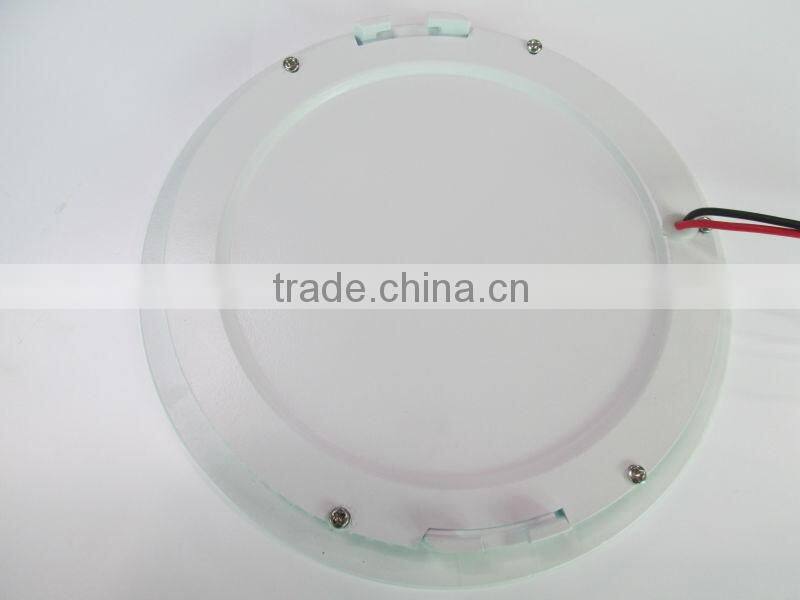

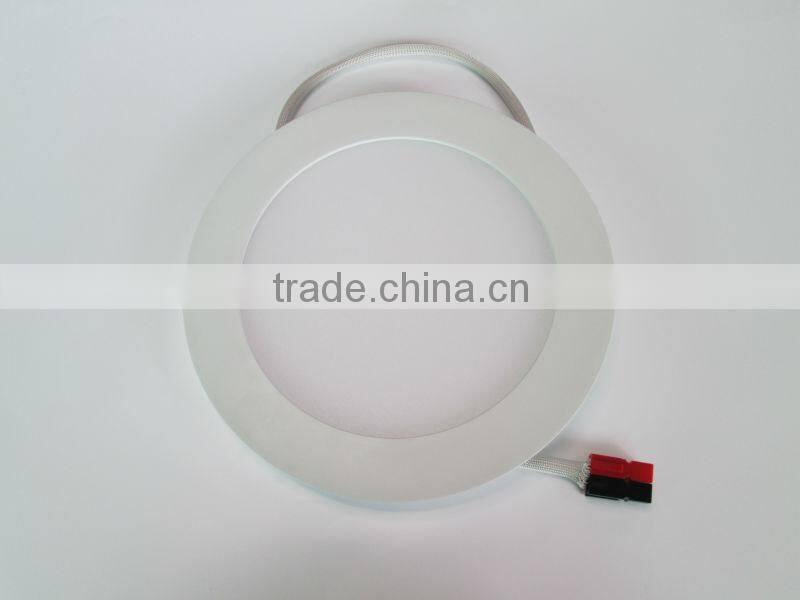

White frame:

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

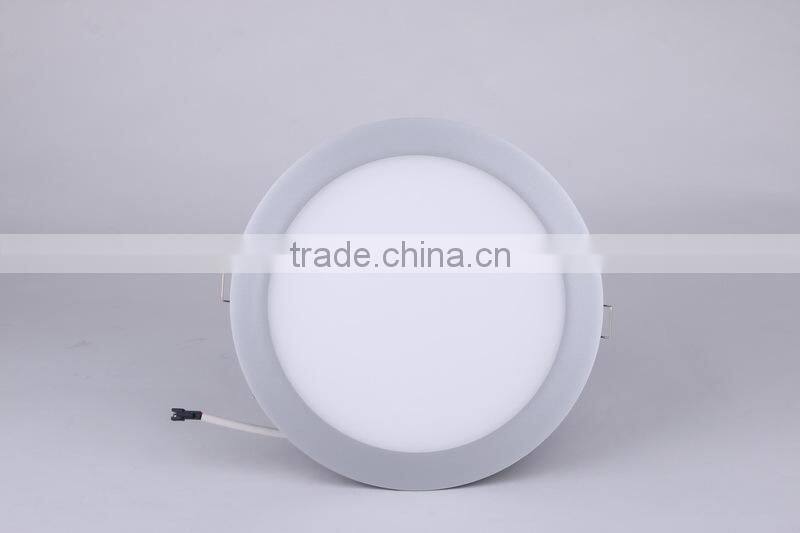

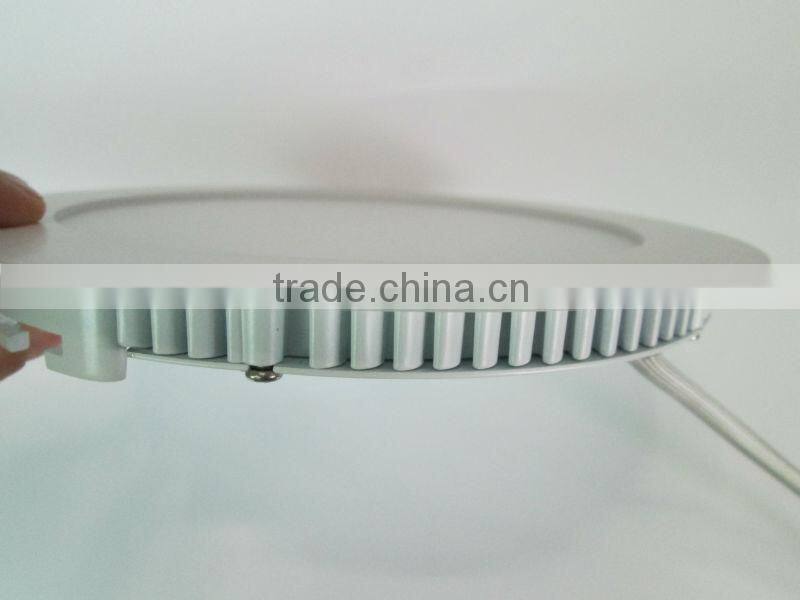

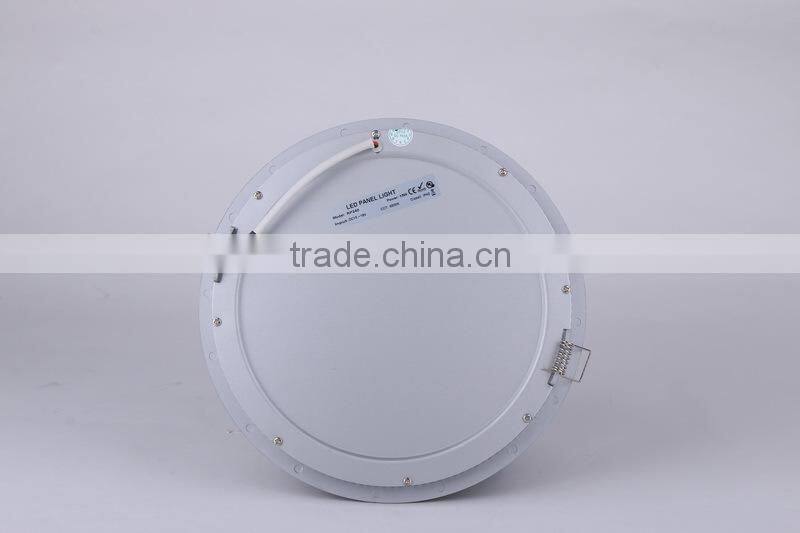

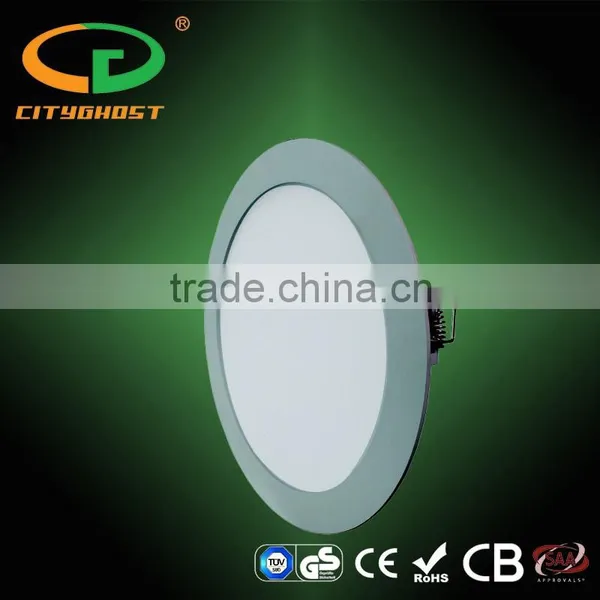

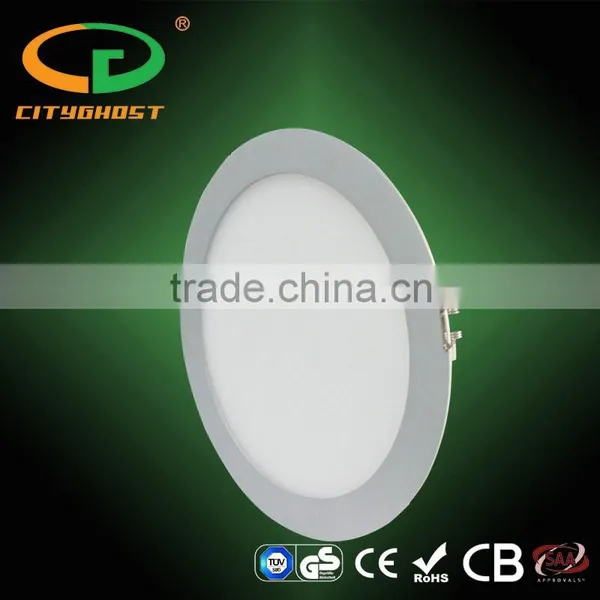

Silver frame

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

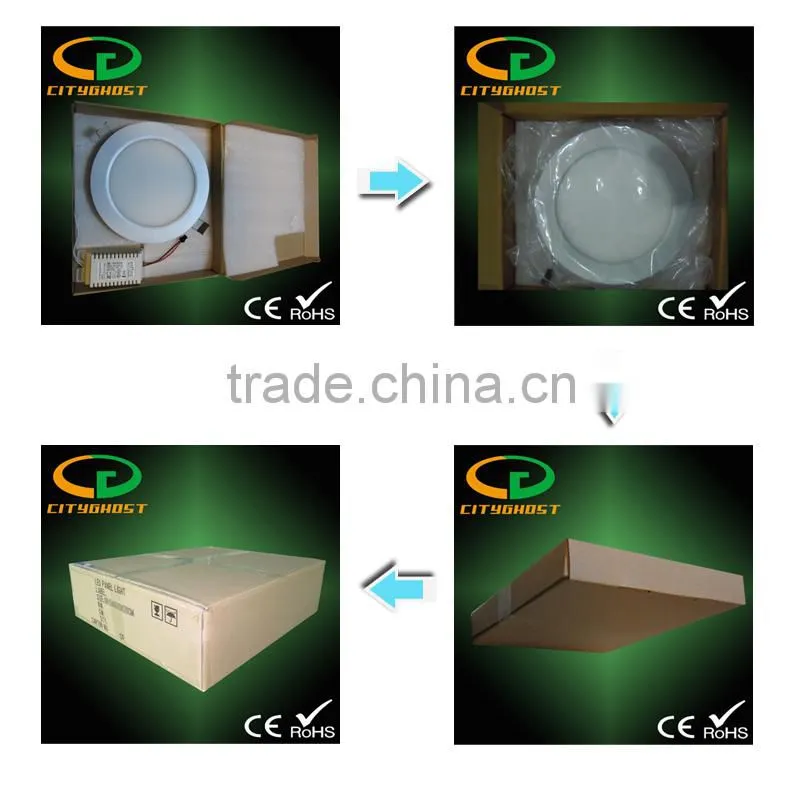

Packaging & Shipping

Package specifics:

Size of inner carton:37*32*3.5CM

Size of master carton:38.2*33.2*37.5CM

G.W of inner carton:1.5KG

G.W of master carton:16.5KG

Packing quantity:10PCS/mater carton





Application

Cityghost LED Panel Lights are suitable for both domestic and commercial applications.They are ideal for all types of commercial LED Lighting projects in offices, schools, hotels, hospitals, shopping malls, kitchens and providing a superior light for any environment.

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

Company Information

Company Profile

Shenzhen Cityghost Technology limited was founded in 2008. We devote ourselves to researching, developing and promoting premier LED lighting products, aim at building outstanding national brand and try best to contribute society.

Our company specializes in developing, producing and selling LED lighting products. With outstanding engineers team, advanced testing equipments, sufficient designing and manufacturing experience, we are able to produce best quality LED lighting products. Our main products are LED panel lights and LED down lights, which are widely applied in office building, shopping mall, factory, hotel, hospital, school and residential house and other indoor places. Our company passed the audit of TÜV Rheinland and Bureau Veritas and certified to be compliant with the GMC Guangdong Standards. So far, our products are certified by CE(EMC/LVD) , RoHS standard and passed IEC60695-2-12 850°C glow wire test, especially our invisible panel light and frameless panel light are our patented products. Our products are sold popularly all over the world and our main market is Europe and North America. It is our business philosophy that is to create biggest value for customers. Our products and service enjoy a long-term recognition from customers. Cityghost has become the symbol of top level LED lighting product.

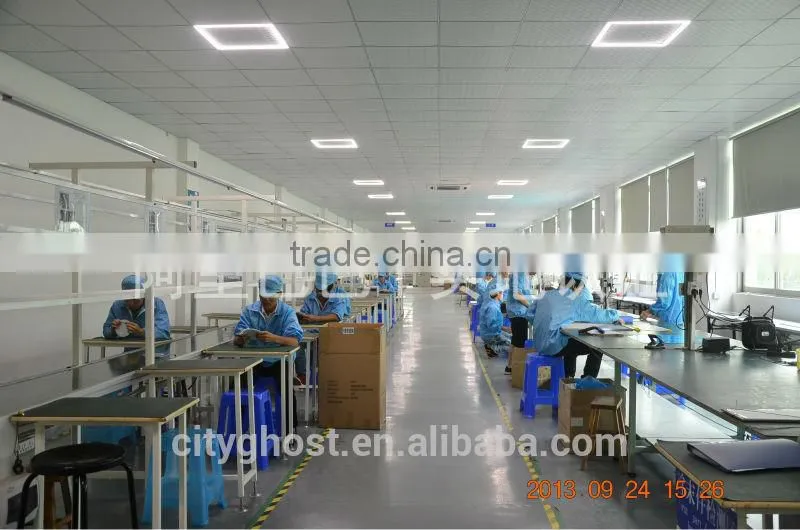

4000 square meter scale factory, 150 skilled workers, 5 assembly lines, 1 set of integrated sphere, wave soldering machine, SMT machine, which can support 20,000 pieces LED panels per month.



CITYGHOST has been to many exhibitions, for example, Canton Fair, Guangya, HK International

Lighting Fair etc. During this time ,our team have shown our team spirit, enthusiasm and

professionism for customers from all over the world.

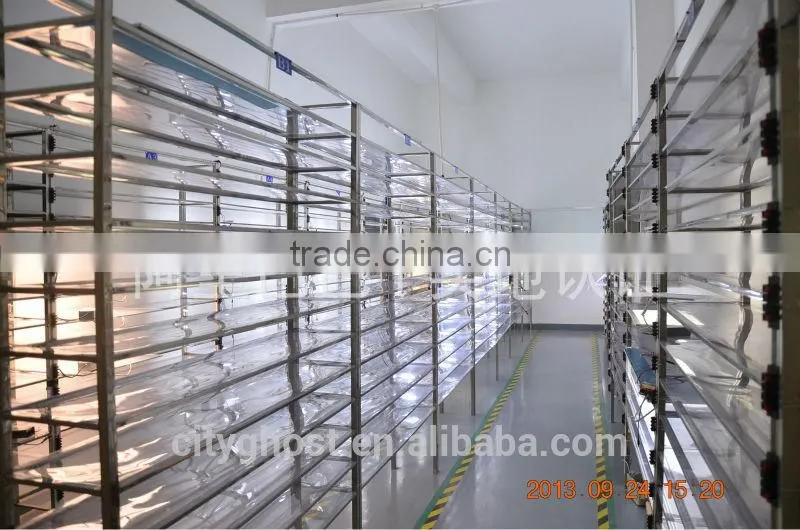

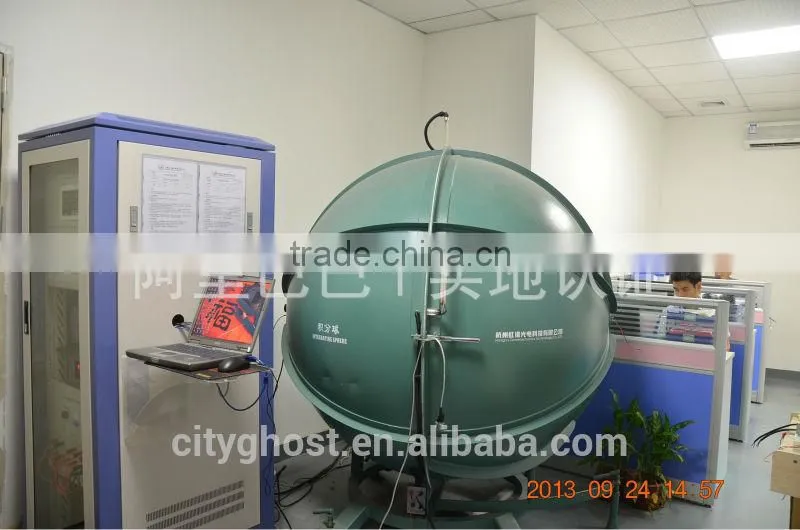

There are  a varity of testing machines in our workshop  in order to know the exact information about the

products, so you can definately trust our IES test report.



As a professional LED panel light manufacturer in China, Cityghost has achieved many certificates and

honors, for instance, CE , RoHS and patents, which demonstrate our products are of high quality.

 9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white

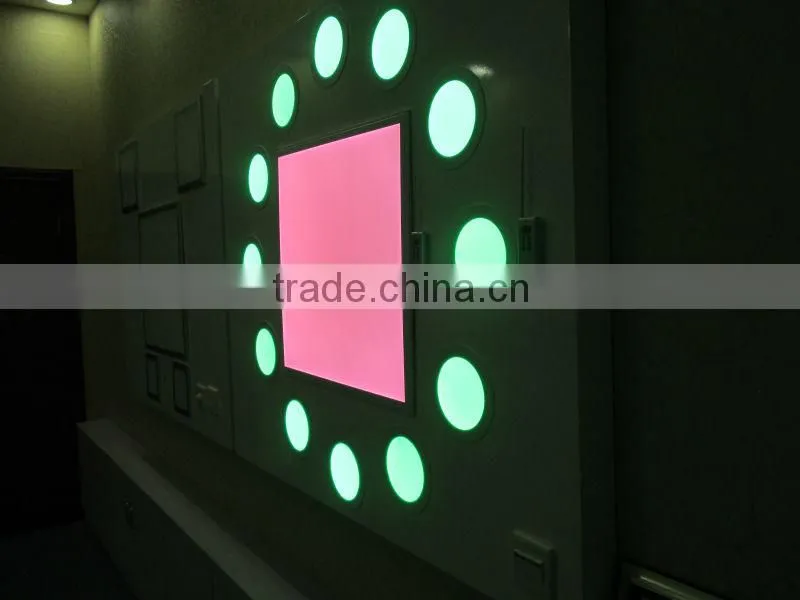

Showroom:

9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white





FAQ

Q: Why are you choosing Cityghost?

There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and

certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products

employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations

and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen, China.



Q: What are your available sizes?

We have many sizes such as:
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some extent.

Q: What is the type of your LED resources?

Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color

termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam

angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.



 Q: How is your warranty and how to apply?

We offer 3 years warranty for all the products. When light or driver meets problems, we request

our customer to send us pictures or videos for our analysis, and we send the customer a new

product, with this we all save time and money in freight to send back the goods.

Q: Does it easy to install and use?

Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.

There will be a manual in each led panel light box when you buy it. Look it carefully and install it

step by step according to the instructions.



Q: Do you have dimmable panel lights?

Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,

0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.

Q: What is the material of your LGP?

Our LGP is PMMA, and the thickness is 4mm,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.



Q: What is the material of your Aluminum back and diffuser plate?

Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness is 1.5mm.

Q: what is your available wattage?

7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.





Our Services
  • Your inquiry related to our products or prices will be replied in 24hrs;
  • Well-trained and experienced staffs to answer all your enquires in fluent English;
  • OEM&ODM, any your customized lightings we can help you to design and put into production;
  • Distributoership are offered for your unique design and some our current models;
  • Protection of your sales area, ideas of design and all your private information.9W 12W 15W 18W Dim or Non Dim LED Down Light Warm white, daylight or cool white
