Help CenterVery Popular Sell DC 12V Power Supply XMT 7100 Mini Red LED Digital Industrial Use Bolier PID Temperature Control Thermostat
Related Products
-
XMT 7100 Size 48*24mm PID Blue Led Light Digital Display Digital Temperature Controller Thermostat Wh7016cUS$ 13.04 - 18.8MOQ: 1 Piece -
XMT 7100 48*24mm Central Air Conditioner Stove Temperature ControllerUS$ 13.04 - 18.8MOQ: 1 Piece
-
XMT 7100 With Manufacturers Digital Temperature Controller Water HeaterUS$ 13.04 - 18.8MOQ: 1 Piece
-
XMT 7100 48*24mm Digital Intelligent Lcd Touch Screen Temperature ControllerUS$ 13.04 - 18.8MOQ: 1 Piece
-
XMT 7100 Mini Size 48*24mm Red LED Digital Temperature Controller Thermostat 110vUS$ 13.04 - 18.8MOQ: 1 Piece
Brief introduction | |
|
XMT -7100 Series Intelligent PID Temperature Controller are the multi-functional regulators adopting the micro processing units. The instrument has automating function to self adapt to different systems. The instrument can also be degrees Celsius, degrees Fahrenheit temperature. Five control optional: 0.One alarm relay 1.Relay contact PID output 2.One alarm relay output;SSR all the way non-contact level PID output 3.One alarm relay output;SSR-level all the way back to poor control output 4.Backlash relay control output | |
Main technologies indicates | |
Input |
RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) |
power supply |
DC 12V |
Contact capacity |
AC 250V/3A |
Contact life |
1×105 |
SSR-level |
8V(Open-circuit voltage); 30mA(short-circuit current) |
Temperature range |
-199.9 ~ +2300℃ |
Measure accuracy |
±0.2%FS |
Environment |
0~+50℃;≤85%RH |
Display |
LED(red, blue, white, green, orange) |

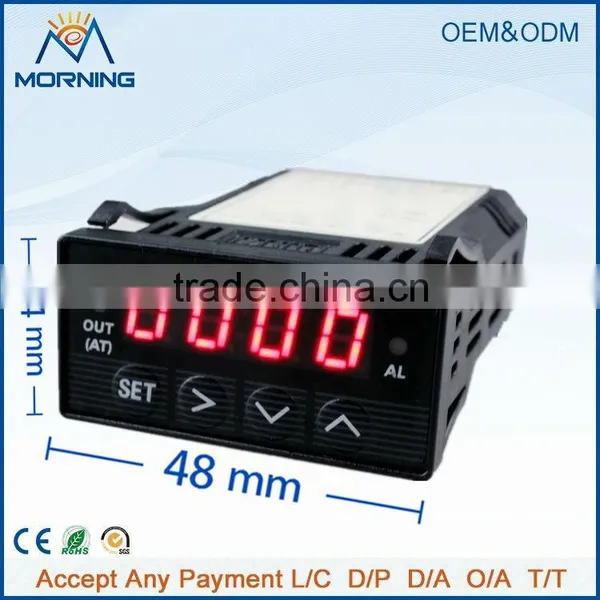

Outline Dimension |
48×24×75mm |
Panel Dimension |
45×22mm |
