Specifications
urtra thin 9mmhigh lumen and elegant design
factory price and cost-effective
3 years warranty CE&ROHS approved
48W invisible flat square panel led ceiling light panel 595*595 with IP44 CE&RoHS
| Model NO | Y66-48 |
| Description | 9mm led panel light |
| Dimension | 600*600*9mm |
| Material | Aluminum alloy frame+PMMA+PC/PS |
| Lighting source | 0.2W SMD 4014 LED |
| Colour temperature | 3000K,4000K,5000K,6000K |
| Luminous efficacy | 90Lm/W |
| Luminous flux | 4320Lm |
| Beam angle | >110° |
| CRI | RA>80 |
| Wattage | 36W |
| Driver brand | Meanwell /Lifud/Inventronics |
| Power efficiency | 90% |
| PF | 0.9 |
| Certificates | CE&RoHS |
| Life span | >50,000h |
| Warranty | 3 years |
| Delivery | Samples: 3-5days;Mass:15-20days |
| Payment terms | L/C or 30% T/T in advance |
| Price terms | FOB Shenzhen,CIF,EXW |

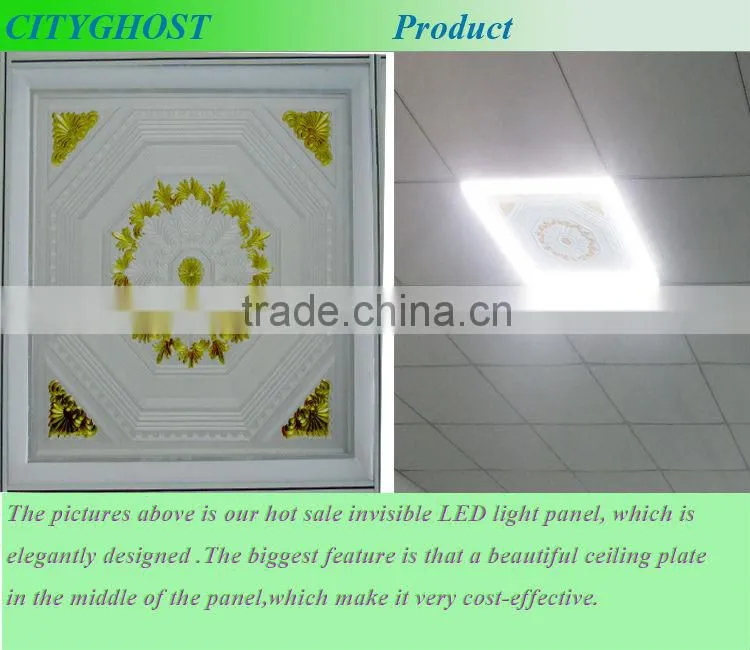

Creative and unique design makes the light more beautiful and useful

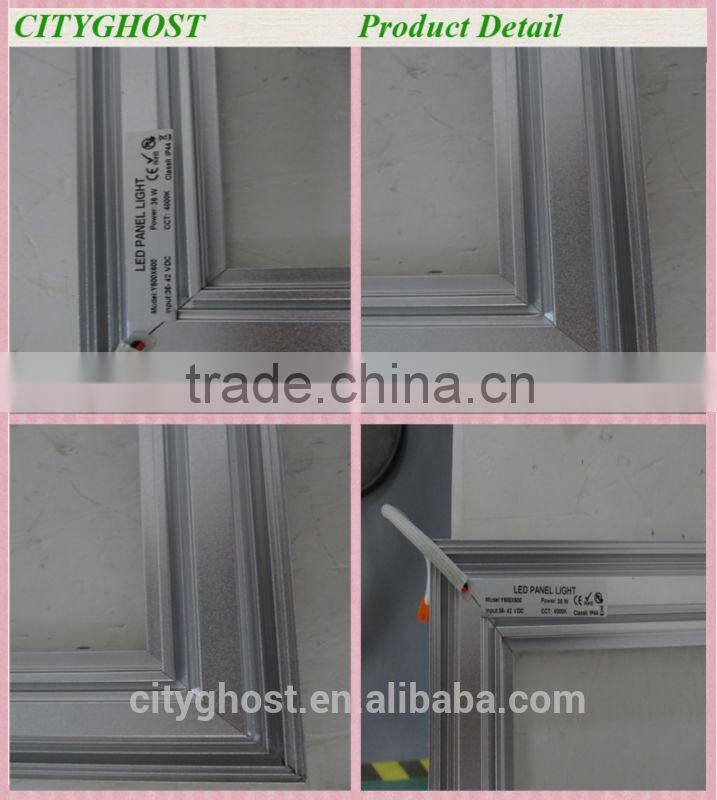

Below are the specific details show.
Packaging detail: in general, 1 piece of panel is packaged in an inner box,5 pieces are packaged in the master carton.
Q: Why are you choosing cityghost?
There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and
certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products
employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations
and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen,
China.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color
termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other
suppliers.
Q: What is the material of your LGP?
Our LGP is PMMA, and the thickness is 4mm, which are from ChiMei Optoelectronics Corp
or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness
is 1.5mm.
Q: What are your available sizes?
We have many sizes such as
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some
extent.
Q: what is your available wattage?
7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote
controller or DMX.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
