Specifications
invisible led panel with plaster1,20mm thickness 600x600mm
2,3 years warranty CE&ROHS approved IP44
3,patented led pane

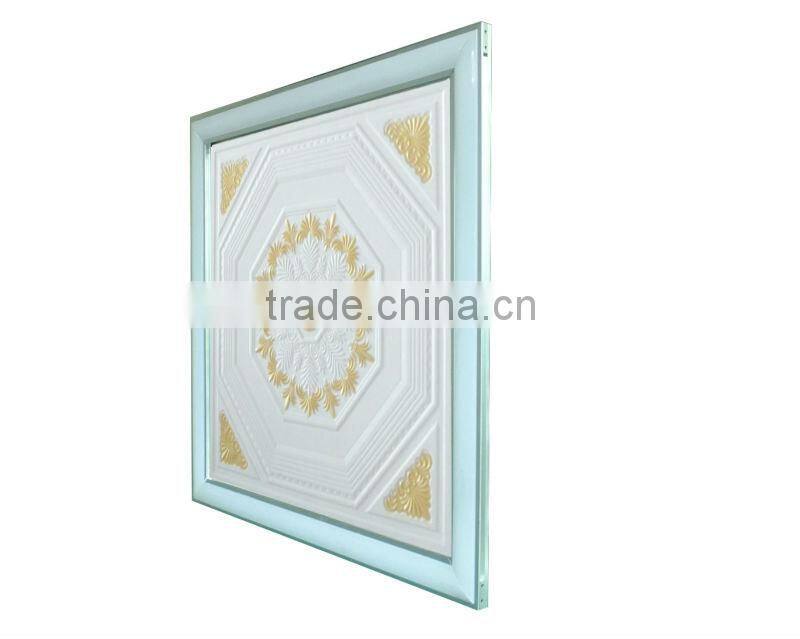

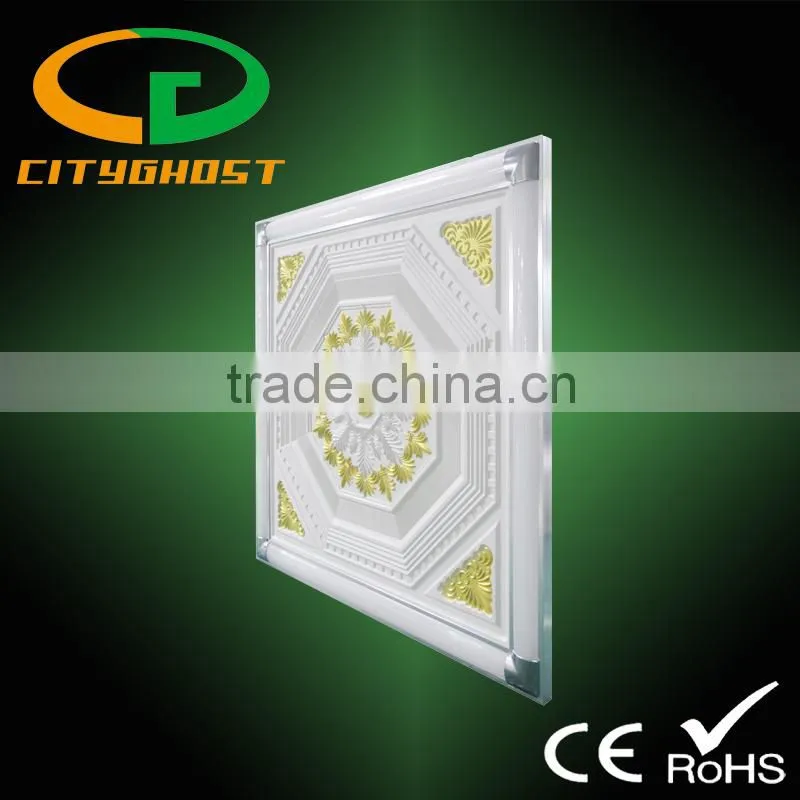

48w cityghost patented invisible LED panel light 600X600 housing with a fashion ceiling plaster
What are the features of our led panel light?
1,Material: We adopt Aluminum(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate);
Those are the advantages: good heat dissipation, high Luminous uniformity, uniformity/square meter> 90%;
2,LED source: PCB with high quality 0.2W 4014 SMD, high brightness and luminous, good heat dissipation,lifespan > 50000h;
3,Side emitting, with special process,the luminous efficiency is generally 3% higher than similar products in the market, some even reached over 100Lm/W;
4,Ultra-thin: 9mm thickness, weight less than 10kg/square meter,easier for shipping;
5,Different CCT for option: 3000k -6000k;
6,Various installation ways: a, Replace the plaster false ceiling. b, Suspended to the ceiling. c, Mounted to the ceiling or the wall;
7,Beam(light) angle:>110° , CRI: RA>80 , Protection Rate: IP44 , Insulation: Class II. PF>0.9;
8,Power supply(driver), some models with Meanwell or Inventronics driver with UL/CE approved;
9,Certificate: CE&RoHS;
10,3 years warranty: we sell LED panel light for 6 years from 2008, the complaint rate is less than 2%.
What are the advantages of our led panel light?
1.Profession----Specialize in led light panel for 5years;
2.Reliability----Employ fireproof materials, pass 850°c glow wire flammability test;
3.Reputation----TUV&BV certified manufacturer from Shenzhen,China;
4.Certification----CE&RoHS approved and patented led light panel.
| What are the specifications of our INVISIBLE led panels? | |
| Model | Y66-48 |
| Description | 20mm INVISIBLE led panel light |
| Dimension | 595x595x20mm |
| Material | aluminum alloy +acrylic+PS/PC |
| Lighting source | 0.2W SMD3014 |
| Colour temperature | 3000K-6000K |
| Luminous efficacy | 90Lm/W |
| Luminous flux | 4320Lm |
| Beam angle | >110° |
| CRI | RA>80 |
| LED Quantity | 240 |
| Wattage | 48W |
| Driver brand | MOSO |
| Power efficiency | 90% |
| PF | 0.90 |
| Certificates | CE&RoHS |
| Life span | >50,000h |
| Warranty | 3 years |
| Delivery | Samples: 3 days;Mass:20 days |
| Payment terms | L/C or 30% T/T in advance ect. |
| Price terms | FOB Shenzhen,CIF,EXW ect. |
Q1.What is the warranty of our product?
Cityghost’s promise of warranty for you is 3 years, you can completely trust us and the products.
If there is any problem happen to the whole light after selling, our aftersales support will try our best to help you out.
Q2.How about the color temperature?
The color temperature of Cityghost’s led light panel range from 3000k to 6000k,from warm white to cool white, you can
choose any kind of CCT for your convenience.
Q3.What size can you provide?
In general ,we can provide 195×195,295×295,595×295,595×595,1195×195,1195×295,1195×595mm and so on.Besides, customized size is available.
Q4.What is an LED driver?
An LED driver is a selfcontained power supply that has outputs matched to the electrical characteristics of your LED or array of LEDs. Drivers should be current regulated (deliver a consistent current over a range of load voltages). Dimmable LED drivers may also offer dimming by means of pulse width modulation (PWM) circuits.
Drivers may have more than one channel for separate control of different LEDs or arrays.
Q5. Are LED lights dimmable?
Dimmable LED bulbs from C&G are dimmable. The dimming IC from NXP which provides even and stable dimming function ranged from 1% to 100% of full luminous flux.
Our dimmable LED products are compatible with 99% of dimmers being sold around the world, including LUTRON, OSRAM & TCL.
What this means is that our dimmable LED lighting solutions can be installed in existing homes and businesses out of the box.
1.Your inquiry related to our products or prices will be replied in 24hrs;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.OEM&ODM, any your customized lightings we can help you to design and put into production;
4.Distributoership are offered for your unique design and some our current models;
5.Protection of your sales area, ideas of design and all your private information.
