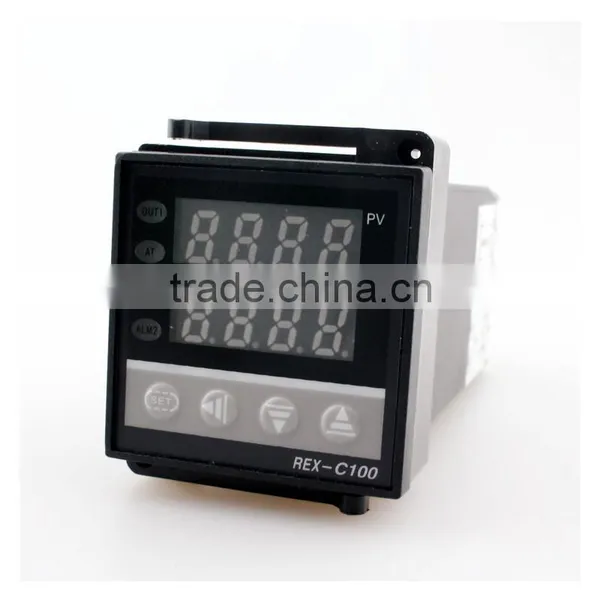

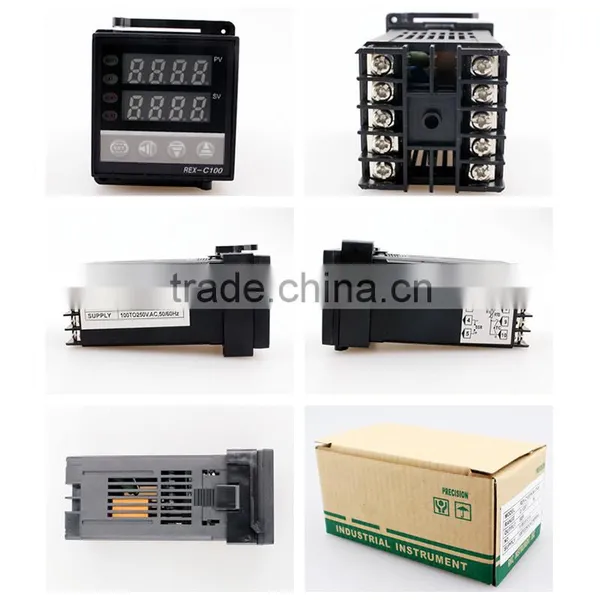

Help CenterIndustrial LED Display Customized Temperature Controller With Thermocouple
Related Products
-
Digital Hot Price Digital Temperature ControllerUS$ 5.976 - 10.6MOQ: 1 Piece -
REX-C400 LED Display Industrial Digital Pid Temperature ControllerUS$ 5.472 - 9.8MOQ: 1 Piece
-
RKC Intelligent PID Digital Temperature ControllerUS$ 6.08 - 9.8MOQ: 1 Piece
-
XMT 7100 Thermostat Digital Temperature Controller 48*24mm RefrigeratorUS$ 13.04 - 18.8MOQ: 1 Piece
-
XMT7100 Size 48*24mm PID WHITE LED Digital Display Shinko Temperature ControllerUS$ 13.04 - 18.8MOQ: 1 Piece
1. Input | |
Thermocouple(TC),Resistance Temperature Detector(RTD),Standard Current and voltage signals. | |
2. Accuracy | |
Measure accuracy |
±0.5%FS |
Compensation error of cold termina |
±2°C(amend within 0~50°C by soft) |
Resolution |
14bit |
Sampling period |
0.5Sec. |

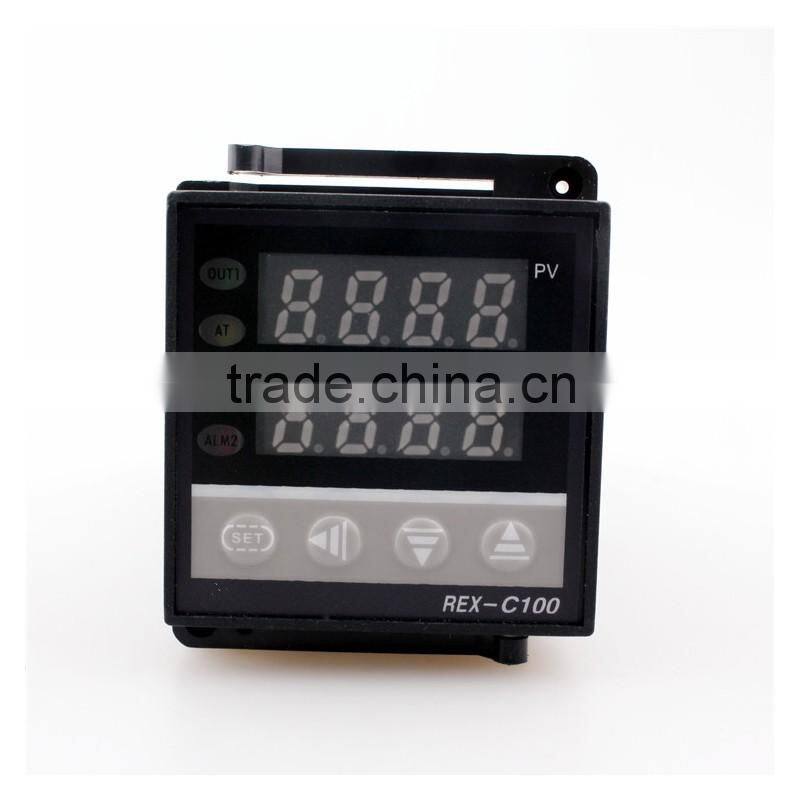

3. Display | |
PV,SV |
-1999 ~ +1999 |
Output( OUT1,OUT2) Alarm(Alarm1,Alarm2) Auto setting(AT) Display |
LED |
4.Control way |
|
Control way 1 |
Auto Setting Control |
Control way 2 |
PID Control(including ON/OFF, position PID and continuous PID) |
5. Controlling output | |
Currency output |
DC 0~10Ma,4~20mA(RL less than 500Ω) |
Voltage output |
DC 0-5V,1-5V(RL more than 10K) |
Relay output |
contact capacity 250VA (resistance load) |
Voltage Impulse output |
0~12V, (suitable for the solid relay SSR) |
Silicon Controlled Rectifier(SCR) output |
zero-cross triggering or phase-shift triggering(resistive load) |
Capacity of the output contact |
250V AC 3A (resistant load) |
Alarm output |
2 groups output at most,12 modes |
6. Setting range | |
Setting value (SV) |
Measured Present Value (PV) |
Proportional band (P) |
0 ~ whole measured range (when set 0, it's ON/OFF control |
Integral time |
0~3600 Sec (when the time is 0, the function of integral time closed) |
Derivative time |
0~ 3600 Sec (when the time is 0, the function of differential time closed) |
Proportional term |
1~100 Sec |
On-off control output hysteretic loop width |
1~100℃ (or other pv units) |
|
|
Temperature Controller: XMT-7100 Series (48*24mm) : AC/DC85-260V DC12V DC24V REX-C Series: REX-C100 REX-C400 REX-C700 REX-C900 ST -500 Series: ST504 ST506 ST507 ST508 ST509 XMT-7000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-9000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-7000P Series(PID, 32 time-interval ): XMTD-7000P XMTG-7000P ST828 with RS485 Series: Analog Series:
Thermocouple & Thermal Resistance: K-Type J-Type PT100 Solid State Relay(SSR): 25DA 25AA 25DD 40DA 40AA 40DD
|
1. Shipping Information
SHIPPING (Normally arrive port time in working days) | ||||
DESTINATION |
Express/Courier DHL/FedEx/TNT/UPS |
Ship by sea |
Ship by air |
Ship by EMS |
North America |
3-7 days |
15-24 days |
5-7 days |
10-12 days |
South America |
3-7 days |
15-25 days |
5-7 days |
10-12 days |
European countries |
3-7 days |
20-30 days |
5-7 days |
10-12 days |
Africa Countries |
3-7 days |
45-50 days |
5-7 days |
10-12 days |
The Middle East |
3-7 days |
15-25 days |
5-7 days |
10-12 days |
Australia |
3-7 days |
10-15 days |
5-7 days |
10-12 days |
2. Packaging Information
3. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
We are a professional manufacturer of Temperature Controller for many years. Our company has formed a perfect full-service system integrated by the R&D, manufacture and domestic trading and foreign sales.Based on the trading belief 'Focus on customers,' our company has been calmly handled the market oscillations. For our trading process, we are not just selling our products but also focusing on customers' satisfaction......
1. 24-hour Online service
Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale,
2. Competitive price
All of our products are supplied directly from factory. So the price is very competitive.
3. Warranty
All products have a three-year warranty.
4. OEM/ODM
With 15-year experiences in this field, we can provide customers with professional suggestion
To promote common development.
5. Distributor
The company now recruit distributor and agent all over the world. Prompt delivery and professional after-sales service are our priority, which makes us to be your reliable partner.
