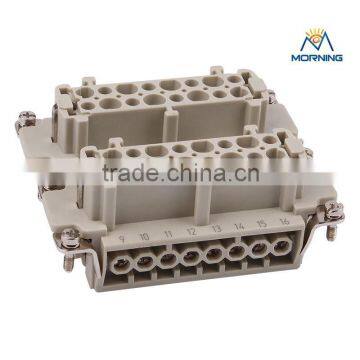

HE series 32pins female and male heavy duty connector

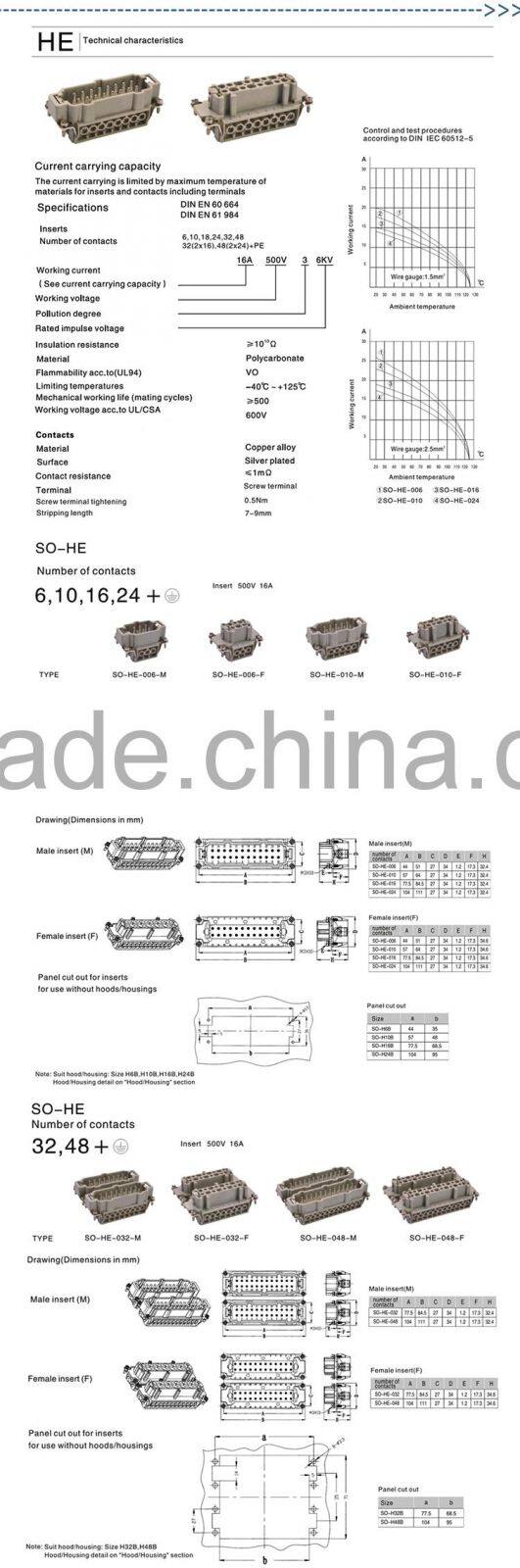

| Insert | |
| Working current | 16A |
| Working voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Insulation Resistance | ≥1010Ω |
| Material | Polycarbonate |
| UL94/Flammability acc.to(UL94) | VO |
| Limiting Temperatures | -40℃-+125℃ |
| Mechanical Working Life(mating cycles) | ≥500 |
| Working Voltage acc.to UL/CSA | 600V |
| Contacts | |
| Material | Copper alloy |
| Surface | Silver plated |
| Contact Resistance | ≤1M Ω |
| Terminal | Screw Terminal |
| Screw terminal tightening | 0.5Nm |
| Stripping length | 7-9mm |
| Certificates | UL,CE,VDE,ISO9001 |
| Application | Mold/Construction Machinery/Textie Machinery/Electric Energy |
|

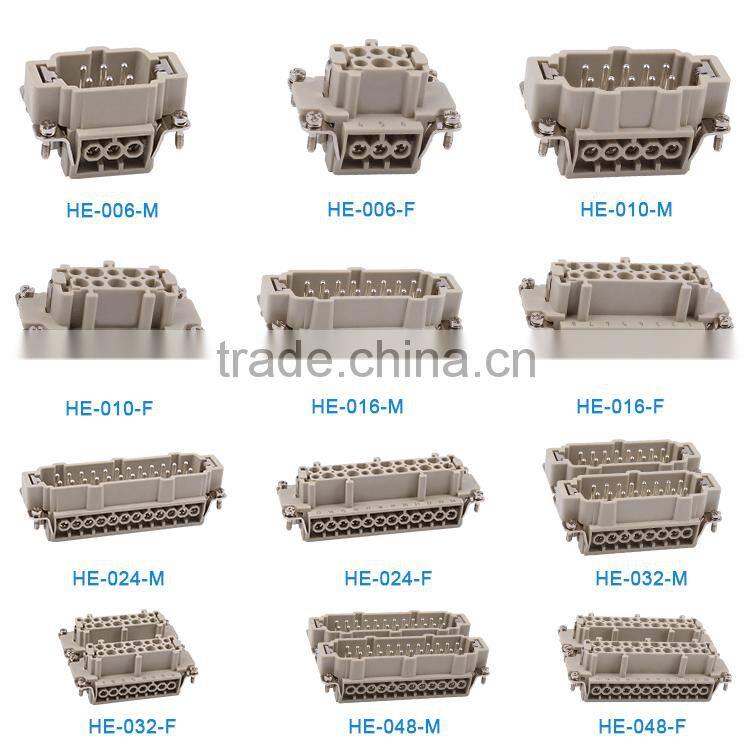

Inserts: HA HE HSB HK HD HDD HEE HQ H32B H48B Parts & Tools: Crimp Tool Removal Tool |
1. Shipping Information
SHIPPING (Normally arrive port time in working days) | ||||
DESTINATION | Express/Courier DHL/FedEx/TNT/UPS | Ship by sea | Ship by air | Ship by EMS |
North America | 3-7 days | 15-24 days | 5-7 days | 10-12 days |
South America | 3-7 days | 15-25 days | 5-7 days | 10-12 days |
European countries | 3-7 days | 20-30 days | 5-7 days | 10-12 days |
Africa Countries | 3-7 days | 45-50 days | 5-7 days | 10-12 days |
The Middle East | 3-7 days | 15-25 days | 5-7 days | 10-12 days |
Australia | 3-7 days | 10-15 days | 5-7 days | 10-12 days |
2. Packaging Information
3. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
We are a professional manufacturer of Heavy Duty Connector for many years. Our company has formed a perfect full-service system integrated by the R&D, manufacture and domestic trading and foreign sales.Based on the trading belief 'Focus on customers,' our company has been calmly handled the market oscillations. For our trading process, we are not just selling our product but also focusing on customers' satisfaction......
1. 24-hour Online service
Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale,
2. Competitive price
All of our products are supplied directly from factory. So the price is very competitive.
3. Warranty
All products have a three-year warranty.
4. OEM/ODM
With 15-year experiences in this field, we can provide customers with professional suggestion
To promote common development.
5. Distributor
The company now recruit distributor and agent all over the world. Prompt delivery and professional after-sales service are our priority, which makes us to be your reliable partner.
