Home > Products > New Products > 280w flexible high efficiency tuv with full certificate mono crystalline silicon solar panel

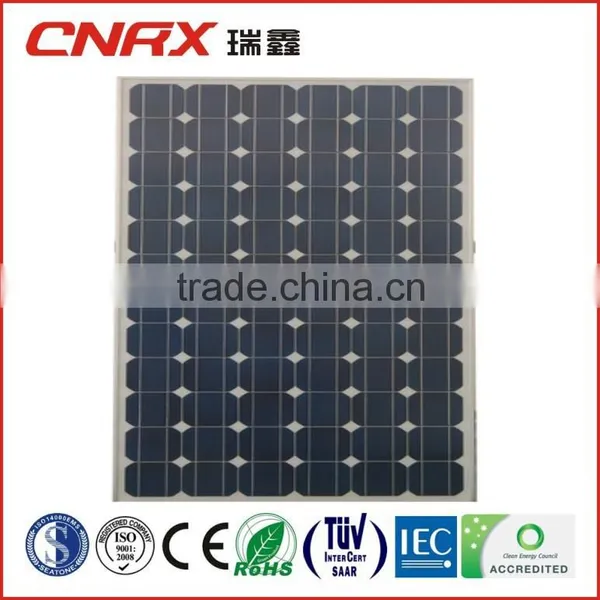

280w flexible high efficiency tuv with full certificate mono crystalline silicon solar panel
- 10000 Piece / Pieces per Month
- Ningbo Shanghai etc
- T/T D/P D/A Credit Card
-
12V Portable Mini Air Pump
-
DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light
Quality Choice
-
Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
-
12V Heavy Duty Plastic Shell Air Compressor with Light
-
12V Mini Heavy Duty Plastic Shell Air Compressor Price
-
12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | CNRX | Model Number: | RXM |
| Material: | Monocrystalline Silicon | Size: | 1950*990*45 | Number of Cells: | 6*12 |
| Max. Power: | 315W |
Product Description
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year
Warranties
- 10 year limited product warranty on materials and workmanship.
- 25 year limited power warranty on power output.
- ≥90% power output assurance for 10 years and ≥80% power output assurance for 25 years.
- Refer to warranty document for detailed warranty information.
Solar Panel Advantages
Solar panel Parameters
Electrical Characteristics
All specified Parameters are at STC 25℃Ambient, 1000W/ m irradiance and AM 1.5
Type | RX295M-72 | RX300M-72 | RX305M-72 | RX310M-72 | RX315M-72 |
Max-Power Pm(W) | 295 | 300 | 305 | 310 | 315 |
Module-Power Range(W) | 300>Pm≥295 | 305>Pm≥300 | 310>Pm≥305 | 315>Pm≥310 | Pm≥315 |
Power Tolerance(W) | +0~+5 | +0~+5 | +0~+5 | +0~+5 | +0~+5 |
Max-Power Voltage(V) | 34.7 | 35 | 35.3 | 35.6 | 35.9 |
Max-Power Current lm(A) | 8.51 | 8.58 | 8.65 | 8.71 | 8.78 |
Short-Ciruit Current lsc(A) | 9.25 | 9.3 | 9.35 | 9.4 | 9.45 |
Open-Circuit Voltage Voc(V) | 41 | 41.3 | 41.7 | 42 | 42.3 |
Max-System Voltage(VDC) | 1000V(IEC) | ||||
Cell Efficiency(%) | 17.1 | 17.4 | 17.7 | 18 | 18.3 |
Module Efficiency(%) | 15.2 | 15.5 | 15.7 | 16 | 16.2 |
Max.Series Fuse(A) | 15 | ||||
Pm Temperature Coefficients(W/℃) | -1.1041 | ||||
Lsc Temperature Coefficients(A/℃) | 0.00418 | ||||
Voc Lsc Temperature Coefficients(V/℃) | -0.1261 | ||||
NPCT Nominal Operating Cell Temperature | 47±2℃ | ||||
Packaging
. Packaging: standard export package suitable for long sea voyage and tough handling
. products are packed by paper carton or wooden box, we usually make the package by customers’ need.
Delivery
. Delivery Detail: 10-25 days depending on order quality
. Shipping: Usually delivery from Ningbo port or Shanghai port.
Our Service
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
Why choose ruixin?
.Founded in 1995, authorized as the national non-region enterprise group in 2001.
.180000 square meters for producing.
.Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
