API 5CT 3 1/2" NUE N80 Tubing Coupling With High Quality

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Structure:

Other, cylinder

Flexible or Rigid:

Rigid

Standard or Nonstandard:

Standard

Puyang Bao Litong Petroleum Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Structure Other, cylinder

Flexible or Rigid Rigid

Standard or Nonstandard Standard

Material Other, J55,K55,L80,N80

Brand Name BLT

Place of Origin Henan, China

Model Number 2-3/8"TBG

Specifications

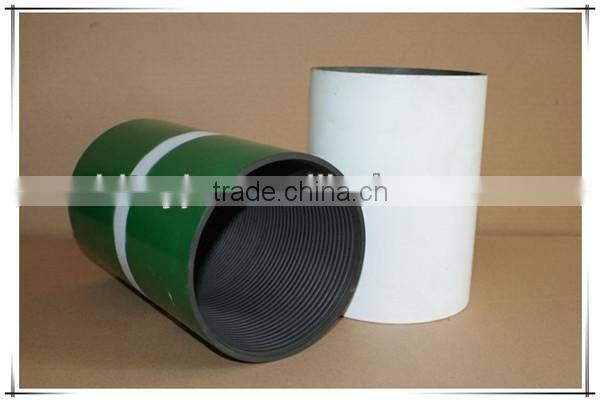

API 5CT 3 1/2" NUE N80 tubing coupling with high quality
.Type:TBG or UPTBG
3.Std Rfc:API 5CT &5B
4.Advantage:Good sealing

API 5CT 3 1/2" NUE N80 tubing coupling with high quality

Technical parameters

Name	Size	Type of Thread	O.D*L(mm)	Weight(kg)	Load carring width(mm)	Standard reference
API 5CT N80 tubing coupling with high quality	2-3/8"TBG	NU	73.02*107.95	1.28	4.76	API 5CT 5B
	2-3/8"UPTBG	EU	77.80*123.82	1.55	3.97	API 5CT 5B
	2-7/8"TBG	NU	88.90*130.18	2.34	4.76	API 5CT 5B
	2-7/8"UPTBG	EU	93.17*133.35	2.4	5.56	API 5CT 5B
	3-1/2"TBG	NU	107.95*142.88	3.71	4.76	API 5CT 5B
	3-1/2"UPTBG	EU	114.30*146.05	4.1	6.35	API 5CT 5B
	4"TBG	NU	120.65*146.05	4.35	4.76	API 5CT 5B
	4"UPTBG	EU	127.00*152.40	4.82	6.35	API 5CT 5B
	4-1/2"TBG	NU	132.08*155.58	4.89	4.76	API 5CT 5B
	4-1/2"UPTBG	EU	141.30*158.75	6.05	6.35	API 5CT 5B
1. Material:J55,K55,N80-1,N80-Q,L80,C90,P110
2.We also supply permium thread products by customer's request
3.Size:tubing coupling from 2-3/8”"to 4-1/2"
4.Type:TBG or UPTBG
5.Surface treatment: whole phosphating, or inside phosphating and outside coating
6. Packing :by carton,wooden case ,wooden pallet or by customer requests

Package informations

Specificaiton	Tubing Size OD (inches)	Coupling Size OD (inches)	Length (inches)	Weight per Coupling (kgs )	Palletized Carton Quantity	Palletized Carton Weight
Specificaiton	Tubing Size OD (inches)	Coupling Size OD (inches)	Length (inches)	Weight per Coupling (kgs )	(pieces)	(Kgs)
API NUE tubing couplings (J55,K55,N80,L80,P110)	1.9	2.200	3.750	0.56	3468	1943
	2 3/8	2.875	4.250	1.28	1690	2164
	2 7/8	3.500	5.125	2.34	800	1872
	3 1/2	4.250	5.625	3.71	512	1900
	4	4.750	5.750	4.35	392	1706
	4 1/2	5.200	6.125	4.89	392	1917
