High quality api 5ct 3 1/2" L80 nue steel nipple
- 100000 Piece / Pieces per Month
- TianJin Shanghai Qingdao
- T/T Credit Card
- coupling CZ50-250 for power station
- screw pump coupling HSNH280-54A for power plant
- Customized flexible steel motor shaft coupling pump coupling
- China manufacturer Motor side coupling DTPD30FM002 for power generation
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
Product Details
Structure: | Other, coupling | Flexible or Rigid: | Flexible | Standard or Nonstandard: | Standard |
Material: | Other, seamless steel | Brand Name: | BLT | Place of Origin: | Henan, China |
Model Number: | 3 -1/2" L80(EUE) |
Product Description

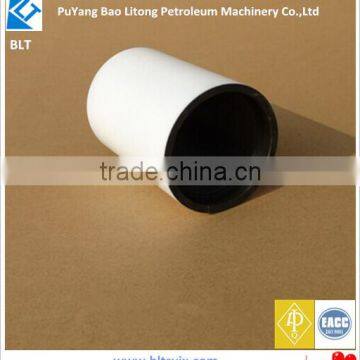

High quality api 5ct 3 1/2" L80 nue steel nipple
Feature
1.Std Ref.: API 5CT 5B ISO9001, 2008
2.Grade: J55,K55, N80-1,N80-Q,L80,C90,P110
3.Size: tubing 1.9"to4-1/2", casing 4-1/2"to13-3/8"
Technical Parameter
High quality api 5ct 3 1/2" L80 nue steel nipple
Size and Specifications
| ||||
Descriptiongs and size | Type of Tread | O.D*L(mm) | Weight(kg) | |
High quality api 5ct 3 1/2" L80 nue steel nipple
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*123.82 | 1.55 | |
2-7/8" | NUE | 88.90*130.35 | 2.34 | |
2-7/8" | EUE | 93.17*130.35 | 2.4 | |
3-1/2" | NUE | 114.30*146.05 | 3.17 | |
3-1/2" | EUE | 120.65*146.05 | 4.1 | |
4" | NUE | 120.65*146.05 | 4.35 | |
4" | EUE | 127.00*152.40 | 4.82 | |
4-1/2" | NUE | 132.08*155.58 | 4.89 | |
4-1/2" | EUE | 141.30*158.75 | 6.05 | |
1. Name: tubing couplings | ||||
2. Std Ref: API 5CT | ||||
3.API couplings for oil tubing and casing. | ||||
4.Material:J55,K55,N80,L80,C90,P110,N80-1,N80-Q | ||||
5. Size:tubing coupling from 1.9"to 4-1/2" | ||||
6. Type:NU,EU(tubing coupling) | ||||
7.Surface treatment: whole phosphating, or inside phosphating and outside coating | ||||
8.We can supply tubing adapters per clients' request | ||||
9.Packing :by carton,wooden case ,wooden pallet or by customer requests |
Package in detail
Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
(pieces) | (Kgs) | |||||
EUE tubing coupling
| 1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
(pieces) | (Kgs) | |||||
NUE tubing couplig
| 1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 |
Certification
Detailed Picture
Production Process
Workshop photo
RFQ for your information
1. Q : are you a factory or a trade company?
A : Yes,we are a specilized petroleum machinery products factory for 12 years
2. Q:Where are your factory located in?how can i reach it?
A: our factory is located in PuYang City,HeNan province,you can take the High-speed
rail from Beijing or Shanghai , or by plane to Zhengzhou airport.
3. Q: do you have API 5CT certification or other certification?
A: we have API 5CT &API 11b certification ,and ISO 9001 quality control certification
4.Q:for the quality control,how do your factroy control?
A: Firstly,all our seamless tubes,such as J55,K55,N80,L80,P110 are from china biggest
seamless factory,so Tensile Strength & Yield Strength can be assured
B: Secondly,each procedure strictly controlled,and the threads are conntrolled by lathe
and import molding cutter.
