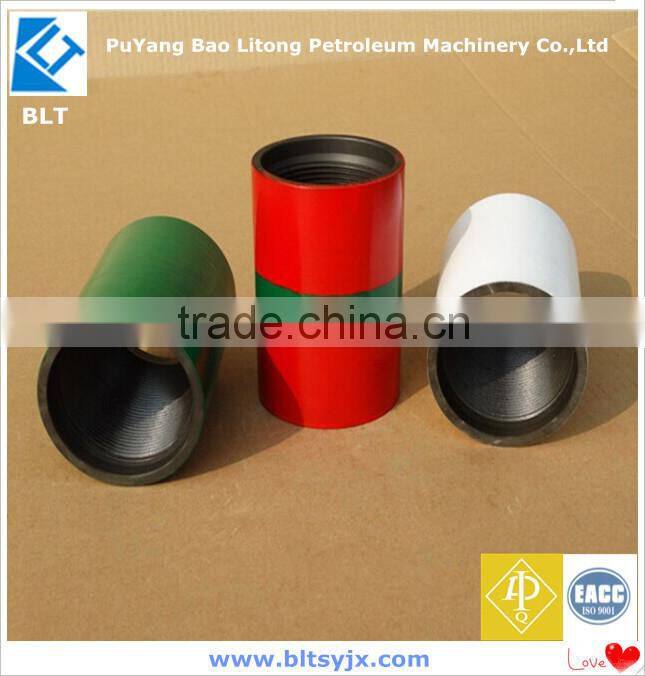

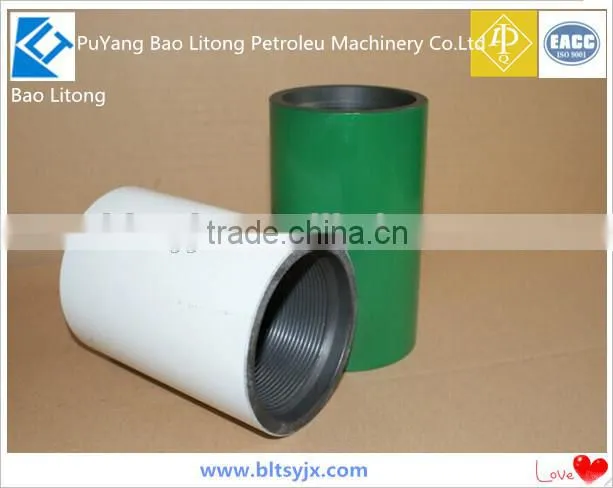

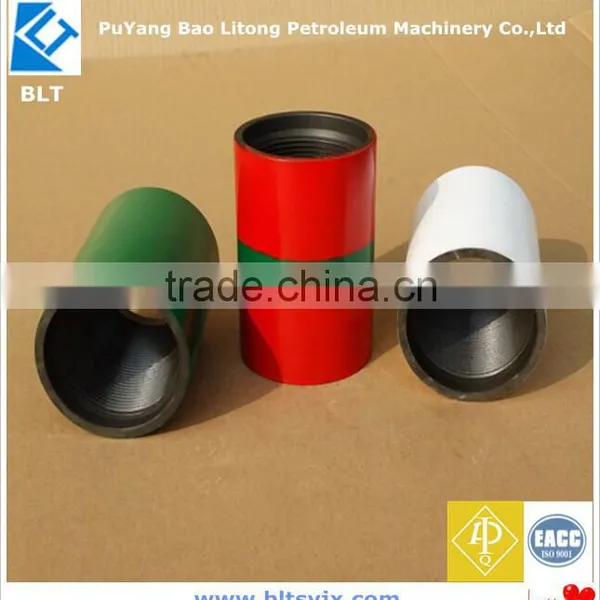

API 5CT K55 EUE tubing coupling for hot sale
Feature:
1.Std Ref.: API 5CT 5B ISO9001, 2008
2.Grade: J55,K55, N80-1,N80-Q,L80,C90,P110
3.Size: tubing 1.9"to4-1/2", casing 4-1/2"to13-3/8"
Technical Parameter
|
API 5CT K55 EUE tubing coupling for hot sale
Size and Specifications
| ||||
|
Descriptiongs and size |
Type of Tread |
O.D*L(mm) |
Weight(kg) |
|
|
Tubing Couplings
|
2-3/8" |
NUE |
73.02*107.95 |
1.28 |
2-3/8" |
EUE |
77.80*123.82 |
1.55 |
|
2-7/8" |
NUE |
88.90*130.35 |
2.34 |
|
2-7/8" |
EUE |
93.17*130.35 |
2.4 |
|
3-1/2" |
NUE |
114.30*146.05 |
3.17 |
|
3-1/2" |
EUE |
120.65*146.05 |
4.1 |
|
4" |
NUE |
120.65*146.05 |
4.35 |
|
4" |
EUE |
127.00*152.40 |
4.82 |
|
4-1/2" |
NUE |
132.08*155.58 |
4.89 |
|
4-1/2" |
EUE |
141.30*158.75 |
6.05 |
|
1. Name: tubing couplings | ||||
2. Std Ref: API 5CT | ||||
3.API couplings for oil tubing and casing. | ||||
4.Material:J55,K55,N80,L80,C90,P110,N80-1,N80-Q | ||||
5. Size:tubing coupling from 1.9"to 4-1/2" | ||||
6. Type:NU,EU(tubing coupling) | ||||
7.Surface treatment: whole phosphating, or inside phosphating and outside coating | ||||
8.We can supply tubing adapters per clients' request | ||||
9.Packing :by carton,wooden case ,wooden pallet or by customer requests | ||||
Package in Detail
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
EUE tubing coupling
|
1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
| 2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
| 2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
| 4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
| 4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
NUE tubing couplig
|
1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
| 2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
| 2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 | |
| 4 | 4.750 | 5.750 | 4.35 | 392 | 1706 | |
| 4 1/2 | 5.200 | 6.125 | 4.89 | 392 | 1917 |
Certification
Detailed Picture
Production process
Workshop Photo
