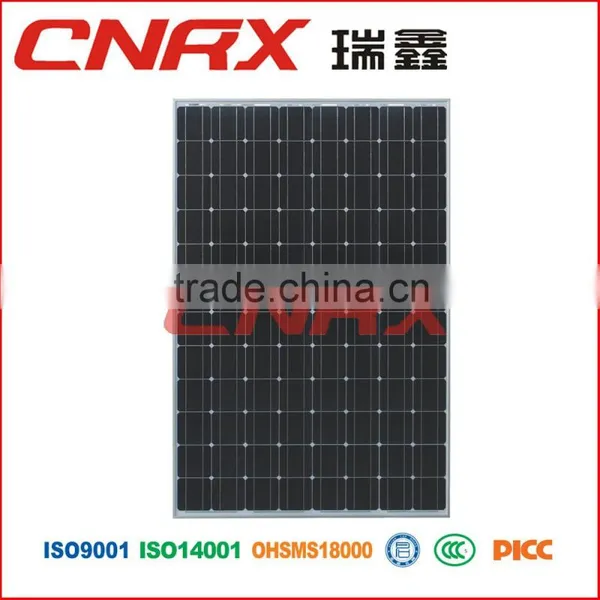

Help CenterChina Supplier MS Monocrystalline 250W Solar Panel MS-M250(96)
Related Products
-
China Supplier Yueqing Ruixin Group Photovoltaic Module Mono 250 Watt 60 Cells Solar Panel With TUV CE ROSH Best Price per WattNegotiableMOQ: 100 Pieces -
300W Mono Solar PanelUS$ 0.4 - 0.48MOQ: 6000 Watts
-
300W Poly Solar PanelUS$ 0.4 - 0.48MOQ: 6000 Watts
-
250W Mono Solar PanelUS$ 0.4 - 0.48MOQ: 5000 Watts
-
250W Poly Solar PanelUS$ 0.41 - 0.48MOQ: 5000 Watts
Specifications
A-grade cell high efficiency 5W-300W PV solar panel
1.Higher conversion efficiency
2.quick delivery
3.Excellent in quality
Solar panel
2. A film of PECVD is coated on the upper surface as antireflection measure which the characteristic of deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long endurance EVA, a high efficiency mono-crystalline cells sheet and a sheet of antihumidity TPT for different weather conditions.
4. High quality anodized aluminum frame which is the choice for strong wind resistance and mountain terrain.
5. A multifunction box can safeguard safe connection.
6. The exterior design and electrical performance of each every module are fully tasted to guarantee superior quality.
| Description of Specification | Units | Model | |
| NES96-6-250M | |||
| General Data | |||
| Nominal Power | W | 250W | |
| Application | DC 24V System | ||
| Surface Maximum Load Capacity | kg/m2 | 200 | |
| Storage & Operating Temperature | Deg C | -40 to +80 | |
| Standard Test Conditions | 1000W/M²,1.5AM,25 | ||
| Dimensions(L*W*H) | mm | 1580*1064*50 | |
| Weight | kg | 21 | |
| Solar Cell | |||
| Cell Type | Mono | ||
| Wafer Diameter | mm2 | 125*125 | |
| Number of Cells | 96(6*12) | ||
| Maximum Power | W | 250 | |
| Watt Tolerance | % | +/-3 | |
| Voltage & Ampereage | |||
| Maximum System Voltage | Volts | 1000 | |
| Maximum Operating Voltage(Vmp) | Volts | 49 | |
| Maximum Operating Current(Imp) | Amps | 5.1 | |
| Open Circuit Voltage(Voc) | Volts | 60.2 | |
| Short Circuit Current(Isc) | Amps | 5.45 | |
| Operational Temperatures | |||
| Temp Coefficent of Isc(TK Isc) | % per deg.C | +0.045 | |
| Temp Coefficent of Voc(TK Voc) | % per deg.C | -0.33 | |
| Temp Coefficent of Pmax(TK Pmax) | % per deg.C | -0.45 | |
| Normal Op.Cell Temp (NOCT) | deg.C | 45±2 | |
| Materials & Accessories Data (All Certified by CE and TUV) | |||
| Cable | Connerctors | IP65 | |
| Length | M | 0.9 | |
| Wire Diameter | mm2 | 4 | |
| Frame | Aluminum Anodzed | ||
| Glass | Thickness | mm | 3.2 |
| Low lron,High Transmisson,Toughness | YES | ||
| EVA resin | mm | 0.5 | |
| Backsheet(TPT) | mm | 0.3 | |
| Warranty (Output) |
10 years | % | 90 |
| 20 - 25 years | % | 80 | |
| Whols Panel | Years | 5 |
|
1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter
2 Devoted in the power transmission and distribution since 1995, having lots of experienced
engineer and workers
3 We are able to contract foreign project obtained the qualification certificate
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different Solar Panel type.
Usually it’s 100 Piece for Solar Panel.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is neutro-packing
For more information on detailed cable characteristics please call 86 577 57185601
Or email us your request for design Solar Panel.
