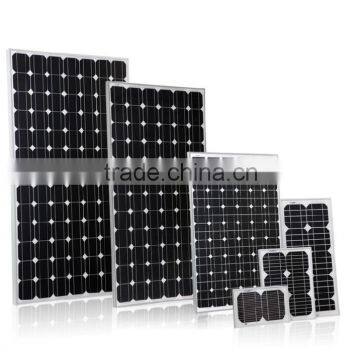

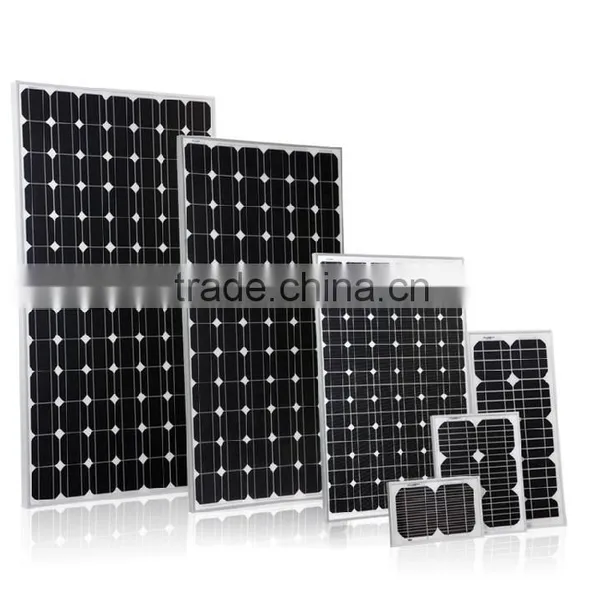

200W Mono Solar Panel

US$ 0.51 - 0.58 MOQ: 4400 Watts

Key Specifications

Place of Origin:

Zhejiang, China

Model Number:

RXM220-54

Material:

Monocrystalline Silicon

Ruixin Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Model Number RXM220-54

Material Monocrystalline Silicon

Size 1480*990*35mm

Number of Cells 54pcs

Max. Power 200W

Product Description

Overview

High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
Outstanding electrical performance under high temperature and low irradiance conditions.
54 Back-Contact Mono-crystalline Si solar cells (approx. 18.35%).

Applications

Warranty

10 year limited product warranty on materials and workmanship.
25 year limited power warranty on power output.
≥90% power output assurance for 10 years and ≥80% power output assurance for 25 years.
Refer to warranty document for detailed warranty information.

Certifications

Electrical Characteristics

All specified Parameters are at STC 25℃Ambient, 1000W/ m irradiance and AM 1.5

Type	RX210M-54	RX215M-54	RX 220M-54	RX225M-54	RX 230M-54
Max-Power Pm(W)	210	215	220	225	230
Module-Power Range(W)	215>Pm≥210	220>Pm≥215	225>Pm≥220	230>Pm≥225	Pm≥230
Power Tolerance(W)	+0~+5	+0~+5	+0~+5	+0~+5	+0~+5
Max-Power Voltage(V)	27.6	27.9	28.2	28.6	29.1
Max-Power Current lm(A)	7.6	7.7	7.8	7.85	7.9
Short-Ciruit Current lsc(A)	8.48	8.6	8.7	8.85	8.9
Open-Circuit Voltage Voc(V)	33	33.3	33.7	33.9	34.4
Max-System Voltage(VDC)	600V(UL)/ 1000V(lEC)
Cell Efficiency(%)	16.3	16.7	17	17.4	17.8
Module Efficiency(%)	14.3	14.6	15	15.3	15.6
Max.Series Fuse(A)	15
Pm Temperature Coefficients(W/℃)	-1.1041
Lsc Temperature Coefficients(A/℃)	0.00418
Voc Lsc Temperature Coefficients(V/℃)	-0.1261
NPCT Nominal Operating Cell Temperature	47±2℃

Mechanical Characteristics

Cable type,Diameter and Length	4mm,TUV certified,750mm
Type of Connector	Compatible Type IV
Number,type and arrangement of cells	54 pcs,Mono-Crystalline Silicon(6×9)
Cell Size(mm)	156×156
Dimension(mm)	1480×990×35
Weight(kg)	16
No.of Draining Holes in Frame	10
Glass,Type and Thickness	High Transmission,Low lron,Tempered Glass 3.2mm
