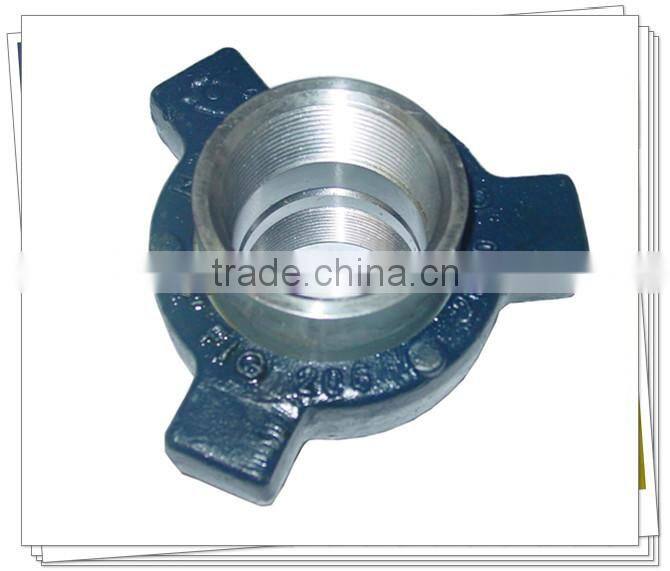

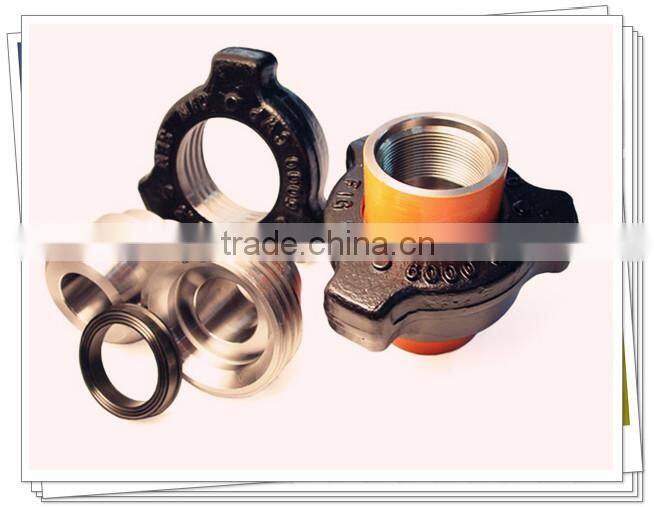

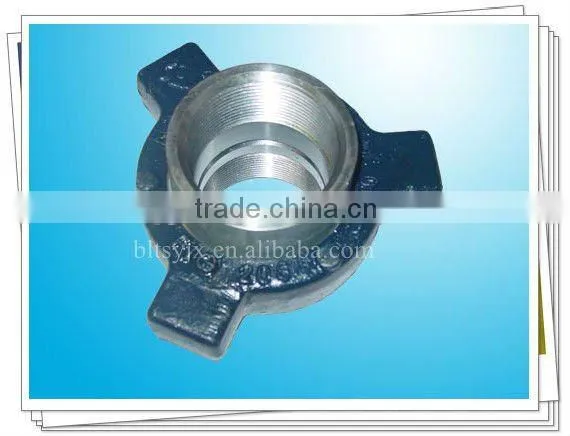

WECO Hammer union FIG.206
1.Std Ref:API 6A
2.Type:FIG.206.FIG1502,FIG 602
3.Certificate:ISO9001-2008

WECO Hammer union FIG.206



Detailed description

        Hammer Unions are suitable for standard and sour environment, ranging in size from 1’’to 12’’with cold working pressures from 1,000 psi to 20,000 psi. All unions have their own color signs for quick identification. The materials meet ASTM and AISI standards. Hammer Unions are available for Thread Butt Weld and Socket Weld. All DINLGI’s Hammer Unions are interchangeable with WECO and FMC.



The descriptions are as follow:

1.Name	Hammer union FIG.206
2.Size	1”,2”,3”,4”,6",8"
3.Color	yellow and black
4.Material	Alloy steel and carbon steel
5.Type	FIG.206
6.Connection	Butt weld, socket weld
7.Certificate	ISO9001
8.Packing	Case, wooden case or per the clients’ request





Technical Parameters



FIG 200, 206 * socket weld and butt weld are also available



Size		Weight	A	B	C+	D**	TPI*	Material
(Inches)	(mm)	(LBS)						Nuts	Sub
1	25	1.75	2.8	1.6	3.8	**	6 STD	Steel Forging A105
2	50	4.9	3.5	2.9	5.8	**	4 STD
3	80	13.25	4.5	4.1	7.8	**	4 STD
4	100	18.35	5.0	5.1	8.9	**	3 STD
6	150	46	6.61	7.41	12.8	**	3 STD	Steel Casting	Steel Forging A105
8	200	68	7.24	9.65	13.75	**	3 STD	Steel Casting	Steel Forging A105
*TPI-Threads per inch. **Weld Ends-Consult Factory.
