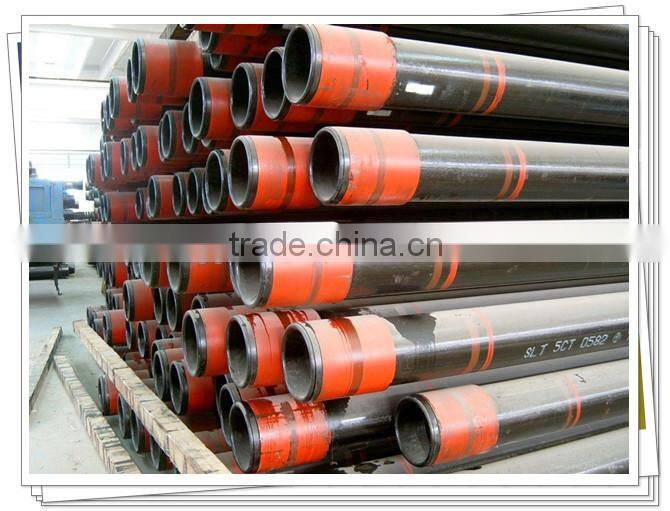

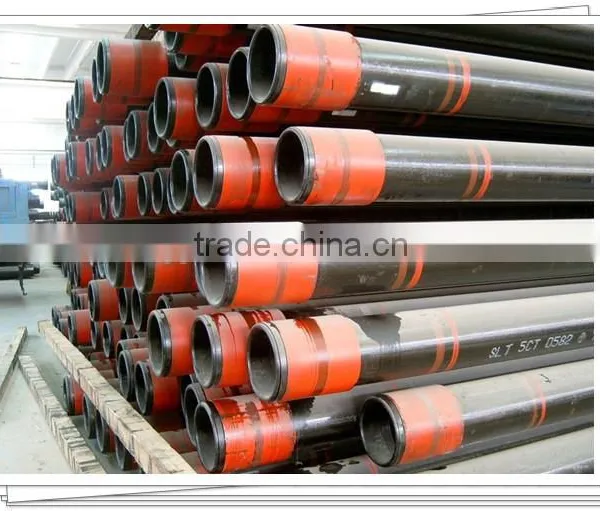

API 5CT 3 1/2" K55 Female Tubing Couplings

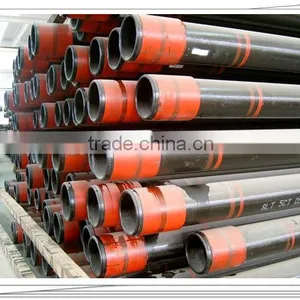

API 5CT 3 1/2" K55 Female Tubing Couplings thumbnail-1
API 5CT 3 1/2" K55 Female Tubing Couplings photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, J55,K55,N80,L80,P110
Technics:
Other, hot rolling
Type:
Coupling
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, J55,K55,N80,L80,P110
Technics Other, hot rolling
Type Coupling
Place of Origin Henan, China
Model Number 3 1/2" K55(NUE)
Brand Name BLT
Connection Female
Shape Equal
Head Code Other, round

Specifications

API 5CT 3 1/2" K55 female tubing couplings
1.Std Ref: API 5CT &5B
2.Material:J55,K55,N80,L80,P110
3.Hot rolling

API 5CT 3 1/2" K55 female tubing couplings

Company profile



Puyang Bao Litong Petroleum Machinery Co., Ltd. was founded in 2004 and located in Puyang City which is the birthplace of Dragon.



The company mainly speicialized in sucker rod coupling, tubing and casing couplings, hydraulic tubing power tongs, sucker rod tongs and hydraulic power tongs accessories, sucker rod hooks, and so on.



The Company has obtained The National Industrial Production License, ISO9001:2008QMS Certificate, API 5CT & 5B Certificate, indepent import and export rights.



Our business philosophy is “Quality as the basis”. We adhere to “the quality first, the Credibility Supremacy”. We’ll control the quality of products strictly, and constantly improve the production process. Sincerely looking forward to cooperate with all the friends from the world.



Features:



1.Type:coupling

2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

3.Size:from 2-3/8" to 4-1/2"
4.Std ref:API 5CT&5B

5.Placement:female

6.Technics:hot rolling

7.Surface treatment: Whole phosphating, or inside phosphating and outside coating

8.Packing: By carton, wooden case, wooden pallet, or by requirements of customers



Technical Parameters:

Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5CT 3 1/2" K55 female tubing couplings

NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76

EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35

1.Advantage:good sealing

2.Size:from 2-3/8"to 4-1/2"

3.Standard reference:API 5CT & 5B

4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q

5.Surface treatment:whole phosphating,or inside phosphating and outside coating

6.Package:by carton, wooden case, wooden pallet or by customer request





 Package informations



Specificaiton Tubing Size OD (inches) Coupling Size OD   (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)
API 5CT 3 1/2" K55 female tubing couplings 1.9 2.500 3.875 0.84 2352 1976
2 3/8 3.063 4.875 1.55 1152 1786
2 7/8 3.668 5.250 2.40 800 1920
3 1/2 4.500 5.750 4.10 512 1229
4 5.000 6.000 4.82 392 1890
4 1/2 5.563 6.250 6.05 392 2372





Specificaiton Tubing Size OD (inches) Coupling Size OD   (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)
API NUE tubing couplings (J55,K55,N80,L80,P110) 1.9 2.200 3.750 0.56 3468 1943
2 3/8 2.875 4.250 1.28 1690 2164
2 7/8 3.500 5.125 2.34 800 1872
3 1/2 4.250 5.625 3.71 512 1900
4 4.750 5.750 4.35 392 1706
4 1/2 5.200 6.125 4.89 392 1917
