Manufacturer/ Isolation Switch
- Ningbo or Shanghai Port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Smico | |
| Model Number | SGL Series | Max. Current | 1600A-3150A | |
| Max. Voltage | 660V | Mechanical Life | More than 5 years |
Product Description
Specifications
Load isolation switch1.Rated voltage: 660V
2.Rated current:3150A
3.Frequnecy: AC50Hz
Introduction
SGL series load isolation switch mainly suitable for AC 50Hz, rated voltage to 660V, DC rated voltage up to 440V, rated current up to 3150A. The switch is used in the infrequent making and breaking circuit.
Characteristice of products
1.The elastic-accumulating accerlerating mechanism for instant release realizes the rapid making and breaking (13.8m/s), having no relationship with the speed of the operating handle, and increasing greatly the capacility of extinguishing electric arc.
2.The shell made of unsaturated polyester resin reinforced by glassfibre possesses excellent performance of flame resistant , dielectric performance, safe operation, resit carbonic performance and resist impact performance.
3.Parallel double gap contact possesses self-cleaning functions.
4.All the contact materials are copper alloy plated with sliver, and posses two swparation contact furfaces.
5.Large clearance of insulation
6.Be on "0", the products can lock the handle with three locks at the same time and thus can avoid error operation.

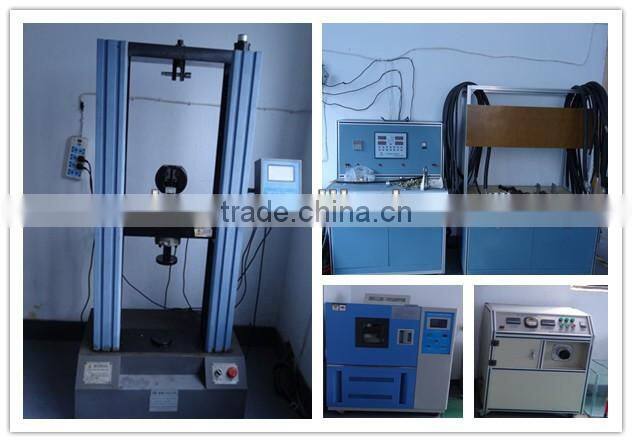

Company Capability
