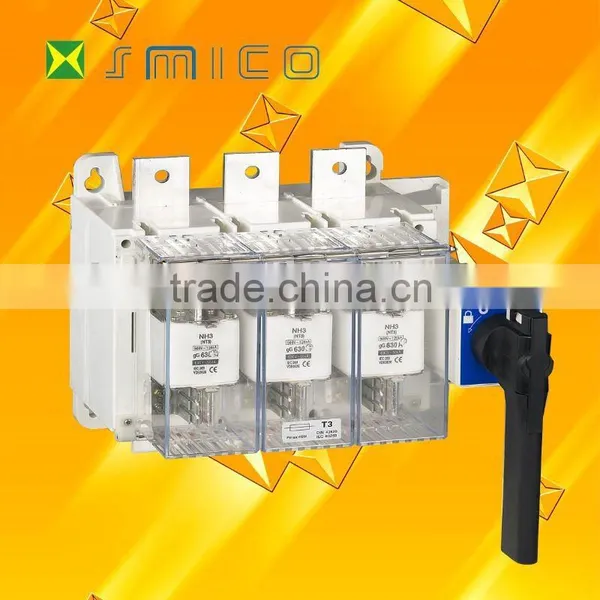

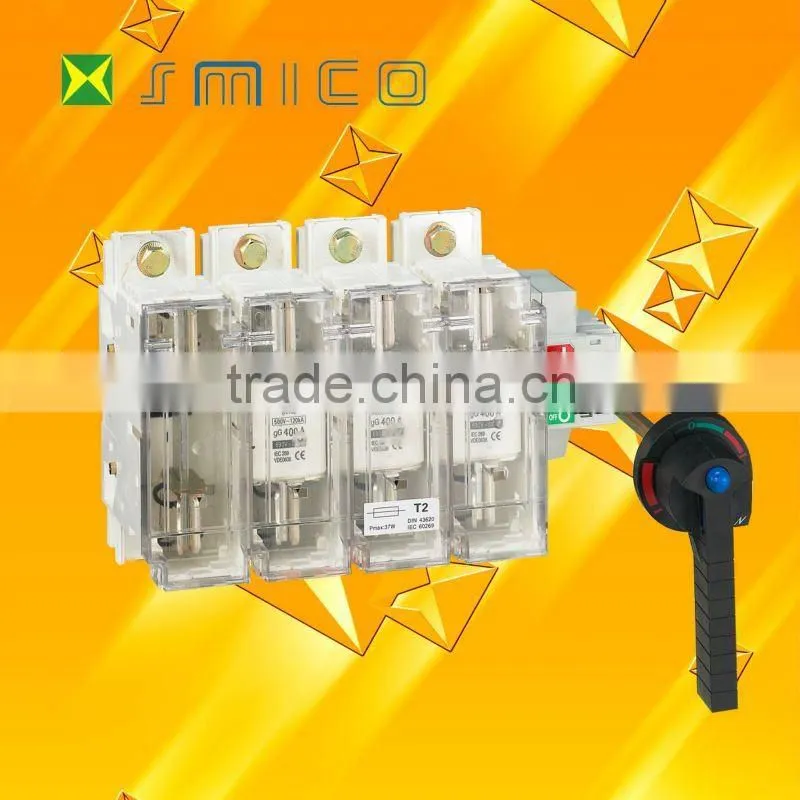

SGLR-I Type isolation switch with fuse / fuse group of isolatin switch

Introduction

The SGLR-I type fuse group isolation switch makes sure making and breaking circuit with load, with reliable over-current and short-circuit breaking protection, also obviously saw the breaking state. Own two poles, four poles (three poles+ switch netral pole). The fuser can be divided into 12 spects from 63A to 630A.

Structure and operaion mode

1.Direct operation on front face: the handle is installed on the front face of switch.

2.Direct operation on side face: the handle is installed on the right of switch (it is noted separately if the handle is installed on the left of switch)

3.Front face operation outside of cabinet: the handle is installed on the front face outside of the distribution cabinet door.

4.Side face operaion of cabinet: the handle is installed on the right of distribution cabinet outside.
