SMICO Best Selling Hot Chinese Products Changeover Switch Load Isolation Switch Types
The series SGL load isolation switch applies at the distribution equipment of rate voltage up to AC 660V or DC 440V and conventional heat current up to 3200A and SOHz to make or break unfrequently the circuit or perform the electric isolation, wide used atthe fields, e.g. building,electric power, petrochemistry, etc.
The SGLC side operation load isolation switch is such one to add a side operating mechanism to the SGL load isolation switch, appliedfor side.
The SGLC side operation load isolation switch is such one to add a side operating mechanism to the SGLing the electric isolation by theside operation.
The SGLZ load-switchover isolation switch, consisting of two SGL load isolation switches that are of vertical or horizontal connection, applies for the switchover of the dual power supplies or the conversion of two load devices and secure isolation.
The switch meets the standard IEC60947-Sand GB14048.
The switch features pleasant appearance, novel and compact structure, smalldimension and completefunction, leading thecounterpart.
The switch adopts the module design, proper for making or breaking the circuit or performing the electric isolation. The switch of 1000A and above is only for electric isolation.
The switch adopts such a quick making mechanism that accumulates the energy by the spring and releases instantaneously and such acontact structure that simultaneously makes or breaks the double contacts that are of parallel connection, greatly improving the electrical and mechanical performance of the product.
The BMC and hand operating handle for the switch could provide very high dielectric performance, protection capacity and reliable operating security.
The switch has three poles odour poles (three poles+neutral pole with allowable making or breaking).
The switch front is fitted with the mark window to learn the making&breaking state of the contact, and it is possible to provide the rear window to direct observe the making& breaking state of the contact to assure the switch operation interms of reliability and security.

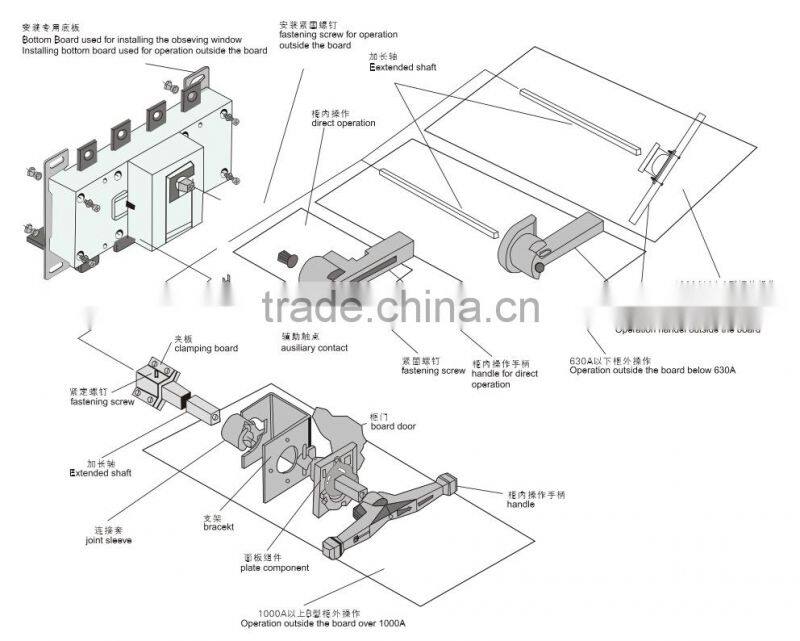

The handle could direct be fitted at the switch for operation (for short inside-cabinet operation), alternatively, itis possible to perform the operation outside the distribution cabinet via lengthened shaft (for short outside-cabinet operation), which would make the operation more convenient. It is possible to provide normally-open &-close auxiliary contact and install the special base plate and use the panel-front&-rear wiring mode to meet the various demand of the client.
In case of being at the breaking position "0", it is available to use two to three locks to lock the handle to prevent the misoperation.
1.Packaging:
Export Carton,or as your request.
2.Shipping Methods:
By air or by sea(FOB port:Shanghai/Ningbo),by express (DHL,UPS,TNT,FEDEX).
1. Your inquiry related to our product & price will be replied within 24 hours.
2. Well-trained & experienced staff are to answer all your inquiries.
3. Customized solution & perfect after-sale service.
4. Our advantage:
A.Competitive price B.Good quality
C.Timely delivery D.New model launch weekly
E.Own manufacturing F.Own quality control
1.Manufacturer With Competitive Price And High Quality.
-We are the manufacturer with direct sale price and high quality to help you open the markets which located in Wenzhou City, Zhejiang Province, China. Welcomed to visit our company.
2.OEM/ODM.
-We are the manufacturer with a brilliant team work team work.
3. Usual Payment Term.
-We accept terms of T/T in advance, L/C, Western Union and others. Any question, please ask us!
4. Warranty Time.
-1.5 years. Any problem of the quality is changed by your next order free.
5.Free Sample.
-Yes, we provide small products to check quality for you, just you pay the express fees.
