Home > Electrical & Electronics > Switch > Other Switches > 3200A Dual Power Automatic Transfer Switch/change Overswitch

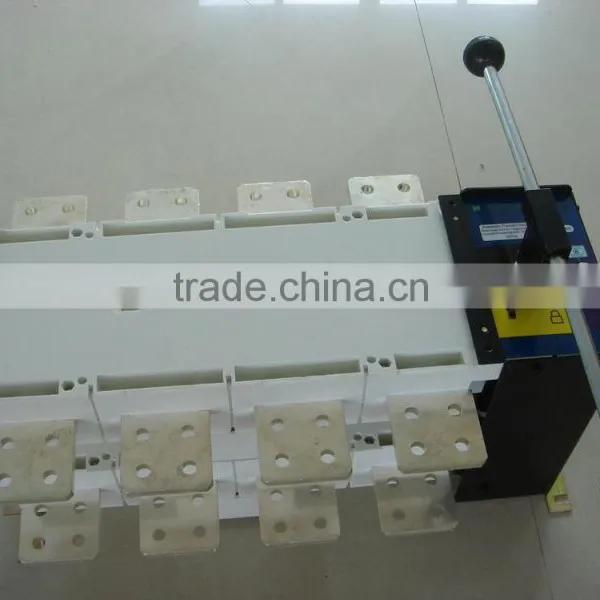

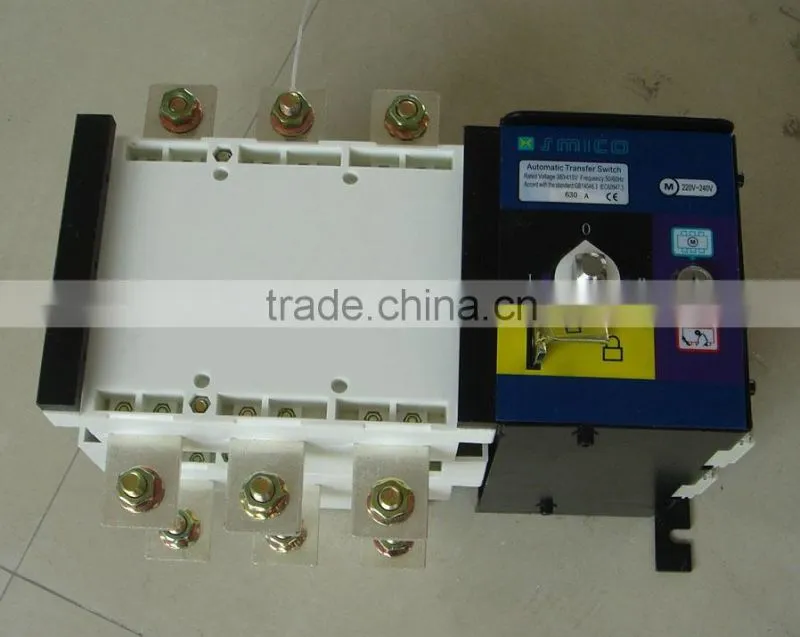

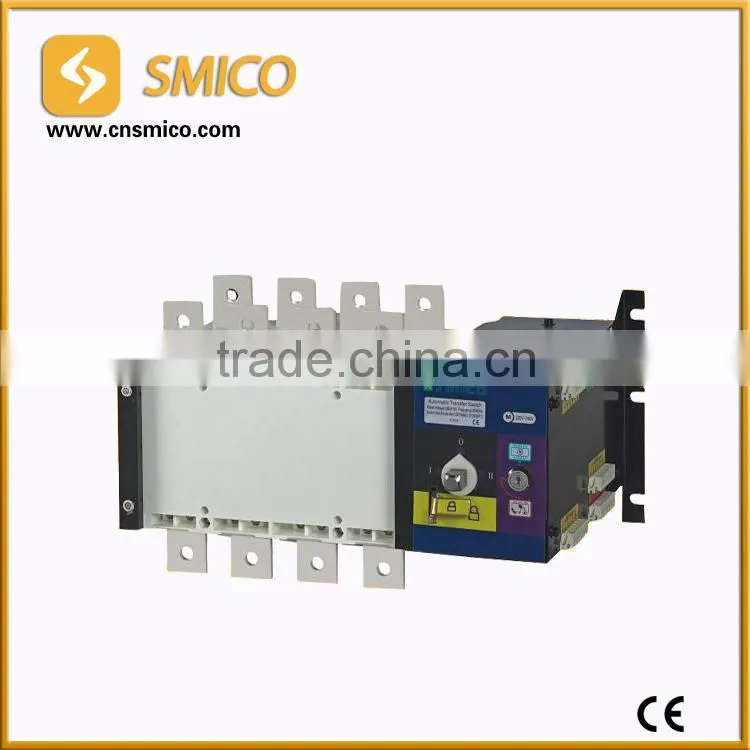

3200A Dual Power Automatic Transfer Switch/change Overswitch

Name: 3200A Dual Power Automatic Transfer Switch/change Overswitch
Brand: OEM, ODM
SKU: 129074043
Availability: InStock

3200A Dual Power Automatic Transfer Switch/change Overswitch thumbnail-1

3200A Dual Power Automatic Transfer Switch/change Overswitch thumbnail-2

3200A Dual Power Automatic Transfer Switch/change Overswitch photo-1

3200A Dual Power Automatic Transfer Switch/change Overswitch photo-2

US$ 100 - 2,000 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

OEM, ODM

Model Number:

SGLD-3200

Contact Supplier Request Quote Chat Now

Zhejiang Smico Electric Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name OEM, ODM

Model Number SGLD-3200

Max. Current 3200A

Max. Voltage 380/415V

Product Description

Automatic transfer switch SGLD (general type):

SGLD series automatic transfer switch suitable for AC50HZ ,rated voltage 380V, DC rated voltage up 220V,rated electric current to 3200A.The switch is used in the infrequent on and off circuit.

Performance characteristics:
1.Full electrical engineering integrity which allows auto-control without external controller
2.The world high-tech logic control circuit with strong anti-jamming and no environmental interference.
3. The mechanism with spring powered accumulator applied in the switch main body, which allows for zero electrical arc by the feeler connection and disconnection.
4. The products have three poles, four poles , and (three poles + on and off neural pole)
5. Current grades can be divided into 100A160A250A630A1000A1250A1600A.2000A2500A3200A
6. 3 control modes(RBC)
7. R. Municipal power supply- Municipal power supply, automatic change and automatic recovery, protection of missed phase.
8. B. 125A up to 630A Municipal power supply-Municipal power supply, automatic change and automatic recovery, over voltage or lower-voltage function.
9. C. Municipal power supply-oil generator, automatic change and automatic recovery. Having the functions of over-voltage or lower-voltage of phase shortage protection and frequency detection.

10. The switches can be padlocked to keep the position status
11. To use key to switch to select operation.

Detailed Images

Rated current Ith		20A	40A	60A	80A	100A	125A	160A	250A	400A	630A	800A	1000A	1250A	1600A	2000A	2500A	3200A
Rated insulation voltage Ui		750V										1000V
Rated concussion withstand voltage Uimp		8000V										1200V
Rated working voltage Ue		AC440V
Rated working current Ie	AC-31A	20	10	63	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
	AC-35A	20	10	63	80	100	125	160	250	400	630	800	1000	1000	1250	2000	2000	2500
	AC-33A	20	10	63	80	100	125	160	250	400	630	800	1000	1000	1000	1250	1250	1250
Rated connection ability		10 Ie
Rated disjunction ability		8 Ie
Rated limit short power		100KA								70KA		100KA		120KA		80KA
Transfer time I-II or II-I		0.45S								0.65S		1.25S				2.45S
Control power voltage		7KV						9KV		13KV		50KV				55KV
Electrical consumption		DC24V, 48V, 110V, AC220V
Rated control voltage	start	300W						325W		355W		400W	440W			600W
	normal	55W						62W		62W		90W	98W			120W
Weight		7.0	7.2	7.2	7.2	7.5	7.5	8	9	16.5	17	32	36	40	49	95	98	135
