Specifications

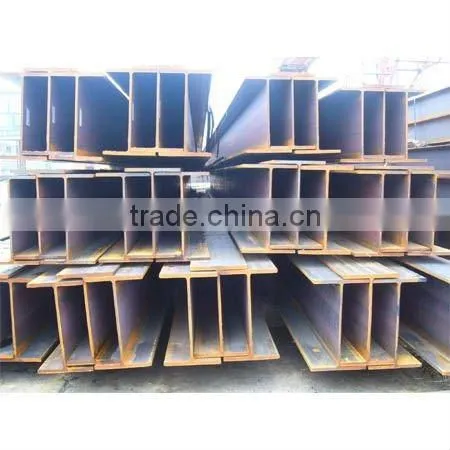

welding machine automatic CNC steel welding machine1.tapered h beam,truck chassis
2. welder:DC1000
1. Automatic CNC steel welding machine is used for steel building and truck production
Many steel and trailer structure manufacturers want to make tapered h beam. Traditional welding is only single seam welding; tapered h beam in traditional welding is complex and low efficient. The machine is special for tapered h beam welding with higher efficiency.
Gantry type, stable running, nice looking and easy operation. Two units of submerged arc welding systems, and flux recyclers, weld the tapered h beam two sides simultaneously.
2. Main character of automatic CNC steel welding machine
-Strong box girders and linear guide ensure welding torch running accurancy
-AC motor at two sides supply 0-3000mm/min running speed
-Fine adjustment available for welding torch position
-Contact type tracing device, works with welding head, includes: one height sensor and transverse sensor
-six axis
-Control welding source, control the seam,and settle the parameters
-Quick return
-Automatic tracing
-Linear guide and screw for lifting of welding torch
3.Parameter of automatic CNC steel welding machine
Rail span |
3000mm |
H beam height |
200-1500mm |
H beam width |
120-600mm |
Taper angle |
≤300 |
Effective welding length |
≤15000mm |
Rail length |
20000mm |
Total width of machine |
3900mm |
Total length of machine |
2000mm |
Distance of welding torch |
≤1600mm |
Welding wire dia |
φ3~φ5 |
Rapid speed |
3000mm/min |
Welding speed |
250-1000mm/min |
Capacity of wire reel |
>25kg per pc |
Capacity of flux pin |
100L |
Tracing accuracy |
+-0.5mm |
Driven mode |
Dual drive |
Welding source |
DC1000A, Lincoln,USA,2Units |
4.Factory capability: to make sure good fitting and lasting life of the machine,we do:
- All mechanical key parts are processed on our own advanced machinery
-All parts are inspected carfully before assembling
5. Professional package and timely shipment of automatic CNC steel welding machine
6.Factory real picture
