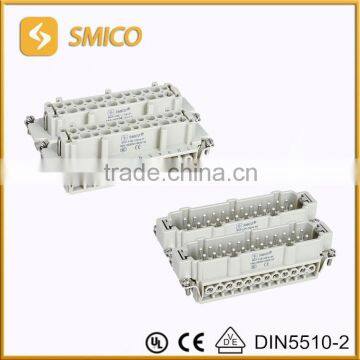

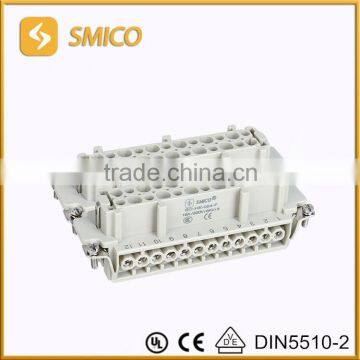

HE-048 Germany Connector Heavy Duty Connector
SO-HE-048-M/F
Heavy-duty connectors are used whenever there is a need for a secure, simple and time-saving assembly of machinery and facilities. During the heavy-duty connector development, SMICO adopts the most advanced concepts and technologies with professional research staffs’ support who enable us to provide clients with high-quality heavy-duty connectors.
Specifications
| Working current | 16A |
| Working Voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Insulation resistance | ≥1010 Ω |
| Flammability acc.to (UL94) | Polycarbonate |
| limiting temperature | Vo |
| Mechanical working life | ≥ 500 |
| Working voltage acc.to UL/CSA | 600v |
Contacts
| Material | Copper alloy |
| Surface | Silver plated |
| Contact resistance | ≤1m Ω |
| Terminal | Screw terminal |
| Wire gauge | 1.0-2.5mm2(AWG18-14) |
| Screw terminal tightening | 0.5Nm |
| Stripping Length | 7-9mm |
Dimensions

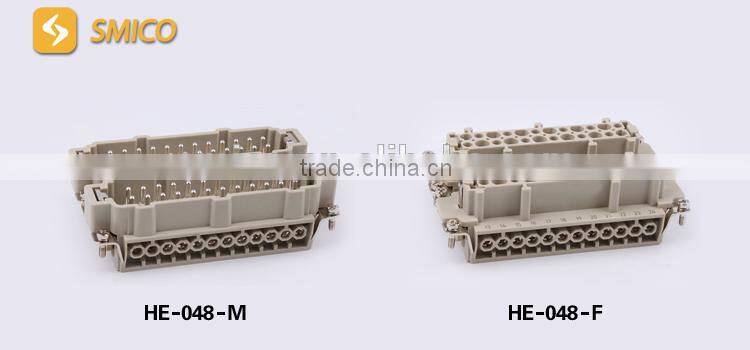

SO-HE-048-M/SO-HE-048-F

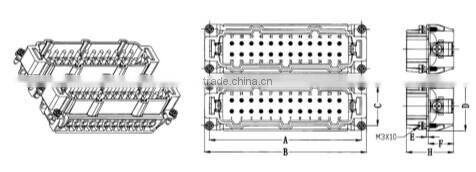

SO-HE-048-M
| Number of contacts | A | B | C | D | E | F | H |
| SO-HE-048 | 104 | 111 | 27 | 34 | 1.2 | 17.3 | 32.4 |

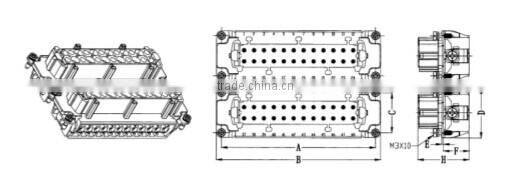

SO-HE-032-F
| Number of contacts | A | B | C | D | E | F | H |
| SO-HE-048 | 104 | 111 | 27 | 34 | 1.2 | 17.3 | 34.6 |
Panel Cut out for inserts
for use without hoods/housings
| Size | A | B |
| SO-H48B | 104 | 95 |
