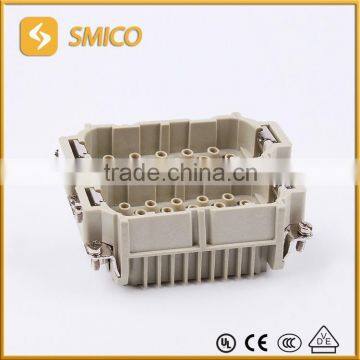

High Quality Antique Heavy Duty Multipin Connector
US$ 2 - 3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SMICO
Model Number:
SO-HD-080-MC/FC Heavy duty multipin connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40 Pole Harting Equivalent Connector With High QualityUS$ 2 - 3MOQ: 1 Piece -
HDC High-security Waterproof Connectors With Multiple FunctionsUS$ 2 - 3MOQ: 1 Piece
-
HE-016 HARTING Equivalent Male Female ConnectorUS$ 2 - 3MOQ: 1 Piece
-
Smico HE-024 500V Injection Molding Machine ConnectorUS$ 2 - 3MOQ: 1 Piece
-
Male Female 6 Pins ConnectorUS$ 2 - 3MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
SMICO
Model Number
SO-HD-080-MC/FC Heavy duty multipin connector
Type
DIN
Application
Automotive
Gender
Other, Male/Female
High quality antique heavy duty multipin connector
SO-HD-080-MC/FC

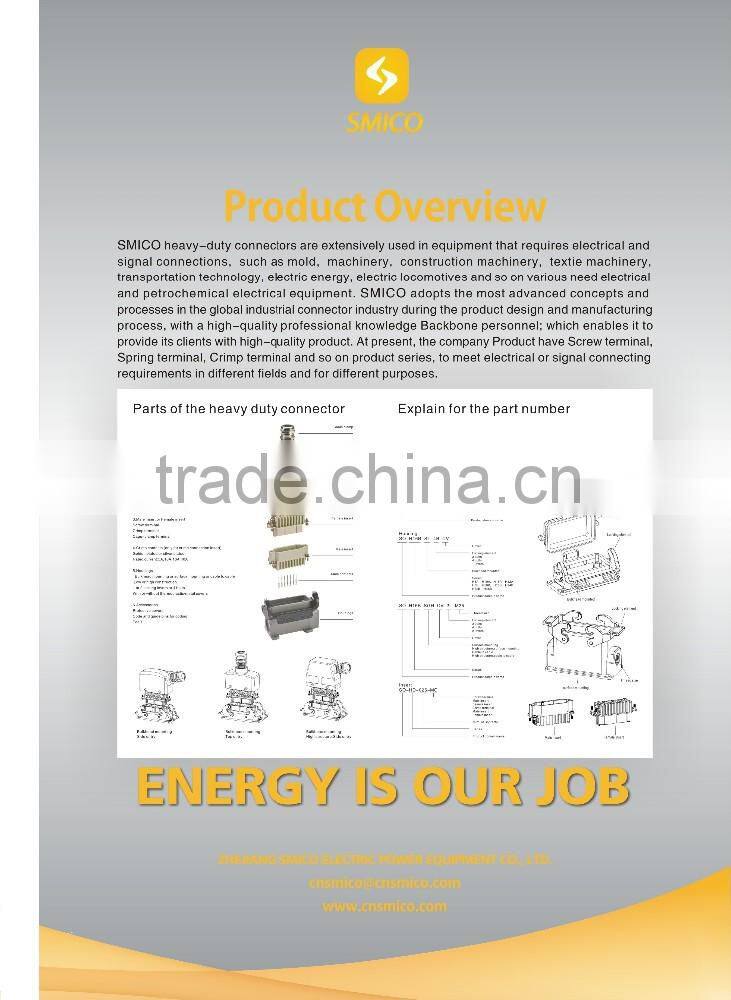

Product Description
Heavy-duty connectors are used whenever there is a need for a secure, simple and time-saving assembly of machinery and facilities. During the heavy-duty connector development, SMICO adopts the most advanced concepts and technologies with professional research staffs’ support who enable us to provide clients with high-quality heavy-duty connectors.
Specifications
| Working current | 10A |
| Working Voltage | 250V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| Insulation resistance | ≥500 |
| Flammability acc.to (UL94) | Polycarbonate |
| limiting temperature | Vo |
| Mechanical working life | Above 500 |
| Working voltage acc.to UL/CSA | 600v |
Contacts
| Material | Copper alloy |
| Surface | Gold plated/Silver plated |
| Contact resistance | ≤300m Ω |
| Terminal | Crimp terminal |
| Wire gauge | 0.14-2.5mm2(AWG26-14) |
Dimensions

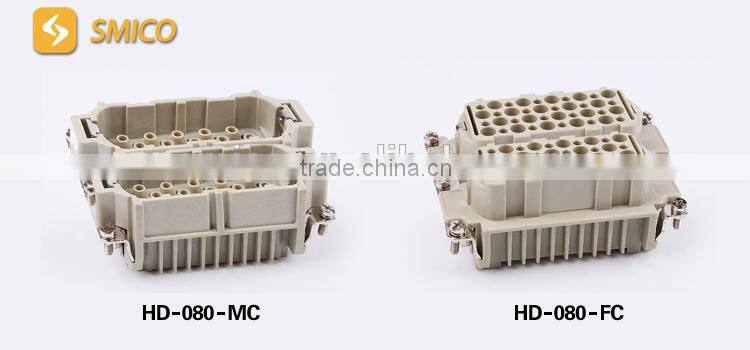

SO-HD-080-MC/SO-HD-080-FC

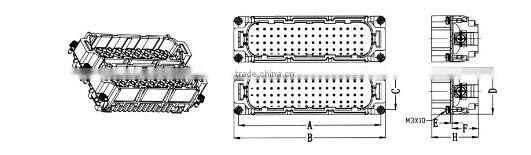

SO-HD-080-MC
| Number of contacts | A | B | C | D | E | F | H |
| SO-HD-050 | 77.5 | 84.5 | 27 | 34 | 1.2 | 19 | 37 |

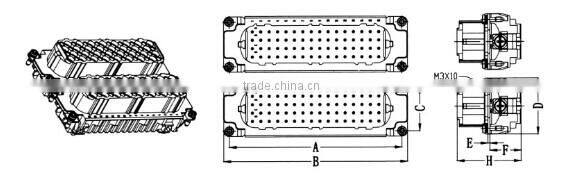

SO-HD-080-FC
| Number of contacts | A | B | C | D | E | F | H |
| SO-HD-050 | 77.5 | 84.5 | 27 | 34 | 1.2 | 16.8 | 37.2 |
Note:Crimp terminal of 10A should order contacts pins seperately

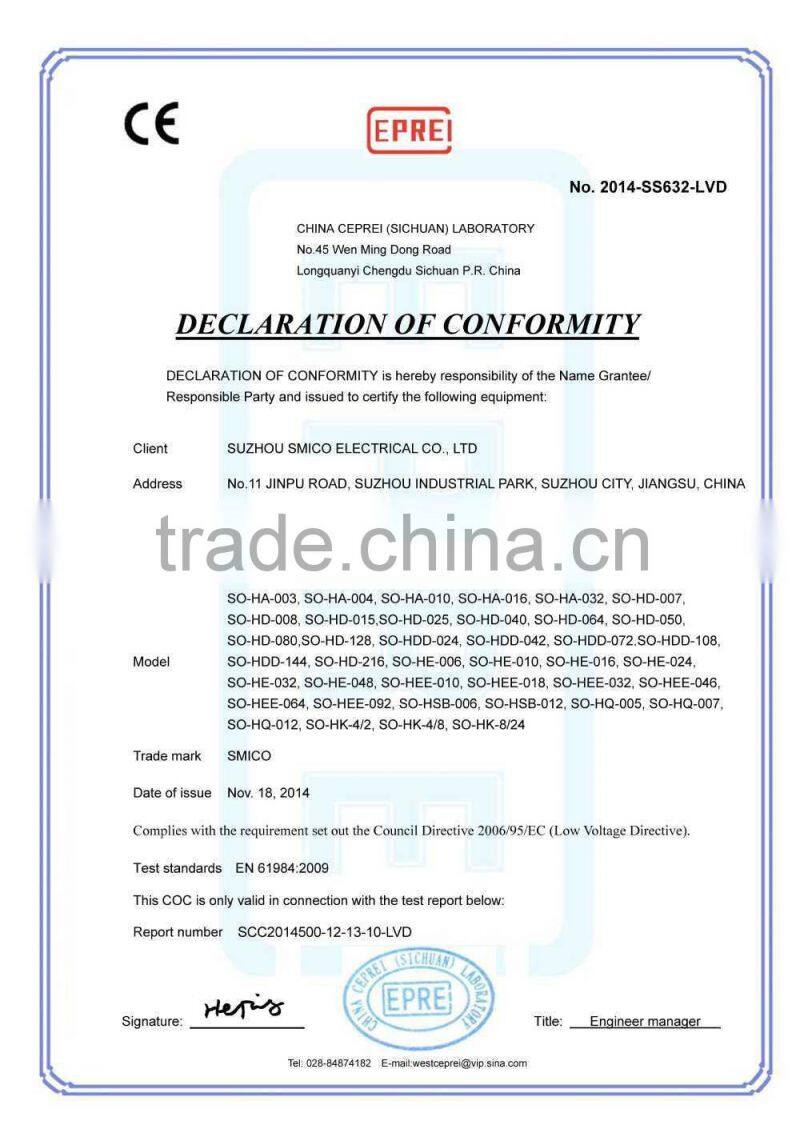

CE CERTIFICATE
CLASSIFICATION of the SMOKE TOXICITY according to DIN-5510-2

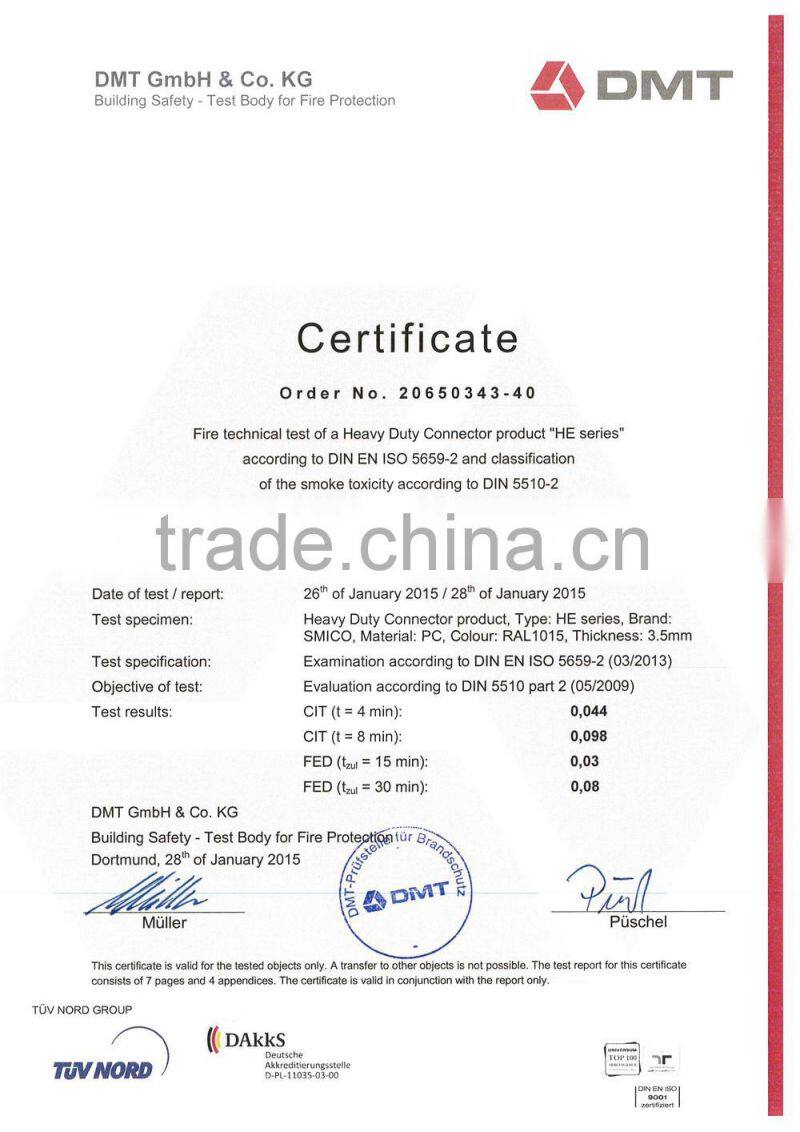

Fire Technical Test according to DIN EN ISO5659-2
