Specifications
1.304 SUS grade stainless steel2.Semi-auto channel management
3.Stable performance
4. Mutiple reading mode

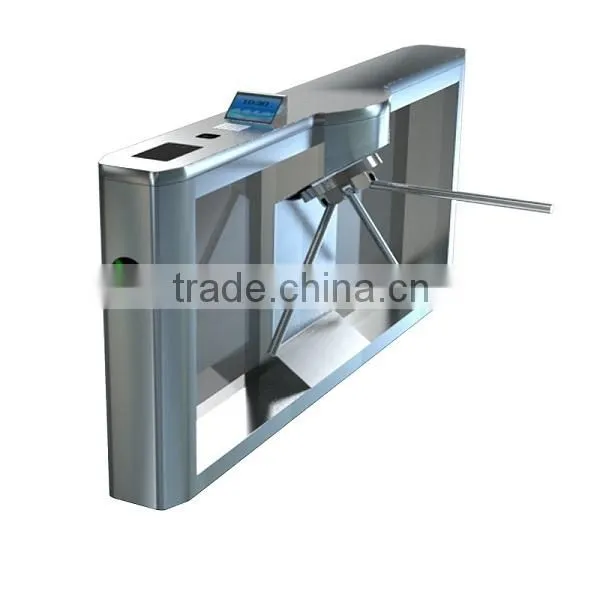

CE Approved Pedestrian Access Control Half Height Bridge Type Tripod Turnstile
Competitive Advantage:
1.1.5mm thickness 304 stainless steel
2. RFID card (IC/ID), Barcode, fingerprint, control accepted
3. CE and ISO 9001-2008 certified
4. OEM and ODM are welcome.
Specifications:
Name |
Tripod Turnstile |
Model |
WQH-TS14 |
Housing Size |
1400x280x1000mm |
Passing speed |
30 person/min |
Housing Material |
304 grade stainless steel optional |
Working Voltage |
AC220V±10V, 50HZ |
Net Weight |
60kg |
Motor voltage |
220V |
Gross Weight |
65kg |
Rated Power |
80W |
Control type |
IC/ID/Barcode control ,QR code, Ticket, face recognition, fingerprint accepted |
Transmission |
Sine Linkage |
Boom length |
≤700mm |
Frequency |
50~60Hz |
Logic voltage |
24v |
Working temperature |
-45°C--+80°C |
Working mode |
one directional or |
Operating humidity |
≤90% non-condensing |
|
Communication Interface |
RS485/RS232; TCP/IP |
Operation life |
≥5 million times |
Description:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and
reliable.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on, turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, 5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.
5. RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also
computer far control and management can be realized by computer.
8. It will count the pedestrian and will show the number on LED display directly. (LED is optional)
9. LED direction guide
10. Card reading memory or card reading without memory function can be set.
11. If working with software, the total-in-population can be set to satisfy special request.
12. Re-position function.
13. Card mounting is available.
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate.
15. Extend:
1), Voice prompt
2), dual color, 4 words LED display
3), fingerprint card
4), spit vote
5), remote mode
16, Audio prompt function is optional.
17, Effective railing barrier opening signal with memory and without memory can be set (adjustable).
